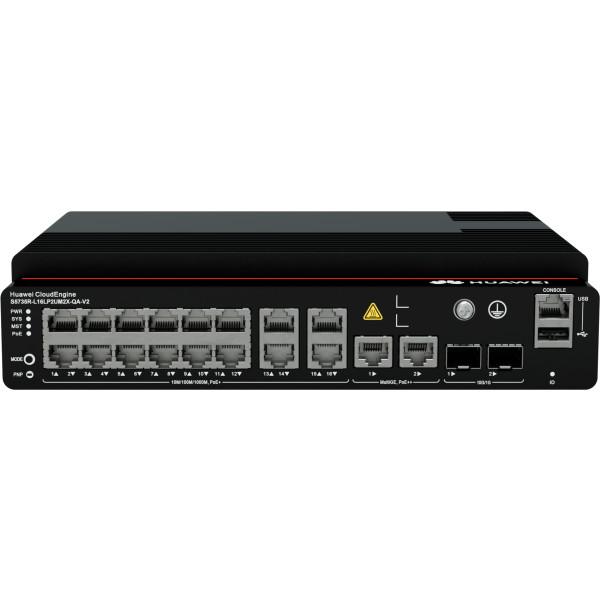

Huawei S5735R Switch : 16-Port PoE++ & 10G Uplink Cloud-Managed Gigabit Switch
Huawei S5735R Switch : 16-Port PoE++ & 10G Uplink Cloud-Managed Gigabit Switch
Specifications
Brand Name :
Huawei
Model Number :
S5735R-L16LP2UM2X-QA-V2
Redundancy Protocols :
VRRP, BFD, RRPP
Forwarding Rate :
95.2 Mpps
Stacking Bandwidth :
160 Gbps
Stacking Capability :
Up to 9 switches
Qos Support :
IEEE 802.1p
Quantity :
Ensured
Transmission Rate :
10/100/1000Mbps
Model :
S5720-28X-PWR-SI-AC
Port :
24
Qos :
Supports 8 queues per port
Poe :
Supports PoE+
Forwarding Performance :
56 Gbit/s
Port Quantity :
24
Redundancy Support :
VRRP, HRP, BFD
Description

Huawei S5735R Switch : 16-Port PoE++ & 10G Uplink Cloud-Managed Gigabit Switch

The Huawei S5735R-L16LP2UM2X-QA-V2 is a high-performance Gigabit Ethernet switch designed for enterprise and campus networks, offering Power over Ethernet (PoE++), 10G uplink connectivity, and cloud-based management for scalable deployments.

Key Features & Benefits

✔ High-Power PoE++ Support – 16x Gigabit Ethernet ports with IEEE 802.3bt (PoE++), delivering up to 30W per port to power IP phones, wireless APs, and IP cameras without extra cabling.
✔ Dual 10G SFP+ Uplinks – 2x 10Gbps fiber ports for high-speed backbone connectivity, supporting long-distance transmission (up to 80km with proper modules).
✔ Cloud & SDN Management – Compatible with Huawei CloudCampus, enabling zero-touch provisioning, centralized monitoring, and AI-driven optimization for simplified IT operations.
✔ Enterprise-Grade Reliability – Features ERPS (G.8032) ring protection (<50ms failover), 8KV surge protection, and energy-efficient design with Huawei’s proprietary chips.
✔ Enhanced Security – Supports MACsec encryption, port isolation, and ACL policies to meet enterprise security compliance (e.g., China’s MLPS Level 2).

Technical Specifications

Category Details
Ports 16x 10/100/1000BASE-T (PoE++), 2x 10G SFP+
PoE Budget 240W total, 30W per port (802.3bt)
Switching Capacity 336 Gbps
Forwarding Rate 51 Mpps
Management Web, CLI, SNMP, Huawei eSight/CloudCampus
Security ACL, MACsec, DHCP Snooping, IP Source Guard
Dimensions 1U rack-mountable (442 x 220 x 43.6 mm)

Ideal Use Cases

  • Smart Offices: Power and connect IP phones, Wi-Fi 6 APs, and IoT devices.

  • Surveillance Networks: PoE++ for 4K IP cameras + 10G uplinks for video backhaul.

  • Retail/Education: SDN-enabled branch networking with plug-and-play deployment.

Why Choose This Switch?
The Huawei S5735R combines high-power PoE, 10G scalability, and cloud automation, making it a future-proof choice for medium-sized enterprises seeking reliable, secure, and easy-to-manage switching solutions.
