Specifications
Brand Name :
Huawei
Model Number :
S5755-H24N4Y-A
Product Size :
2U
Products Status :
Stock
Layer Support :
Layer 2 and Layer 3 switching
Ports :
28
Router :
WS-C2960XR-24TS-I WS-C2960XR-48TS-I
Weight :
3.2 kg
Network Protocols :
BGP, OSPF, EIGRP, IS-IS, and more
Skype Id :
album.kevin
Port Type :
10/100/1000BASE-T
Redundancy Support :
VRRP, HRP, BFD
Operating System :
Huawei Versatile Routing Platform (VRP)
Vlans :
4,094
Communication Mode :
Full-Duplex & Half-Duplex
Operating Temperature :
0°C to 45°C
Description

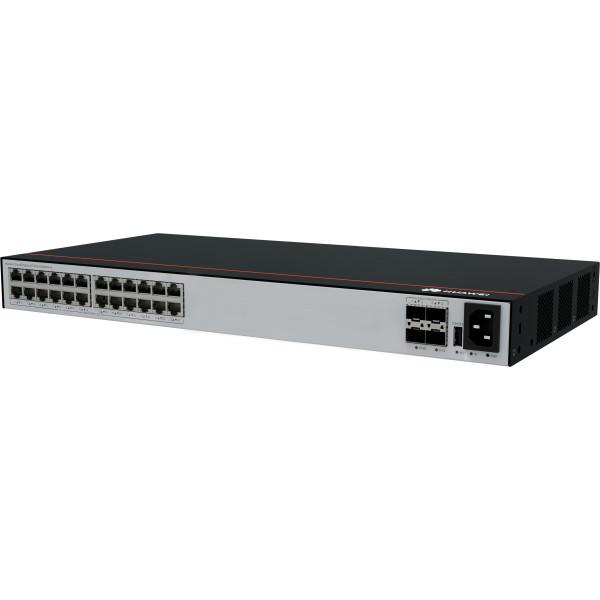

High-Performance Huawei Switch With 10G Uplink & AI O&M - S5755-H24N4Y-A

The Huawei S5755-H24N4Y-A is a next-generation Gigabit Ethernet switch designed for enterprise and data center networks, delivering high-speed connectivity, intelligent management, and advanced security. With 24x 1G ports and 4x 10G SFP+ uplinks, it ensures seamless scalability for bandwidth-intensive applications like cloud computing, video surveillance, and VoIP.

Key Features & Benefits

✔ 10G Uplink & High Performance – Supports 10G fiber uplinks for smooth aggregation and backbone connectivity, with a 126 Mpps forwarding rate for zero latency.
✔ AI-Driven O&M – Huawei’s Telemetry and eSight integration enables real-time monitoring, predictive analytics, and automated troubleshooting.
✔ Flexible Stacking (iStack) – Combine up to 16 switches into a single logical device for simplified management and redundancy.
✔ Enterprise-Grade Security – Features 802.1X, MAC/Port authentication, ACLs, and anti-DDoS for secure access control.
✔ Energy-Efficient Design – Low power consumption (<50W) with dynamic power adjustment for eco-friendly operations.

Technical Specifications (S5755-H24N4Y-A)

Parameter Specification
Ports 24x 1G RJ45 + 4x 10G SFP+
Switching Capacity 256 Gbps
Forwarding Rate 126 Mpps
Power Consumption <50W (typical)
Security Features ACLs, 802.1X, MAC/Port Auth, SSH/HTTPS
Management CLI, Web, eSight, SNMPv3
Operating Temp. 0°C to 45°C

Ideal Use Cases

✅ Enterprise Networks – Reliable Gigabit access + 10G aggregation for offices and campuses.
✅ Data Centers – Low-latency, high-throughput connectivity for servers and storage.
✅ Smart Surveillance – Handles high-density IP cameras with QoS prioritization.

Why Choose This Huawei Switch?

The S5755-H24N4Y-A combines future-proof 10G scalability, AI-powered O&M, and robust security, making it a cost-effective solution for modern networks. Its stacking capability and energy efficiency further reduce TCO (Total Cost of Ownership).

Upgrade your network today with Huawei’s high-performance switching technology!
