24-Port Gigabit Huawei Switch With SFP Uplinks & Web Management S1730S-S24T4S-QA3
24-Port Gigabit Huawei Switch With SFP Uplinks & Web Management S1730S-S24T4S-QA3
24-Port Gigabit Huawei Switch With SFP Uplinks & Web Management S1730S-S24T4S-QA3
24-Port Gigabit Huawei Switch With SFP Uplinks & Web Management S1730S-S24T4S-QA3
24-Port Gigabit Huawei Switch With SFP Uplinks & Web Management S1730S-S24T4S-QA3
24-Port Gigabit Huawei Switch With SFP Uplinks & Web Management S1730S-S24T4S-QA3
Specifications
Brand Name :
Huawei
Model Number :
S1730S-S24T4S-QA3
Network Standards :
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Skype Id :
album.kevin
Qos Features :
SP, WRR, DRR, ACL, CAR, PQ, WRED, RED, WFQ, DSCP remarking, 802.1p priority, traffic shaping
Operating System :
Huawei Versatile Routing Platform (VRP)
Memory Capacity :
2 GB
Poe Power Budget :
370 W
Memory Size :
1 GB
Stackable :
Yes/No
Vlan Support :
IEEE 802.1Q, VLAN mapping, GVRP, MUX VLAN
Security Features :
Port security, MAC address authentication, 802.1X authentication, RADIUS, TACACS+, ACL
Port Speed :
10/100/1000 Mbps
Poe Support :
Yes
Vlan Standards :
IEEE 802.1Q
Warranty :
1 year
Description

24-Port Gigabit Huawei Switch With SFP Uplinks & Web Management S1730S-S24T4S-QA3

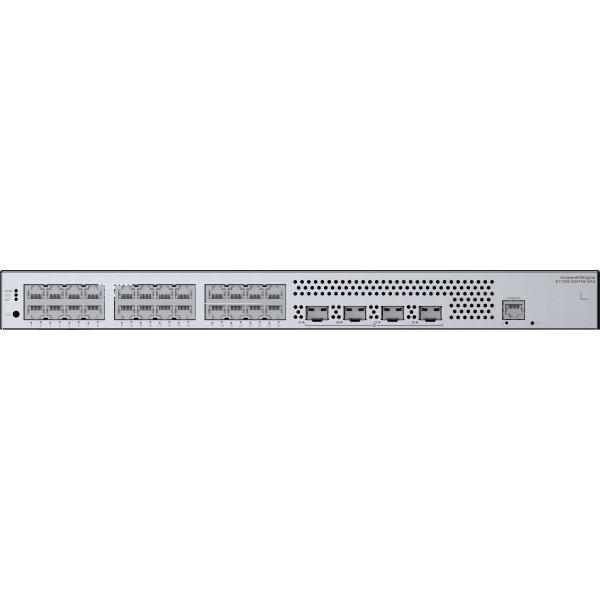

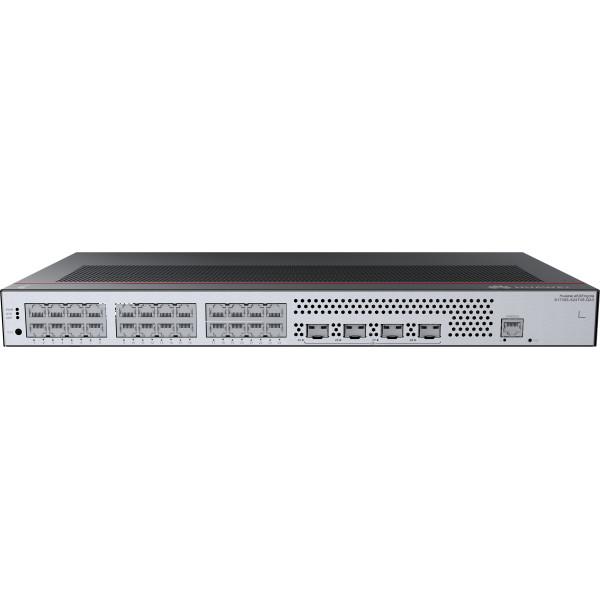

The Huawei S1730S-S24T4S-QA3 is a cost-effective, Layer 2 Gigabit Ethernet switch designed for small businesses, offices, and campus networks. It delivers high-speed connectivity with 24× 10/100/1000BASE-T ports and 4× Gigabit SFP uplink slots, enabling flexible fiber or copper uplinks for scalable network expansion.

Key Features & Benefits

✅ High-Speed Connectivity – 24× Gigabit Ethernet ports provide high-density access for PCs, IP phones, and cameras, while 4× SFP slots support fiber uplinks (up to 40km with optional modules).
✅ Easy Management – Web-based GUI and CLI support for effortless configuration. Compatible with CloudCampus for remote monitoring.
✅ Enterprise-Grade Security – Features 802.1X authentication, MAC address binding, and port isolation to prevent unauthorized access.
✅ Optimized Performance – Supports QoS prioritization, STP/RSTP, and broadcast storm control for stable VoIP and video traffic.
✅ Silent & Energy-Efficient – Fanless design (0dB noise) and auto-sleep ports reduce power consumption (typical <20W).

Technical Specifications (Parameter Table)

Model Huawei S1730S-S24T4S-QA3
Ports 24× 10/100/1000BASE-T, 4× 100/1000BASE-X SFP
Switching Capacity 56 Gbps
Forwarding Rate 41.7 Mpps
MAC Address Table 8K entries
VLAN Support 4K VLANs, Port-based/Protocol-based
Management Web, CLI, SNMP, CloudCampus compatible
Power Consumption <20W (typical)
Operating Temperature -5°C to 45°C
Dimensions 442×220×43.6mm (1U height)

Ideal Use Cases

✔ Office Networks – Reliable connectivity for workstations, printers, and VoIP phones.
✔ Surveillance Systems – Supports IP cameras with Gigabit bandwidth.
✔ Retail & Education – Affordable plug-and-play deployment for small-scale networks.
