GPHF GPLF GPUF GPSF 16 Port GPON OLT Interface Board For SMARTAX Olt MA5800 X2 X7 X15 X17
GPHF GPLF GPUF GPSF 16 Port GPON OLT Interface Board For SMARTAX Olt MA5800 X2 X7 X15 X17
GPHF GPLF GPUF GPSF 16 Port GPON OLT Interface Board For SMARTAX Olt MA5800 X2 X7 X15 X17
GPHF GPLF GPUF GPSF 16 Port GPON OLT Interface Board For SMARTAX Olt MA5800 X2 X7 X15 X17
GPHF GPLF GPUF GPSF 16 Port GPON OLT Interface Board For SMARTAX Olt MA5800 X2 X7 X15 X17
GPHF GPLF GPUF GPSF 16 Port GPON OLT Interface Board For SMARTAX Olt MA5800 X2 X7 X15 X17
GPHF GPLF GPUF GPSF 16 Port GPON OLT Interface Board For SMARTAX Olt MA5800 X2 X7 X15 X17
GPHF GPLF GPUF GPSF 16 Port GPON OLT Interface Board For SMARTAX Olt MA5800 X2 X7 X15 X17
GPHF GPLF GPUF GPSF 16 Port GPON OLT Interface Board For SMARTAX Olt MA5800 X2 X7 X15 X17
GPHF GPLF GPUF GPSF 16 Port GPON OLT Interface Board For SMARTAX Olt MA5800 X2 X7 X15 X17
Specifications
Brand Name :
Huawei
Model Number :
GPHF GPLF GPUF GPSF
Place of Origin :
china
MOQ :
1 unit
Price :
1020-1200 USD
Payment Terms :
L/C,D/A,D/P,Western Union,T/T,MoneyGram
Supply Ability :
1000 units
Delivery Time :
3-7work days
Packaging Details :
Original carton
Application :
FTTH FTTxFTTB Network
Type :
OLT
Use :
fiber network
Ports :
16 Ports
Description

GPHF GPLF GPUF GPSF 16 Port GPON OLT Interface Board For SMARTAX Olt MA5800 X2 X7 X15 X17

Product Description

HW GPHF GPLF GPUF GPSF Service Board is a 16-port GPON interface board for HW MA5800 series. The MA5608T/MA5800T/MA5603T/MA5600T, functioning as integrated optical-copper access equipment, provides the integrated broadband and narrowband access and FTTx optical access services that feature high rate, high bandwidth, and high quality. It can function as an OLT, MSAN, or IP DSLAM.

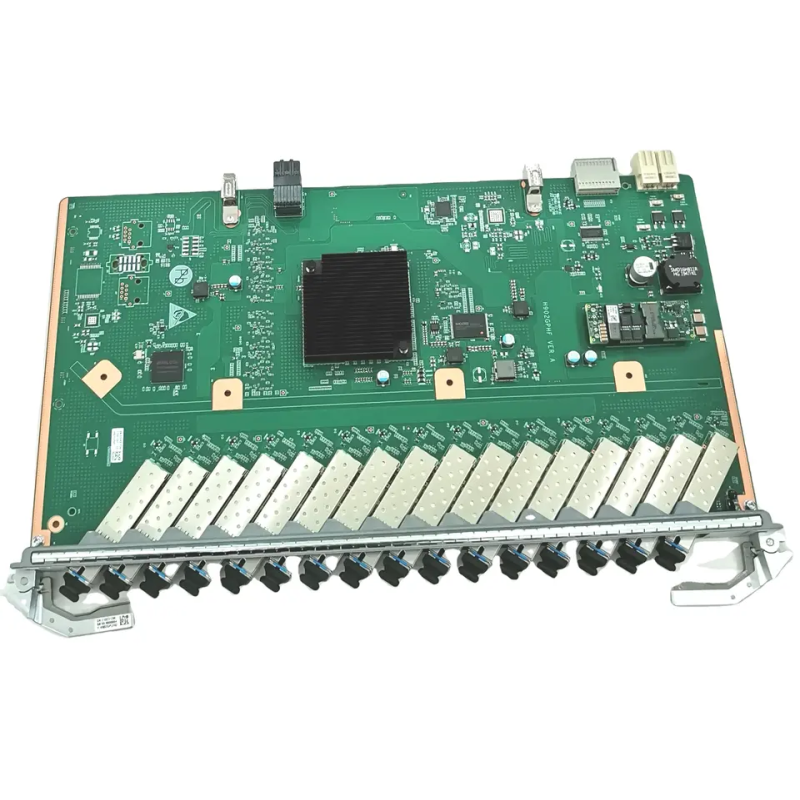

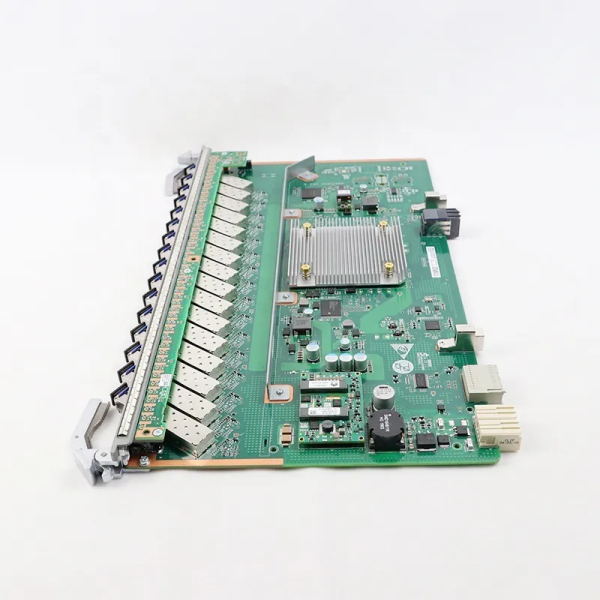

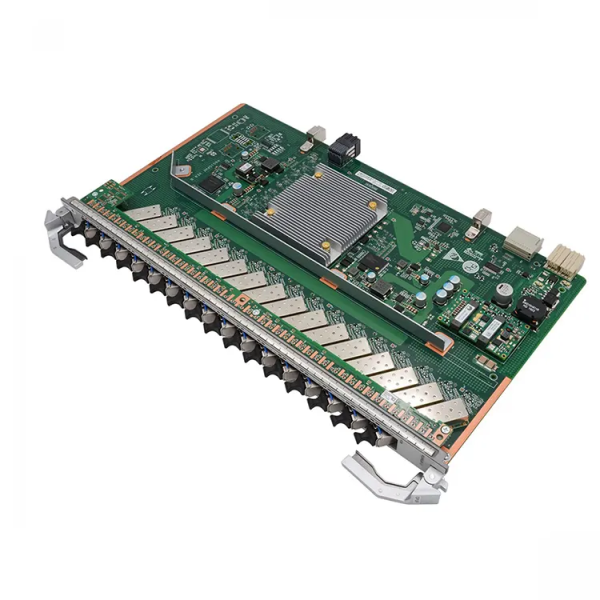

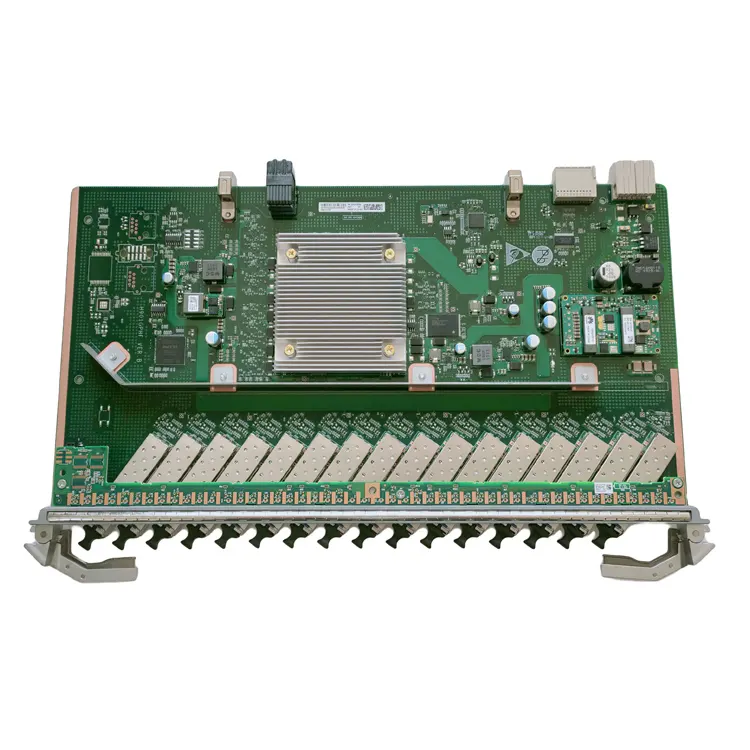

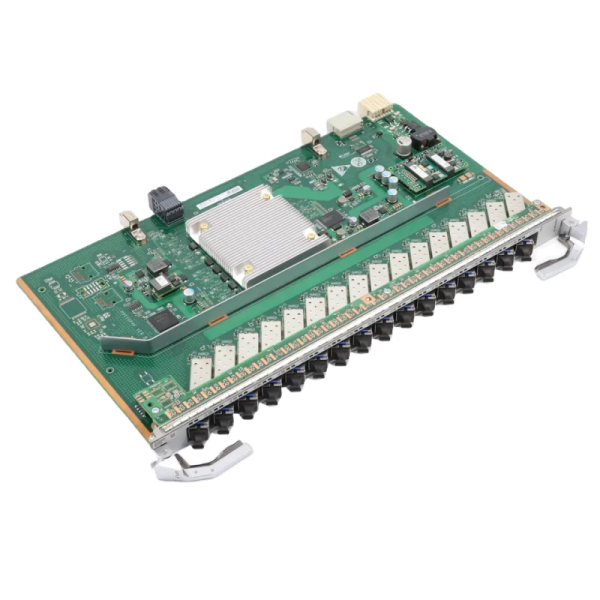

Details Images

GPHF GPLF GPUF GPSF 16 Port GPON OLT Interface Board For SMARTAX Olt MA5800 X2 X7 X15 X17


GPHF GPLF GPUF GPSF 16 Port GPON OLT Interface Board For SMARTAX Olt MA5800 X2 X7 X15 X17

Specification

Board Name
GPHF GPLF GPUF GPSF
Port No.
16 GPON SFP ports
Split Ratio
A maximum of 1:128 split ratio
SFP
Class B+/C+/C++ one-fiber bi-directional optical modules
Traffic-Shaping
ONU-based traffic shaping
Temperature
Temperature reading and high-temperature alarm
Board Protection
Automatic power-off in case of high temperature
FEC
Upstream and downstream forward error correction (FEC)
Networking
L3VPN and D-CCAP networking
ONU
Rogue ONU detection
CCAP
L3VPN and D-CCAP networking
RSS
Received signal strength indicator (RSSI) detection and optical signal transmission control of the optical module
