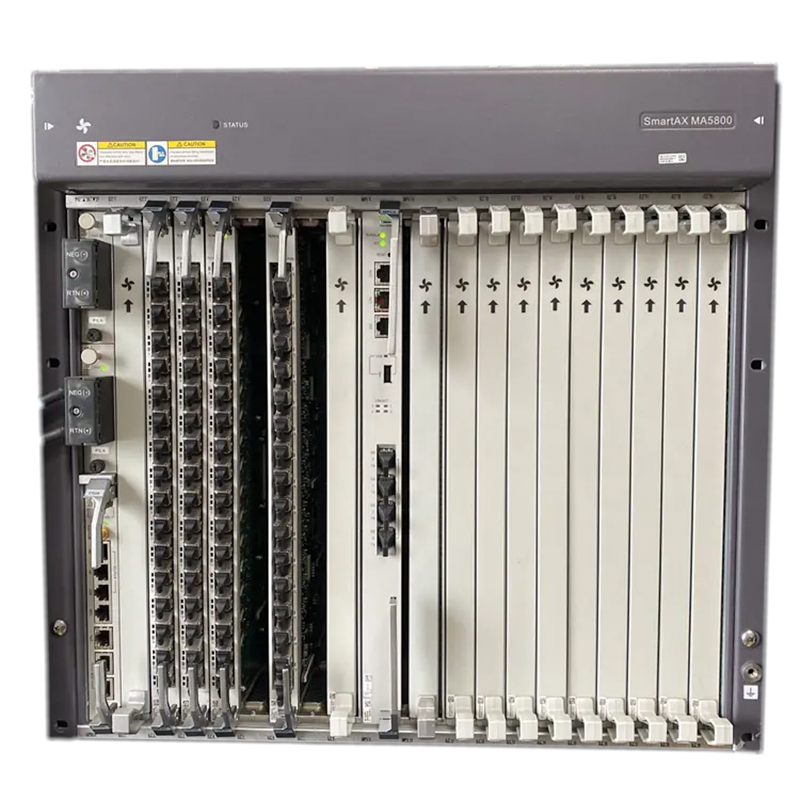

MA5800-X17 SmartAX MA5800 series GPON/EPON OLT
MA5800-X17 SmartAX MA5800 series GPON/EPON OLT
MA5800-X17 SmartAX MA5800 series GPON/EPON OLT
MA5800-X17 SmartAX MA5800 series GPON/EPON OLT
MA5800-X17 SmartAX MA5800 series GPON/EPON OLT
MA5800-X17 SmartAX MA5800 series GPON/EPON OLT
MA5800-X17 SmartAX MA5800 series GPON/EPON OLT
MA5800-X17 SmartAX MA5800 series GPON/EPON OLT
Specifications
Brand Name :
Huawei
Model Number :
MA5800-X17
Place of Origin :
china
MOQ :
1 unit
Price :
2980-3500 USD
Payment Terms :
L/C,D/A,D/P,Western Union,T/T,MoneyGram
Supply Ability :
1000 units
Delivery Time :
3-7work days
Packaging Details :
Original carton
power supply method :
DC power supply (-48V/-60V DC), supports dual backup
Maximum input current :
40 A
Operating Temperature :
-40℃ ～ +65℃
Description

MA5800-X17 SmartAX MA5800 series GPON/EPON OLT

Product Description

The industry’s first 40 Gbit/s-capacity Next-Generation Optical Line Terminal (NG-OLT). HW SmartAX MA5800 multiple-service access module employs a distributed architecture to support ultra-broadband, Fixed Mobile Convergence (FMC) services, and smart capabilities, such as SDN-based virtualization.

MA5800’s programmable Network Processor (NP) chip set accelerates the roll-out of new services, catering to the demand for differentiated services, including partitioning of wholesale and retail service providers.


Details Images


MA5800-X17 SmartAX MA5800 series GPON/EPON OLT

MA5800-X17 SmartAX MA5800 series GPON/EPON OLT

Specification

Instructions
MA5800-X17
MA5800-X15
MA5800-X7
MA5800-X2
Compatible cabinets
N63E-22
No matching cabinets
N63E-22
N66E-22
N63E-22
Board configuration
Main control board slot: 9,10
Main control board slot: 8,9
Main control board slot: 8,9
Main control board slot: 3,4
Service board /uplink board slot:1~8, 11 ~ 19
Service board / uplink board slot:1~7,10~17
Service board /uplink board slot:1~7
Service board /uplink board slot:1~2
Common Interface Board Slot: 0 Power Interface
Common Interface Board Slot: 0 Power Interface
Common Interface Board Slot: 0 Power Interface
Common interface board:Not supported Power Interface
Board Slot: 20,2
Board Slot: 18,19
Board Slot: 10,11
Board Slot: 0
Width x Depth x Height (mm)
11U high, 21 inches wide Without the mounting brackets: 493x287x486 With a lug:535x287x486
11U tall, 19 inches wide Without hanging ears: 442x287x486 With a lug:482.6x287x486
6U tall, 19 inches wide Without hanging ears: 442x268.7x264 With IEC mounting ears: 482.6x268.7x264 With ETSI mounting brackets:
535x268.7x264

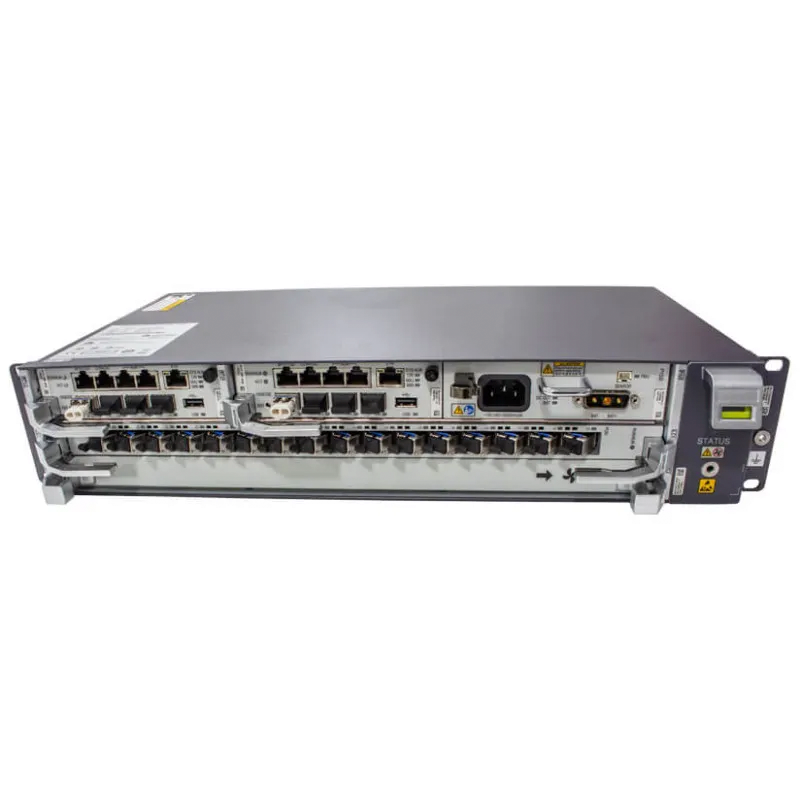

2U tall, 19 inches wide Without the mounting brackets: 442x268.7x88 With IEC mounting ears:482.6x268.7x88 With ETSI mounting
brackets:535x268.7x88
Max. weight (with mounting ears)
45kg
35kg
26kg
9.4kg
Max. input current
60A
60A
40A
DC power supply: 20A AC power supply: 10A
Power supply
DC power supply
DC power supply (dual backup) AC power supply + battery backup
Working voltage range
-38.4V~-72V DC
DC power supply: -38.4V ~-72V AC power supply: 100V ~ 240V
Rated voltage
-48V/-60V
DC power supply: -48V / -60V AC power supply:110V / 220V
