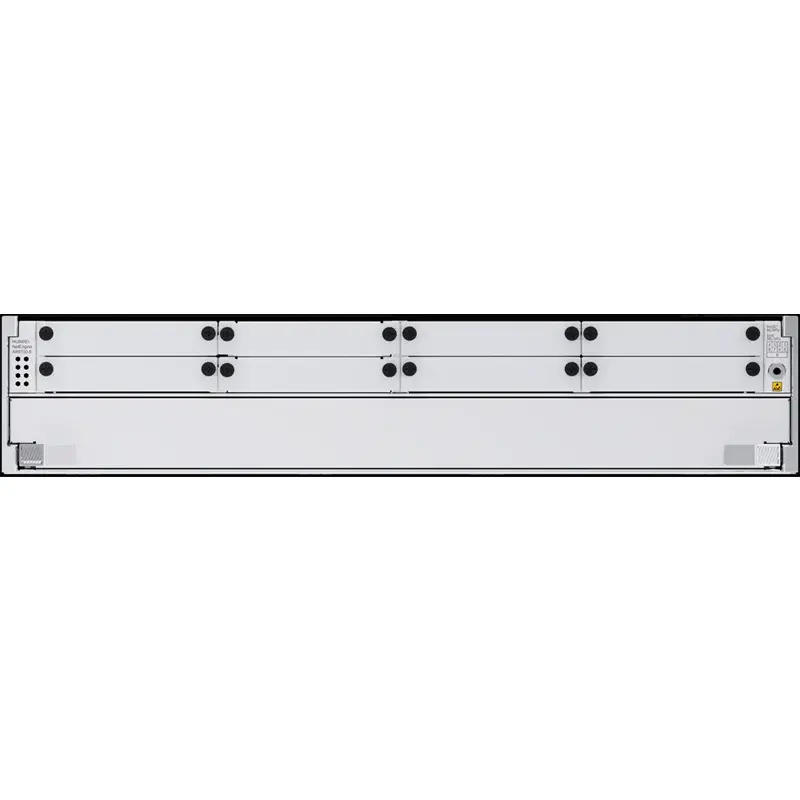

AR8700-8 02355LFN 1x40GE QSFP+ 8x10GE SFP+ 8xGE Multicore Campus Router
AR8700-8 02355LFN 1x40GE QSFP+ 8x10GE SFP+ 8xGE Multicore Campus Router
AR8700-8 02355LFN 1x40GE QSFP+ 8x10GE SFP+ 8xGE Multicore Campus Router
AR8700-8 02355LFN 1x40GE QSFP+ 8x10GE SFP+ 8xGE Multicore Campus Router
AR8700-8 02355LFN 1x40GE QSFP+ 8x10GE SFP+ 8xGE Multicore Campus Router
AR8700-8 02355LFN 1x40GE QSFP+ 8x10GE SFP+ 8xGE Multicore Campus Router
Specifications
Product Name :
Enterprise Campus Multicore Router
Part Number :
02355LFN
Application :
Telecommunication
Wi-Fi Transmission Standard: :
802.11ac
SDRAM :
4 G
Brand Name :
Huawei
Model Number :
AR8700-8
Certification :
CQC
Place of Origin :
China
MOQ :
1 unit
Price :
3260-5400USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,
Supply Ability :
1000 units
Delivery Time :
7 work days
Packaging Details :
Original brand carton
Description

AR8700-8 02355LFN 1x40GE QSFP+ 8x10GE SFP+ 8xGE Enterprise Campus Multicore Router

Description

The industry's first enterprise-class Enterprise Routers (ARs) designed for a Software-Defined Wide-Area Network (SD-WAN) solution, the NetEngine AR8000 series uses a multi-core processor and non-blocking switching architecture, providing a forwarding performance that's three times the industry average.

Well suited to coping with uplink traffic surges and promoting diversified service development, the NetEngine AR8000 series Enterprise Routers is widely deployed at the egress of large-sized campus networks and at the headquarters of enterprises.

Pictures

AR8700-8 02355LFN 1x40GE QSFP+ 8x10GE SFP+ 8xGE Multicore Campus Router

AR8700-8 02355LFN 1x40GE QSFP+ 8x10GE SFP+ 8xGE Multicore Campus Router

Specification

Item Specification
Cabinet installation standards ETSI 21-inch; IEC 19-inch
Dimensions without packaging (H x W x D) [mm(in.)] 222 mm x 220 mm x 442 mm (8.74 in. x 8.66 in. x 17.40 in.)
Chassis height [U] 5 U
Weight without packaging [kg(lb)] 10.6 kg (23.37 lb)
Weight without packaging (full configuration) [kg(lb)]

[NSP-240] 21.6 kg (47.6 lb)

[NSP-480] 24.5 kg (54.0 lb)

[NSP-1T] 26.8 kg (59.1 lb)
Typical power consumption (with configuration) [W]

649 W(NSP-240)

1009.2 W(NSP-480)

925 W(NSP-1T)
Typical heat dissipation (with configuration) [BTU/hour]

2105.6 BTU/hour(NSP-240)

3274.3 BTU/hour(NSP-480)

3001 BTU/hour(NSP-1T)
MTBF [year] 138.61 year
MTTR [hour] 0.5 hour
Availability 0.999999588
Flash memory

MPU:16 MB

NSP-50: 64 MB

NSP-120:64 MB

NSP-240:64 MB

NSP-A:64 MB

NSP-B:64 MB

NSP-C:128 MB

NSP-D:128 MB
Power supply mode DC
Rated input voltage [V] –48 V/–60 V
Input voltage range [V] –40 V to –72 V
Maximum input current [A] 40 A
Maximum input cable size [mm²] 16mm^2. 6mm^2 (1-10 meters) recommended. 10mm^2 (10-20 meters) recommended. 16mm^2 (20-35 meters) recommended
Front-end circuit breaker/fuse [A] ≥50 A
Heat dissipation mode Air cooling
Airflow direction From left to right
Noise at normal temperature (acoustic power) [dB(A)] < 72 dB (meeting the ETSI 72 dBA standard)
Number of slots 15
Number of service board slots 8
Switching capacity

100 Gbit/s(NSP-50)

240 Gbit/s(NSP-120)

480 Gbit/s(NSP-A/B)

480 Gbit/s(NSP-240)

960 Gbit/s(NSP-C)

2 Tbit/s(NSP-D)
Redundant MPUs 1:1
Redundant network processing units 1:1
Redundant power supply 1+1
Redundant fans If a single fan fails, the system can still work for a short period of time at an ambient temperature of 40°C.
Long-term operating temperature [°C(°F)] 0°C(33.8°F) to 45°C(113°F)
Short-term operating temperature [°C(°F)] -5°C(23°F) to 55°C(131°F)
Enhanced operating temperature [°C(°F)] -5°C(23°F) to 65°C(149°F)
Restriction on the operating temperature variation rate [°C(°F)] ≤ 30°C/hour (54°F/hour)
Storage temperature [°C(°F)] -40°C(-40°F) to 70°C(158°F)
Long-term operating relative humidity [RH] 5% RH to 85% RH, non-condensing
Short-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] ≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device decreases by 1°C [33.8°F] each time the altitude increases by 220 m [721.78 ft.].)
Storage altitude [m(ft.)] < 5000 m(< 16404.2 ft.)
