C3850 Series 24 Port Network Switch SFP + Layer 3 Network Switch WS-C3850-24XS-E
C3850 Series 24 Port Network Switch SFP + Layer 3 Network Switch WS-C3850-24XS-E
C3850 Series 24 Port Network Switch SFP + Layer 3 Network Switch WS-C3850-24XS-E
C3850 Series 24 Port Network Switch SFP + Layer 3 Network Switch WS-C3850-24XS-E
C3850 Series 24 Port Network Switch SFP + Layer 3 Network Switch WS-C3850-24XS-E
C3850 Series 24 Port Network Switch SFP + Layer 3 Network Switch WS-C3850-24XS-E
C3850 Series 24 Port Network Switch SFP + Layer 3 Network Switch WS-C3850-24XS-E
C3850 Series 24 Port Network Switch SFP + Layer 3 Network Switch WS-C3850-24XS-E
Specifications
Brand Name :
Cisco
Model Number :
WS-C3850-24XS-E
Place of Origin :
Beijing, China
MOQ :
2 pieces
Price :
$1,880.00/pieces 2-49 pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50pcs per week
Delivery Time :
3 working days
Packaging Details :
original package
Private Mold :
NO
Products Status :
Stock
Ports :
24
Transmission Rate :
10/100/1000Mbps
Function :
LACP, POE, QoS, SNMP, stackable, VLAN Support
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
256G
Product Name :
WS-C3850-24XS-E
Condition :
Brand-new
Power Supply :
Input:AC100-240V 50/60Hz
PoE Ports :
24 Ports
Product Description :
Gigabit Ethernet Network Switch
Warranty :
1 Year
Package :
Original Box
MOQ :
2 Pcs
Description
Product Description

WS-C3850-24XS-E Overview

Cisco next generation Catalyst WS-C3850-24XS-E is stackable enterprise level switch and integrated with 24 ports of SFP+ 10G Ethernet fiber connection with Flexible Netflow feature. It offers IP Services feature set.

Quick Specs

Table 1 shows the Quick Specs.

Product Code WS-C3850-24XS-E
Enclosure Type 1 RU
Feature Set IP Services
Network SFP uplink module selection

C3850-NM-4-10G

C3850-NM-8-10G

C3850-NM-2-40G
Ports 24 × 10/100/1000 10G SFP+ Optical ports
Maximum stacking number 9
Stack bandwidth 480 Gpbs
RAM 4 GB
Flash Memory 4 GB
Dimensions (WDH) 44.5 cm x 45 cm x 4.45 cm

Product Details

Figure 1 shows the front panel of the Cisco WS-C3850-24XS-E with blank network module.

C3850 Series 24 Port Network Switch SFP + Layer 3 Network Switch WS-C3850-24XS-E

Note:

① UID (blue beacon) ⑤ USB Type A storage port
② Mode button ⑥ 24 × 10/100/1000 10G SFP+ Optical ports
③ Status LEDs ⑦ Network SFP uplink module slot
④ USB mini-Type B (console) port

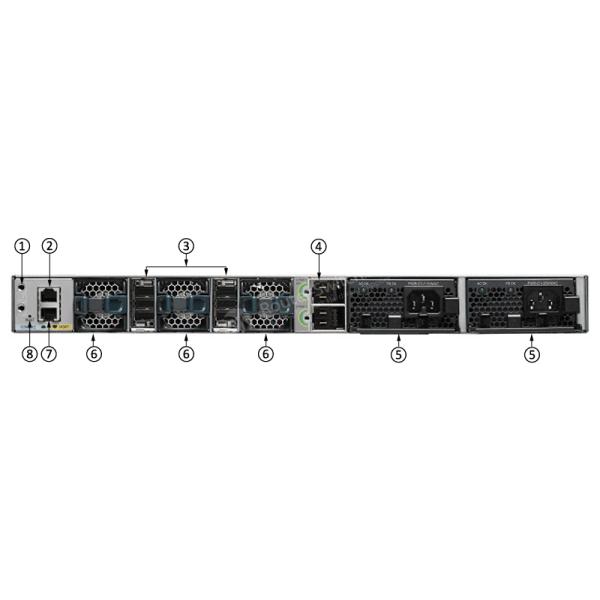

Figure 2 shows the back panel of the Cisco WS-C3850-24XS-E.

C3850 Series 24 Port Network Switch SFP + Layer 3 Network Switch WS-C3850-24XS-E

Note:

① Ground connector ⑤ Power supply modules
② CONSOLE (RJ-45 console port) ⑥ Fan module
③ StackWise port connector ⑦ MGMT port
④ StackPower connector ⑧ Reset Button

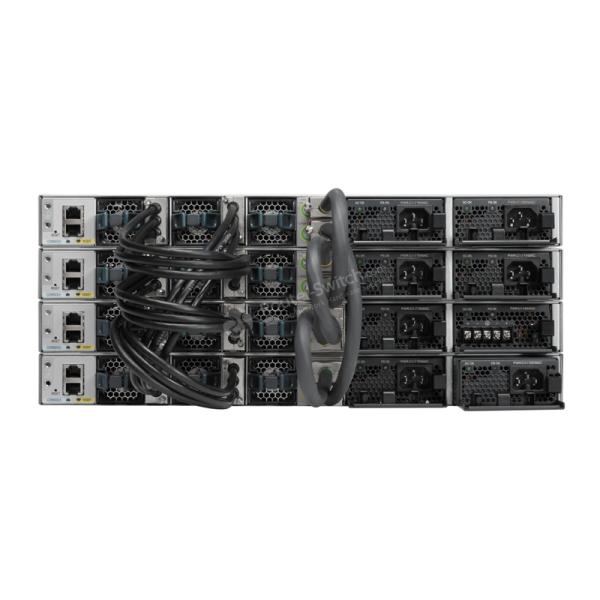

Figure 3 shows the StackWise-480 and StackPower connectors.

This switch with IP Services feature set can only stack with other Catalyst 3850 Series IP Services switches.

C3850 Series 24 Port Network Switch SFP + Layer 3 Network Switch WS-C3850-24XS-E

C3850 Series 24 Ports Ethernet Terlaris SFP + Layer 3 Switch WS-C3850-24XS-E

Kode Produk
WS-C3850-24XS-E
Jenis penutup
Dapat dipasang di rak-1U
Set Fitur
IP Lite
Antarmuka Uplink
24x SFP + 10Gbit
Port
24x10/100/1000 (POE +)
Lapisan
2 dan 3
Meneruskan Bandwidth
108Gbps
Maks. Susun
9
Pita tumpuk
90G
Switching Bandwidth
480Gbps
RAM
4GB
Memori Flash
4GB
Dimensi
44.5 cm x 40.8 cm x 4.45 cm
