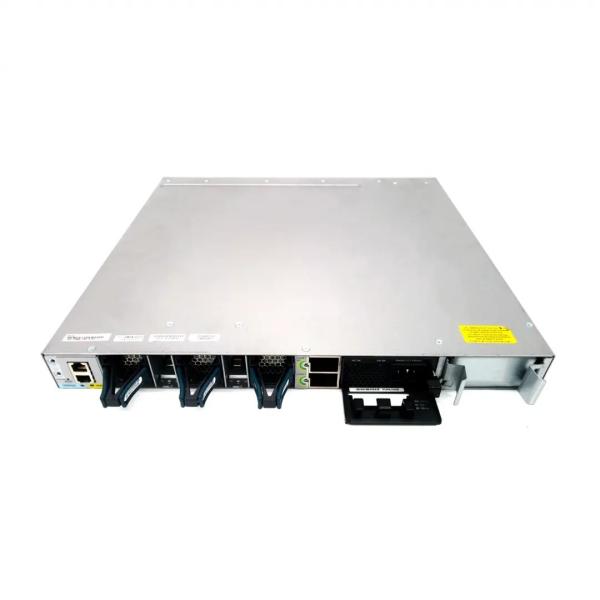

3850 Series 12 Port Network Switch SFP Ethernet Switch 320Gbps WS-C3850-12XS-S
3850 Series 12 Port Network Switch SFP Ethernet Switch 320Gbps WS-C3850-12XS-S
3850 Series 12 Port Network Switch SFP Ethernet Switch 320Gbps WS-C3850-12XS-S
3850 Series 12 Port Network Switch SFP Ethernet Switch 320Gbps WS-C3850-12XS-S
Specifications
Brand Name :
WS-C3850-12XS-S
Model Number :
WS-C3850-12XS-S
Place of Origin :
Beijing
MOQ :
2 pieces
Price :
$1,250.00/pieces 2-199 pieces
Private Mold :
NO
Products Status :
Stock
Ports :
12
Transmission Rate :
10/100/1000Mbps
Function :
LACP, QoS, SNMP, stackable, VLAN Support
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
320Gbps
Product Name :
WS-C3850-12XS-S
Condition :
NIB Original
Warranty :
1 Year
Device Type :
Switch - 12 Ports - Managed
Applications :
Telecommunication
Lead time :
3~7 Days
Shipping :
DHL UPS FEDEX
Description
3850 Series 12 port SFP Ethernet network core Switch WS-C3850-12XS-S

WS-C3850-12XS-S Specification

model info:

WS-C3850-12XS-S

enclosure type

Rack-mountable - 1U

Ports

12 x SFP+ ports

Network management Interface

Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
Management console port: RJ-45-to-DB9 cable for PC connections

Available PoE Power

None

Switching Capacity

320Gbps

Maximum stacking number

9

Stack Bandwidth

480Gbps

Forwarding Performance

227.28Mpps

FNF entries

48,000 flows

Maximum VLANs IDs

1,000

MAC Address Table Size

32K

CPU

Multicore CPU

RAM

4 G

Flash Memory

4 G

Wireless

Number of AP per switch/stack

100

Number of wireless clients per switch/stack

2000

Total number of WLANs per switch

64

Wireless bandwidth per switch

up to 20Gbps

Supported Aironet AP series

3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)

1 network module slot and 1 power redundant slot

Network Modules Selection

C3850-NM-4-1G: 4 x 1G uplinks network module
C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module

Stacking cable

STACK-T1-50CM StackWise stacking cable with a 0.5 m length
STACK-T1-1M StackWise stacking cable with a 1.0 m length
STACK-T1-3M StackWise stacking cable with a 3.0 m length

Stack Power Cable (recommended)

CAB-SPWR-30CM stack power cable with a 30CM length
CAB-SPWR-150CM stack power cable with a 150CM length

Power supply

PWR-C1-350WAC

Power Device

Power supply - redundant - plug-in module

Power Redundancy

optional

Voltage range (Auto)

100V-240V

Power Consumption of standalone(in Watts)

109.75 (Max)

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

17.7 Inches (45.0 cm)

Height

1.75 Inches (4.45 cm)

Weight

12.9 Pounds (5.8 Kg)

Rack Mounting Kit

optional

MTBF in hours

371,440

Recommended modules, licenses and accessories of this switch

Models Description
C3850-NM-4-10G Cisco 3850 Series 4 x 10GE Network Module
L-C3850-12-S-E C3850-12 IP Base to IP Services Electronic RTU License
PWR-C1-350WAC Cisco 3850 Series Power Supply 350W AC
PWR-C1-350WAC/2 Cisco 3850 Series Secondary Power Supply 350W AC Config 1 Secondary Power Supply
STACK-T1-50CM= Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch
STACK-T1-1M= Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch
