Specifications
Brand Name :
Ruckus Wireless Access Point
Place of Origin :
Beijing, Beijing,China
Packaging Details :
Brand new original unopened
Supply Ability :
50 Piece/Pieces per Day
MOQ :
2 pieces
Price :
$249.00/pieces 2-199 pieces
Model Number :
901-H500-WW00
Max. LAN Data Rate :
1000Mbps
With Modem Function :
NO
Standards And Protocols :
Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n
Wi-Fi Supported Frequency :
2.4G & 5G
Supports WDS :
No
Supports WPS :
No
Wi-Fi Transmission Standard :
802.11b
Wired Transfer Rate :
None
2.4G Wi-Fi Transmission Rate :
600Mbps
Encryption Type :
WPA2-PSK, WPA2, WPA-PSK
Private Mold :
NO
Products Status :
New
Type :
Wireless
Application :
Home, Indoor
Function :
FireWall, QoS, VPN
LAN Ports :
2
WAN Ports :
1
5G Wi-Fi Transmission Rate :
1300Mbps
Product name :
901-H500-WW00
Warranty :
1 Year
Wi-Fi Technology :
802.11ac (2.4/5GHz)
Color :
White
brand :
Ruckus
Ethernet Ports :
5 x 1GbE
Description

Ruckus 901-H500-WW00: In-Wall Wi-Fi 5 & Multi-Service Connectivity for Hospitality & MDUs

The Ruckus 901-H500-WW00 is a versatile 802.11ac (Wi-Fi 5) Wireless Access Point designed for discreet, high-performance in-wall deployment. Combining robust Wi-Fi with integrated Ethernet ports, it's the ideal solution for hotel rooms, dorms, and multi-dwelling units (MDUs) requiring seamless connectivity for both wireless and wired devices.

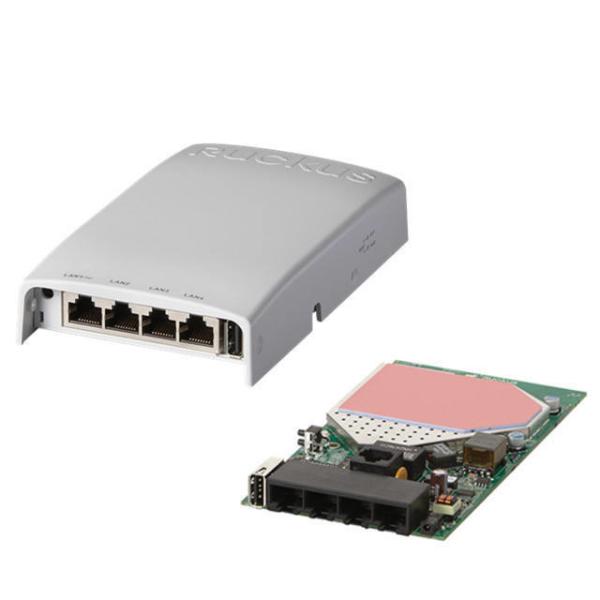

Discreet Design & Integrated Services

The H500 features a sleek, compact design for easy mounting into a standard wall junction box, blending seamlessly into any decor. Beyond Wi-Fi, it includes four Gigabit Ethernet ports, effectively acting as a mini-switch within the room. One port offers PoE Out to power devices like IP phones or thin clients, providing more than just Wi-Fi connectivity compared to a basic Cisco Wireless AP.

Optimized Wi-Fi 5 Performance

This dual-band 802.11ac Wave 1 AP delivers reliable performance with combined theoretical data rates up to 1.167 Gbps. Leveraging Ruckus's patented BeamFlex+™ adaptive antenna technology, the H500 directs Wi-Fi signals dynamically, ensuring consistent coverage and mitigating interference for an optimal user experience, even in challenging environments.

Simplified Deployment & Management

The H500 supports 802.3af PoE for power, simplifying installation as only a single Ethernet cable is needed. It can be managed flexibly via Ruckus Unleashed (controller-less), ZoneDirector, SmartZone, or Ruckus Cloud, offering streamlined deployment and management for large-scale hospitality or MDU projects.

Tailored for Hospitality & MDUs

Specifically engineered for multi-dwelling units, the H500 enhances guest and resident experiences by providing dedicated, strong Wi-Fi and wired connectivity for devices like smart TVs, gaming consoles, and VoIP phones. This reduces the need for additional Cisco Network Switch deployments in individual rooms, simplifying infrastructure.

Ruckus 901-H500-WW00 Detailed Parameters

For a comprehensive look at its technical capabilities, here are the detailed specifications:

Parameter Category Parameter Specification
Wireless Wi-Fi Standard 802.11ac (Wi-Fi 5), backward compatible with a/b/g/n
Frequency Bands Dual-band (2.4 GHz & 5 GHz concurrent)
MIMO Configuration 2x2:2 on both 2.4 GHz and 5 GHz
Maximum Data Rate (5 GHz) Up to 867 Mbps
Maximum Data Rate (2.4 GHz) Up to 300 Mbps
Combined Max PHY Rate Up to 1.167 Gbps (theoretical combined)
Antenna Type Integrated Omni-directional, featuring BeamFlex+™
Wired Interfaces Uplink Port 1 x 1 Gigabit Ethernet (1GbE), auto-sensing, PoE In
Downlink Ports 3 x 1 Gigabit Ethernet (1GbE), auto-sensing
PoE Out 1 x 802.3af PoE Out (on one of the downlink ports)
Passthrough Port 1 x RJ45 Passthrough port (directly connected to wall jack)
USB Port 1 x USB 2.0 (for future use)
Physical Dimensions (WxDxH) 16.5 x 8.9 x 2.8 cm (6.5 x 3.5 x 1.1 inches)
Weight 0.28 kg (0.62 lbs)
Mounting Standard single-gang wall box (US/EU)
Power Power Consumption Max 12.95W (AP only), Max 21.95W (with PoE Out device)
Power Source 802.3af/at PoE
Environmental Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity Up to 95% non-condensing
Management Deployment Modes ZoneDirector, SmartZone, Unleashed, Ruckus Cloud, Standalone
Part Number Worldwide Model 901-H500-WW00
