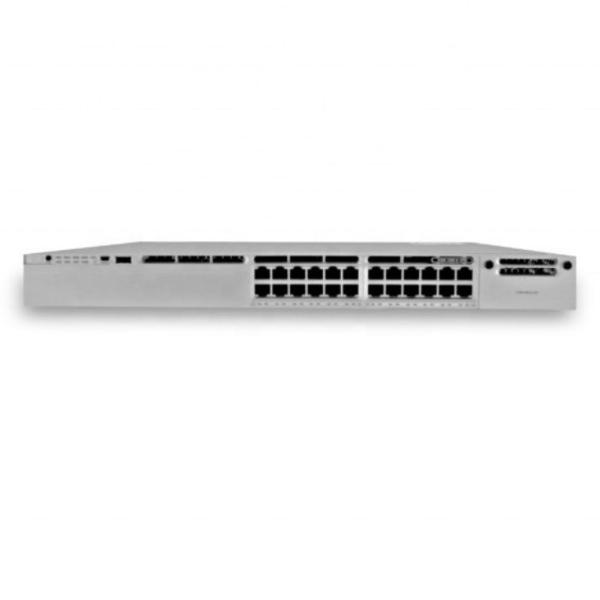

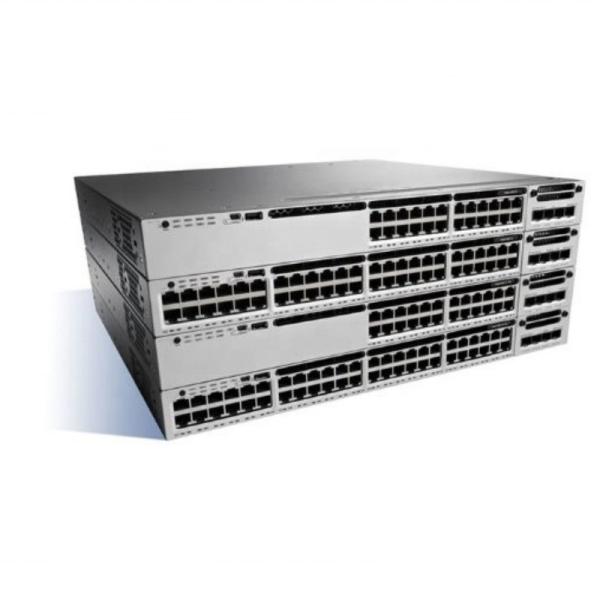

3850 Stackable 24 ports 1 network module slot 3850 Series Switch WS-C3850-24U-E
3850 Stackable 24 ports 1 network module slot 3850 Series Switch WS-C3850-24U-E
3850 Stackable 24 ports 1 network module slot 3850 Series Switch WS-C3850-24U-E
3850 Stackable 24 ports 1 network module slot 3850 Series Switch WS-C3850-24U-E
3850 Stackable 24 ports 1 network module slot 3850 Series Switch WS-C3850-24U-E
3850 Stackable 24 ports 1 network module slot 3850 Series Switch WS-C3850-24U-E
3850 Stackable 24 ports 1 network module slot 3850 Series Switch WS-C3850-24U-E
3850 Stackable 24 ports 1 network module slot 3850 Series Switch WS-C3850-24U-E
Specifications
Brand Name :
Cisco
Model Number :
WS-C3850-24U-E
Place of Origin :
BEI, Beijing,China
Packaging Details :
Brand new original unopened, Carton box
Supply Ability :
50 Piece/Pieces per Day
MOQ :
2 pieces
Price :
$400-$430/pieces 2-99 pieces
Payment Terms :
T/T, Western Union
Delivery Time :
2-5 work days
Private Mold :
NO
Products Status :
Stock
Ports :
24
Transmission Rate :
10/100/1000Mbps, 10/100/1000Mbps
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
92Gbps, 176Gbps
Product Name :
PoE Switch
Condition :
NIB Original
Model :
WS-C3850-24U-E
Warranty :
1 Year
Description
Product Description

3850 Stackable 24 ports 1 network module slot 3850 Series Switch WS-C3850-24U-E

Cisco WS-C3850-24U-E supports Stackable 24 10/100/1000 Cisco UPOE ports, 1 network module

slot, 1100 W power supply and 1RU chassis. Cisco Catalyst 3850 Series provides capabilities that ideally

suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data™

Plane (UADP) Application-Specific Integrated Circuit (ASIC) powers the switch and enables uniform

wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This

convergence is built on the resilience of the new and improved Cisco StackWise®-480 technology.

WS-C3850-24U-E Specification
model info: WS-C3850-24U-E
enclosure type Rack-mountable - 1U
Ports Stackable 24 10/100/1000 UPOE ports
Network management Interface Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power 800W
Maximum stacking number up to 9 switches with same IOS feature set in same series
Stack Bandwidth 480Gbps
CPU Multicore CPU
RAM 4 G
Flash Memory 2 G
Wireless
Number of AP per switch/stack 100
Number of wireless clients per switch/stack 2000
Total number of WLANs per switch 64
Wireless bandwidth per switch up to 20Gbps
Supported Aironet AP series 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s) 1 network module slot and 1 power redundant slot
Network Modules Selection

C3850-NM-4-1G

C3850-NM-2-10G
Stacking cable STACK-T1-50CM StackWise stacking cable with a 0.5 m length
STACK-T1-1M StackWise stacking cable with a 1.0 m length
STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended) CAB-SPWR-30CM stack power cable with a 30CM length
CAB-SPWR-150CM stack power cable with a 150CM length
Power supply PWR-C1-1100WAC/2=
Power Device Power supply - redundant - plug-in module
Power Redundancy optional
Voltage range (Auto) 100V-240V
Power Consumption of standalone(in Watts) 84.97 (max)

Network modules

The Cisco Catalyst 3850 Series Switches support five optional network modules for uplink ports. The default switch

configuration does not include the network module. At the time of switch purchase the customer has the flexibility to

choose from the network modules described in Table 2.

Figure 1 shows the following network modules:

● 4 x Gigabit Ethernet with Small Form-Factor Pluggable (SFP) receptacles

● 2 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP receptacles

● 4 x 10 Gigabit Ethernet with SFP+ receptacles (supported only on the 48-port Gigabit Ethernet models or on

the 12-port or higher 10 Gigabit Ethernet models)

3850 Stackable 24 ports 1 network module slot 3850 Series Switch WS-C3850-24U-E

Figure 1.

Network modules with four Gigabit Ethernet, two 10 Gigabit Ethernet SFP+, or four 10 Gigabit Ethernet SFP+ interfaces

Figure 2 shows the following network modules:

● 8 x 10 Gigabit Ethernet with Small Form-Factor Pluggable+ (SFP+) receptacles

● 2 x 40 Gigabit Ethernet with Quad Small Form-Factor Pluggable+ (QSFP+) receptacles

3850 Stackable 24 ports 1 network module slot 3850 Series Switch WS-C3850-24U-E

Figure 2.

Network modules with two 40 Gigabit Ethernet QSFP+ or eight 10 Gigabit Ethernet SFP+ interfaces
