LAN Base 24 Port PoE Gigabit Switch C3560X Series WS-C3560X-24P-L
LAN Base 24 Port PoE Gigabit Switch C3560X Series WS-C3560X-24P-L
LAN Base 24 Port PoE Gigabit Switch C3560X Series WS-C3560X-24P-L
LAN Base 24 Port PoE Gigabit Switch C3560X Series WS-C3560X-24P-L
LAN Base 24 Port PoE Gigabit Switch C3560X Series WS-C3560X-24P-L
LAN Base 24 Port PoE Gigabit Switch C3560X Series WS-C3560X-24P-L
LAN Base 24 Port PoE Gigabit Switch C3560X Series WS-C3560X-24P-L
LAN Base 24 Port PoE Gigabit Switch C3560X Series WS-C3560X-24P-L
LAN Base 24 Port PoE Gigabit Switch C3560X Series WS-C3560X-24P-L
LAN Base 24 Port PoE Gigabit Switch C3560X Series WS-C3560X-24P-L
LAN Base 24 Port PoE Gigabit Switch C3560X Series WS-C3560X-24P-L
LAN Base 24 Port PoE Gigabit Switch C3560X Series WS-C3560X-24P-L
Specifications
Brand Name :
WS-C3560X-24P-L
Model Number :
WS-C3560X-24P-L
Place of Origin :
Beijing
MOQ :
2 pieces
Price :
$200-$300.00/pieces 2-299 pieces
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
50 Piece/Pieces per Day
Delivery Time :
3 workingdays after payment
Packaging Details :
Original Carton Box
Private Mold :
NO
Products Status :
Stock
Ports :
24, 24 10/100/1000 Ports
Transmission Rate :
10/100/1000Mbps
Function :
LACP, POE, QoS, SNMP, stackable, VLAN Support
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
28G
Product Name :
WS-C3560X-24P-L
Condition :
NIB Original
Warranty :
1 Year
Device Type :
Switch - 24 Ports - Managed
Lead time :
3~7 Days
Shipping :
DHL UPS FEDEX
Description
Product Description

Original C3560X series 24-Port PoE Gigabit LAN Base Network Switch WS-C3560X-24P-L

The Cisco® Catalyst® 3750-X and 3560-X Series Switches are an enterprise-class lines of stackable and

standalone switches, respectively. These switches provide high availability, scalability, security, energy efficiency,

and ease of operation with innovative features such as Cisco StackPower (available only on the Catalyst 3750‑X),

IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power

supplies, and Media Access Control Security (MACsec) features. The Cisco Catalyst 3750-X Series with

StackWise® Plus technology provides scalability, ease of management and investment protection for the

evolving business needs. The Cisco Catalyst 3750-X and 3560-X enhance productivity by enabling applications

such as IP telephony, wireless, and video for borderless network experience.

Manufacturer Part Number
WS-C3560X-24P-L
Product Type
Switch - 24 ports - Managed
Form Factor
Rack mountable - 1U
Switch Ports
24 x 10/100/1000 Ethernet Ports Ethernet Ports
Power Over Ethernet (PoE)
Yes
Performance
Switching capacity : 160 Gbps
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH, CLI
Authentication Method
Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad
(LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
DRAM Memory
256 MB
Flash Memory
64 MB Flash
Status Indicators
Port status, link activity, port transmission speed, port duplex mode, power, system
Interfaces
24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE
USB : 1 x 4 PIN USB Type A
1 x console - mini-USB Type B - management
1 x RS-232 - RJ-45 - management
1 x 10Base-T/100Base-TX - RJ-45 - management
Expansion Slots Total (Free)
1 ( 1 ) x Expansion Slot
Power Device
Power supply - redundant - plug-in module
Installed Qty
1 (installed) / 2 (max)
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Voltage Required
AC 120/230 V ( 50/60 Hz )
Features
Redundant Power System (RPS) connector
Width
44.5 cm
Depth
46 cm
Height
4.5 cm
Weight
7.1 kg

Network Module

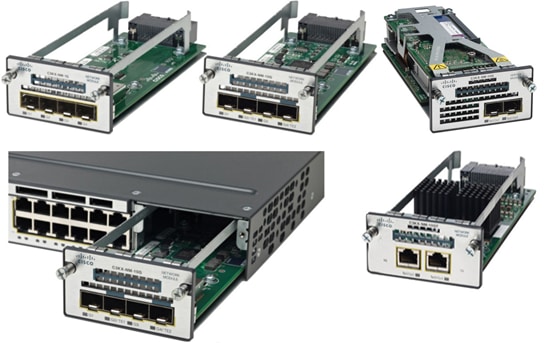

Figure 1 shows various Network Modules with Four GbE, Two 10GbE SFP+ Interfaces, Two 10GB-T and Service Module

with Two 10GbE SFP+ Interfaces.

LAN Base 24 Port PoE Gigabit Switch C3560X Series WS-C3560X-24P-L

Figure 1.

Network Modules with Four GbE, Two 10GbE SFP+ Interfaces, Two 10GB-T and Service Module with Two 10GbE

SFP+ Interfaces

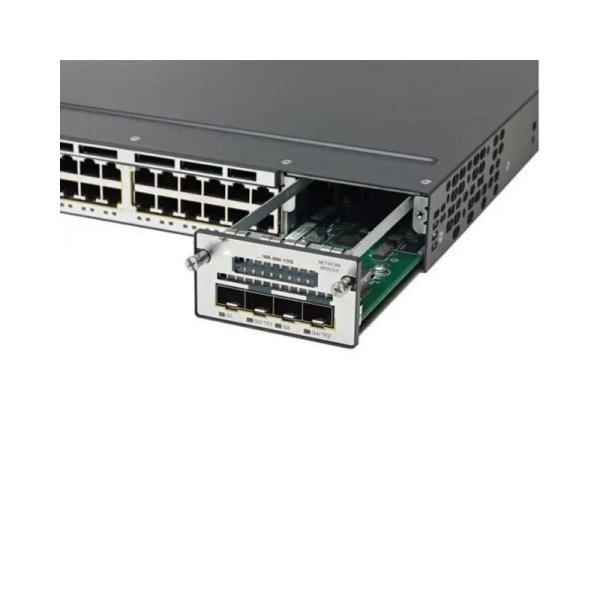

The Cisco Catalyst 3750-X Series and 3560-X Series Switches support four optional network modules for uplink ports.

The default switch configuration doesn’t include the uplink module; at the time of switch purchase the customer has the

flexibility to choose from the network modules described in Table 2.

Table 2. Network Module Numbers and Descriptions

Product Number Product Description
C3KX-NM-1G Four GbE port network module
C3KX-NM-10G Two 10GbE SFP+ ports network module with four physical ports with two SFP+ and two regular SFP ports
C3KX-NM-10GT Two 10GB-T ports network module
C3KX-SM-10G Service Module with two 10GbE SFP+ ports network module for Netflow and MACsec encryption

The SFP+ interface supports both 10GbE and GbE port, allowing customers to use their investment in GbE SFP and

upgrade to 10GbE when business demands change, without having to do a comprehensive upgrade of the access switch.

The four uplink modules are hot swappable.

Our Services
*Packing Details
1. All items are sealed in original box
2. We will also pack them with another carton box before shipping
3. Professional packing will make sure the goods arriving safely
*FAQ
Q: Is the product brand new?
A: All our products are new original.
Q: When can I get my purchase?
A: We work with DHL, UPS,Fedex, Middle East Express and many others
delivery companies. The goods usually arrive at the designated address
within 3-5 days.
Q: How long is the lead time?
A: We will deliver the goods within 1-2 days after receiving the payment.
If it is in stock, we will arrange it immediately.
Q: How long is the warranty?
A: One year.
