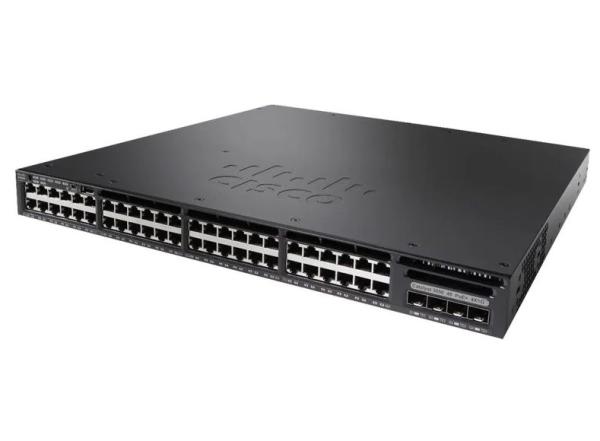

WS-C3650-48PD-S Catalyst Layer 3 48 Port Switch Ethernet PoE Switches With 2x10G Uplinks
WS-C3650-48PD-S Catalyst Layer 3 48 Port Switch Ethernet PoE Switches With 2x10G Uplinks
WS-C3650-48PD-S Catalyst Layer 3 48 Port Switch Ethernet PoE Switches With 2x10G Uplinks
WS-C3650-48PD-S Catalyst Layer 3 48 Port Switch Ethernet PoE Switches With 2x10G Uplinks
Specifications
Brand Name :
Cisco
Model Number :
WS-C3650-48PD-S
Place of Origin :
Beijing, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 Piece/Pieces per Day
Delivery Time :
2-3 working days
Model :
WS-C3650-48PD-S
Device Type :
Switch - 48 Ports - Managed
Transmission Rate :
10/100/1000Mbps
Function :
LACP, POE, QoS, SNMP, VLAN Support
Switch Capacity :
176Gbps
Product Name :
Ethernet Switch
Private Mold :
NO
Condition :
NIB
Warranty :
1 Year
Dimensions (W x D x H) :
44.5 x 44.8 x 4.4 cm
Weight :
18 kg
Description
Product Description

Cisco Catalyst 3650 Series Switches are ideal for organizations that require full-featured Layer 3 switching and PoE+ capabilities. With 48 Ethernet PoE+ ports and 2x10G uplinks, the WS-C3650-48PD-S offers high-density connectivity for devices such as wireless access points, IP phones, and video surveillance cameras. It supports Layer 3 switching and comes with IP Base IOS, providing advanced security and management features. The switch is also managed, allowing for easy configuration and monitoring.

The WS-C3650-48PD-S is ideal for:

  • Corporate Offices: Connecting and powering IP phones and wireless access points.
  • Educational Institutions: Providing connectivity in classrooms and labs.
  • Healthcare: Supporting medical devices and ensuring reliable network access.
  • Retail: Powering POS systems and security cameras.

Product Features
High-density PoE+ ports for devices like wireless access points and IP phones
Support for Layer 3 switching for advanced routing capabilities
IP Base IOS for advanced security and management features
Managed switch for easy configuration and monitoring
2x10G uplinks for high-speed connectivity

Specifications

Product Code
WS-C3650-48PD-S
Enclosure Type
Rack-mountable - 1U
Feature Set
IP Base
Uplink Interfaces
2 x 1G SFP , 2 x 10G SFP+ OR 4 x 1G SFP uplinks
Ports
48 x 10/100/1000 POE+ Ethernet ports
Available PoE Power
390W
Maximum stacking number
9

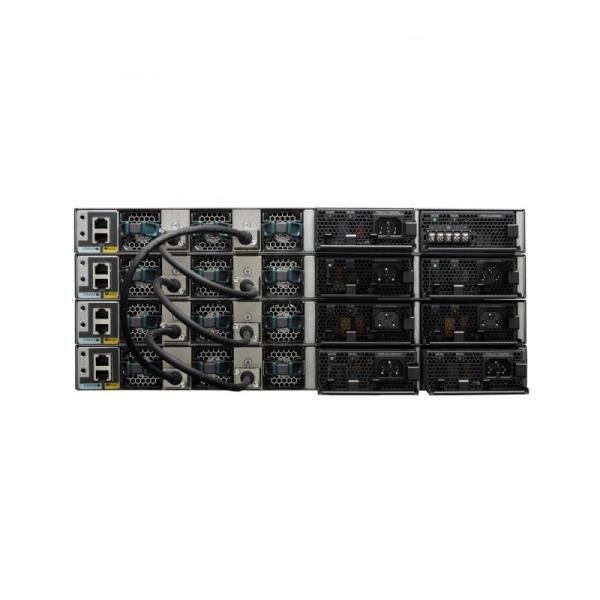

Stack bandwidth
160Gbps
Forwarding Performance
104.16Mpps
Switching Capacity
176Gbps
RAM
4 GB
Flash Memory
2 GB
Number of AP per switch/stack
50
Number of wireless clients per switch/stack
1000
Dimensions
44.5 x 44.8 x 4.4 cm
Package Weight
17.49 Kg

Switching capacity

176 Gbps on 48-port models (non-multigigabit models)

92 Gbps on 24-port models (non-multigigabit models)

254 Gbps on 24-port Multigigabit models with 2x10G uplink

272 Gbps on 24-port Multigigabit models with 4x10G uplink

392 Gbps on 48-port Multigigabit models with 4x10G uplink

472 Gbps on 48-port Multigigabit models with 8x10G uplink

472 Gbps on 48-port Multigigabit models with 2x40G uplink

Similar switches comparison

Feature WS-C3650-48PD-S WS-C3650-48PS WS-C3650-24PD-S
Ports 48 x 10/100/1000 Ethernet 48 x 10/100/1000 Ethernet 24 x 10/100/1000 Ethernet
PoE Support PoE+ (30W per port) PoE+ (15.4W per port) PoE+ (30W per port)
Switching Capacity Up to 160 Gbps Up to 160 Gbps Up to 128 Gbps
Layer 3 Routing Yes (Static & Dynamic) Yes (Static & Dynamic) Yes (Static & Dynamic)
Stacking Capability Cisco StackWise-480 Cisco StackWise-480 Cisco StackWise-480
Management Software Cisco IOS XE Cisco IOS XE Cisco IOS XE
Form Factor Rack-mounted Rack-mounted Rack-mounted
Max Power Budget 740W 370W 740W
