C3850 Series Cisco Network Switch 24 Ethernet POE+ Gigabit Switch WS-C3850-24P-L
C3850 Series Cisco Network Switch 24 Ethernet POE+ Gigabit Switch WS-C3850-24P-L
C3850 Series Cisco Network Switch 24 Ethernet POE+ Gigabit Switch WS-C3850-24P-L
C3850 Series Cisco Network Switch 24 Ethernet POE+ Gigabit Switch WS-C3850-24P-L
C3850 Series Cisco Network Switch 24 Ethernet POE+ Gigabit Switch WS-C3850-24P-L
C3850 Series Cisco Network Switch 24 Ethernet POE+ Gigabit Switch WS-C3850-24P-L
Specifications
Brand Name :
Cisco
Model Number :
WS-C3850-24P-L
Place of Origin :
Beijing, China
MOQ :
2 pieces
Price :
$385.00/pieces 2-49 pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Private Mold :
NO
Products Status :
Stock
Ports :
24
Transmission Rate :
10/100/1000Mbps
Function :
LACP, POE, QoS, SNMP, stackable, VLAN Support
Communication Mode :
Full-Duplex
Switch Capacity :
156 Gbps, 10/100/1000Mbps
Part Number :
WS-C3850-24P-L
Product Description :
C3850 24-port data only
Multigigabit copper ports :
24 ports
Switching capacity :
156 Gbps
Dimensions (H x W x D) :
75*55*15cm
Weight :
14 Kg
Description
Product Description
C3850 series 24 Ethernet POE + ports Gigabit Switch WS-C3850-24P-L

WS-C3850-24P-L Overview

Cisco Catalyst WS-C3850-24P-L is next generation stackable enterprise level switch and integrated with 24 Ethernet POE + ports with upgradeable LAN base IOS image. WS-C3850-24P-L is designed for access layer with 255 VLANs and IEEE802.3at POE+ standard supporting.

Quick Specs

Table 1 shows the Quick Specs.

Product Code WS-C3850-24P-L
Enclosure Type 1 RU
Feature Set LAN Base
Network SFP uplink module selection

C3850-NM-4-1G

C3850-NM-2-10G
Ports 24 x 10/100/1000 Ethernet ports
Available POE Power 435W
Maximum stacking number 9
Stack bandwidth 480 Gpbs
Switching Capacity 92 Gpbs
Forwarding Performance 68.4Mpps
RAM 4 GB
Flash Memory 2 GB
Dimensions 4.45 cm x 44.5 cm x 44.5 cm
Package Weight 17.49 Kg

Product Details

Figure 1 shows the front panel of the Cisco WS-C3850-24P-L with blank network module slot.

C3850 Series Cisco Network Switch 24 Ethernet POE+ Gigabit Switch WS-C3850-24P-L

·The status LEDs include STAT (status), DUPLX (duplex), SPEED, STACK, SYST (system), ACTV (active) PoE and S-PWR (Stack Power).

·The switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed.

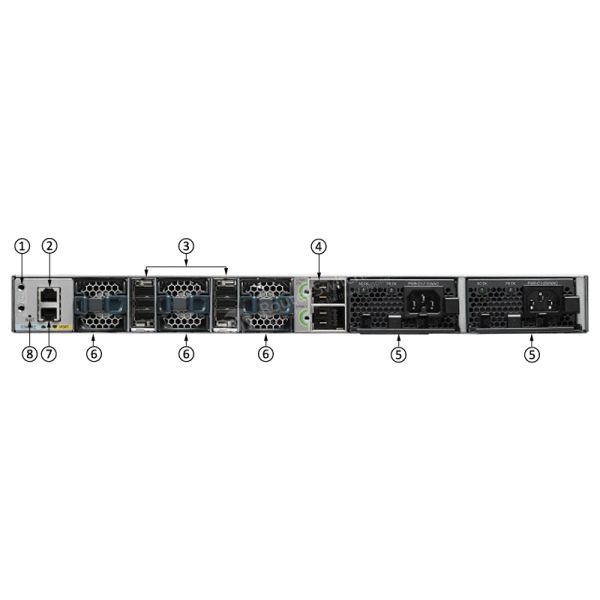

Figure 2 shows the back panel of the Cisco WS-C3850-24P-L.

C3850 Series Cisco Network Switch 24 Ethernet POE+ Gigabit Switch WS-C3850-24P-L

Note:

① Ground connector ② CONSOLE (RJ-45 console port) ③ StackWise port connector ④ StackPower connector ⑤ Power supply modules

⑥ Fan module ⑦ MGMT port ⑧ Reset Button

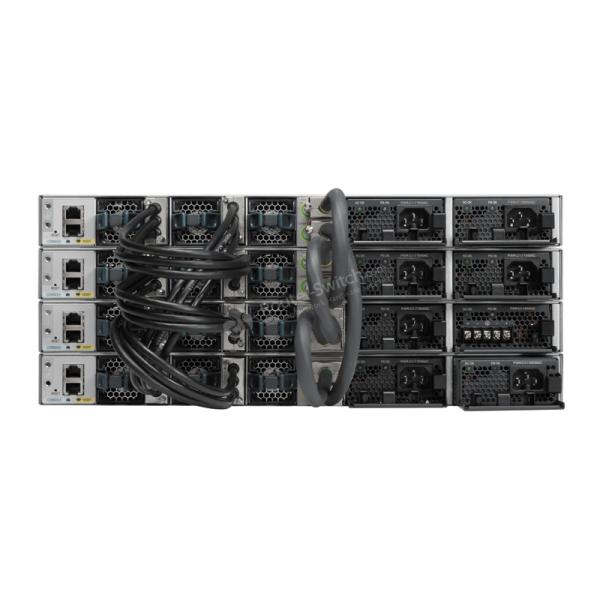

Figure 3 shows the StackWise-480 and StackPower connectors.

For the stacking purpose, LAN base switches can only stack with other Catalyst 3850 Series LAN base, mix stack with IP base or IP service feature set is not supported.

C3850 Series Cisco Network Switch 24 Ethernet POE+ Gigabit Switch WS-C3850-24P-L

Spesifikasi (WS-C3850-24P-L)
Kode Produk WS-C3850-24P-L
Lampiran Jenis 1 RU
Set Fitur LAN Base
Jaringan SFP uplink modul pilihan C3850-NM-4-1G
C3850-NM-2-10G
Port 24x10/100/1000 port Ethernet
Tersedia POE Power 435W
Maksimum susun nomor 9
Stack bandwidth 480 Gpbs
Kapasitas Switching 92 Gpbs
Forwarding Kinerja 68.4Mpps
RAM 4 GB
Memori Flash 2 GB
Dimensi 4.45 cm x 44.5 cm x 44.5 cm
Berat paket 17.49Kg
