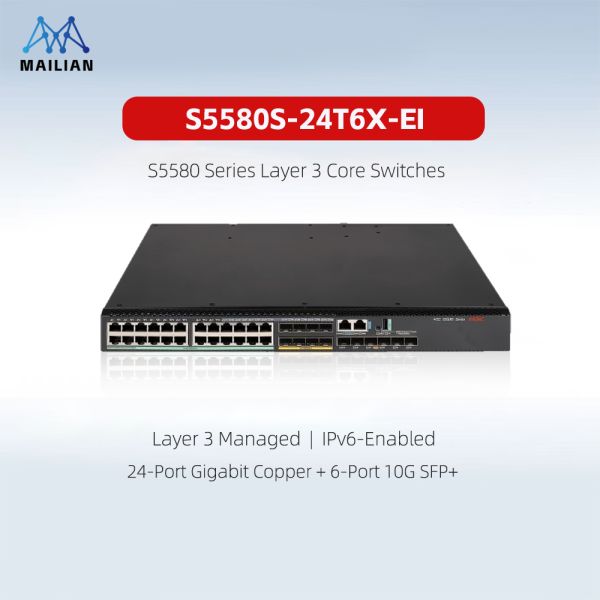

H3C S5580S-24T6X-EI Network Switch with 168Gbps Switching Capacity 125Mpps Forwarding and 10G/25G High-Speed Uplink
H3C S5580S-24T6X-EI Network Switch with 168Gbps Switching Capacity 125Mpps Forwarding and 10G/25G High-Speed Uplink
Specifications
Price :
$5850(According to the Model and configuration requirements)
Packaging Details :
Original packaging
Management Ethernet ports :
1
Supply Ability :
500
Switching Capacity :
168Gbps
Console ports :
1
Dimensions (W×D×H, mm) :
440×360×43.6
Model Number :
S5580S-24T6X-EI
Warranty :
3 years
Brand Name :
H3C
Products status :
Order
Payment Terms :
L/C,T/T,Western Union
Forwarding Capacity :
125Mpps
Place of Origin :
China
MOQ :
1
Products Item :
Campus - Aggregation Switch
Delivery Time :
Depending on the order
communication mode :
Full-Duplex & Half-Duplex
Description
1.Overview
  • High-performance Hardware: 2.4Tbps switching capacity, 10G/25G high-speed uplink, low-latency wire-speed forwarding for heavy workloads.
  • Full Protocol Support: IPv4/IPv6 dual stack, MPLS, EVPN, VXLAN, Layer 3 routing and multicast for cloud networks.
  • Virtualization Technology: IRF2 and M-LAG for device & link redundancy, simplified topology and high reliability.
  • Comprehensive Security: Equipped with EAD, 802.1X, anti-attack mechanisms and ACL for full security protection.
  • Intelligent O&M: Comware V9 OS, SmartMC, Telemetry and iNQA realize visualized management & fast troubleshooting.
  • Robust Hardware: Modular fans and power modules, 10KV lightning protection, wide temperature adaptability.
  • Powerful Expansion: Reserved expansion slot, compatible with various interface cards and integrated services.
2.Product Specifications
Feature S5580S-24T6X-EI
CPU Dual Core, 1.6GHz
Flash/SDRAM 4G/2G
Port Switching Capacity 168Gbps
Packet Forwarding Rate 125Mpps
Dimensions (W*D*H) (unit: mm) 440*360*43.6
Weight ≤4.5kg
Console Port 1
Ethernet Port for Management 10/100/1000Base-T electrical port: 1
USB Port 1
10/100/1000BASE-T auto-sensing Ethernet Port 24
Combo SFP port 8
10G SFP+ port 6
25G SFP28 port -
Latency (64byte/μs) GE: < 5μs
10G/25G < 3μs
Fan 2 Embedded Fans
Power supply 2 Modular Power Supply
Input Voltage AC:
Rated voltage range: 100 to 240V AC 50/60Hz
Maximum voltage range: 90V~290V AC, 47~63Hz
DC:
Rated voltage range: -48V~-60V DC
Maximum voltage range: -36V~-72V
