H3C S6812 Series Lightweight 10G/100G Uplink Lossless TOR Switches for Cloud Data Centers
H3C S6812 Series Lightweight 10G/100G Uplink Lossless TOR Switches for Cloud Data Centers
H3C S6812 Series Lightweight 10G/100G Uplink Lossless TOR Switches for Cloud Data Centers
H3C S6812 Series Lightweight 10G/100G Uplink Lossless TOR Switches for Cloud Data Centers
Specifications
Model Number :
H3C S6812 Series
Out-of-band management Ethernet port :
1
Supply Ability :
500
CPU :
2000MHz@4Core
communication mode :
Full-Duplex & Half-Duplex
Payment Terms :
L/C,T/T,Western Union
Dimensions (W×D×H, mm) :
44 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)
Products Item :
Data Center Switches - Access Switch
Delivery Time :
Depending on the order
AC-input voltage :
90v AC to 264v AC
Warranty :
3 years
Name :
H3C S6812 Series Data Center Switches
Price :
$2858(According to the Model and configuration requirements)
Packaging Details :
Original packaging
Forwarding Capacity :
1680Gbps/2160Gbps
DC-input voltage :
-36v DC to -72v DC
MOQ :
1
Switching Capacity :
1.44Tbps/2.56Tbps
Power module slot :
2
Place of Origin :
China
SFP+ /SFP port :
24/48
Brand Name :
H3C
Serial Console port :
1
Description
H3C S6812 high-density intelligent switch series is developed for data centers and cloud computing networks
Overview

The S6812/S6813 switch series has four models:

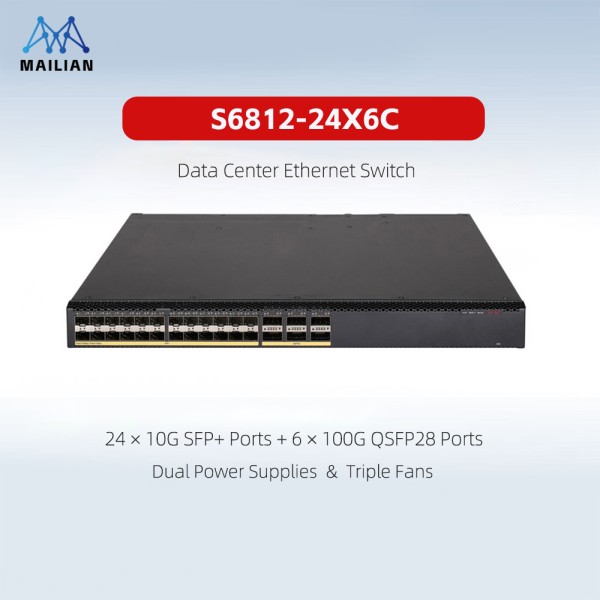

  • S6812-24X6C

    The switch provides 24 × 10G SFP Plus ports, 6 × 100G QSFP28 ports.

  • S6812-48X6C

    The switch provides 48 × 10G SFP Plus ports, 6 × 100G QSFP28 ports.

Product Specifications
Item S6812-24X6C S6812-48X6C
Chassis Form Factor 2U Rack-mount 2U Rack-mount
Dimensions (H × W × D) 44 × 440 × 360 mm 44 × 440 × 360 mm
Full Weight ≤5.5 kg ≤6 kg
Port Layout 24 × 10G SFP+ + 6 × 100G QSFP28 48 × 10G SFP+ + 6 × 100G QSFP28
Switching Capacity 1680 Gbps 2160 Gbps
Packet Forwarding Rate 600 Mpps 600 Mpps
Forwarding Latency ＜1 μs ＜1 μs
Shared Packet Buffer 10 MB 10 MB
CPU Configuration Quad-core 2.0 GHz Quad-core 2.0 GHz
Storage 1GB Flash + 4GB SDRAM 1GB Flash + 4GB SDRAM
Management Interfaces 1 Serial Console, 1 Mini USB, 1 USB, 1 GE out-of-band copper port 1 Serial Console, 1 Mini USB, 1 USB, 1 GE out-of-band copper port
Power Slots 2 hot-swappable redundant PSU slots 2 hot-swappable redundant PSU slots
Power Input Range AC:90~264V; DC:-36~-72V AC:90~264V; DC:-36~-72V
Fan Module 3 hot-swappable fans, bidirectional airflow (front-to-rear / rear-to-front) 3 hot-swappable fans, bidirectional airflow
Min Power Consumption (Single AC) 29 W 29 W
Max Power Consumption (Single AC) 131 W 143 W
MTBF 63.4 Years 60.8 Years
MTTR 1 Hour 1 Hour
Operating Temperature 0°C ~ 45°C 0°C ~ 45°C
Operating Humidity 5%~95% non-condensing 5%~95% non-condensing
Lossless Network Suite RoCEv2, PFC, ECN, DCBX, ETS RoCEv2, PFC, ECN, DCBX, ETS
Virtualization Protocols IRF2, DRNI(M-LAG), EVPN-VXLAN IRF2, DRNI(M-LAG), EVPN-VXLAN
SDN Support OpenFlow 1.3, NETCONF, Python/Ansible API OpenFlow 1.3, NETCONF, Python/Ansible API
Traffic Monitoring sFlow, ERSPAN Remote Mirror, gRPC Telemetry sFlow, ERSPAN Remote Mirror, gRPC Telemetry
Security Features uRPF, ARP/DDoS defense, multi-layer ACL, IP-MAC-Port binding uRPF, ARP/DDoS defense, multi-layer ACL, IP-MAC-Port binding
