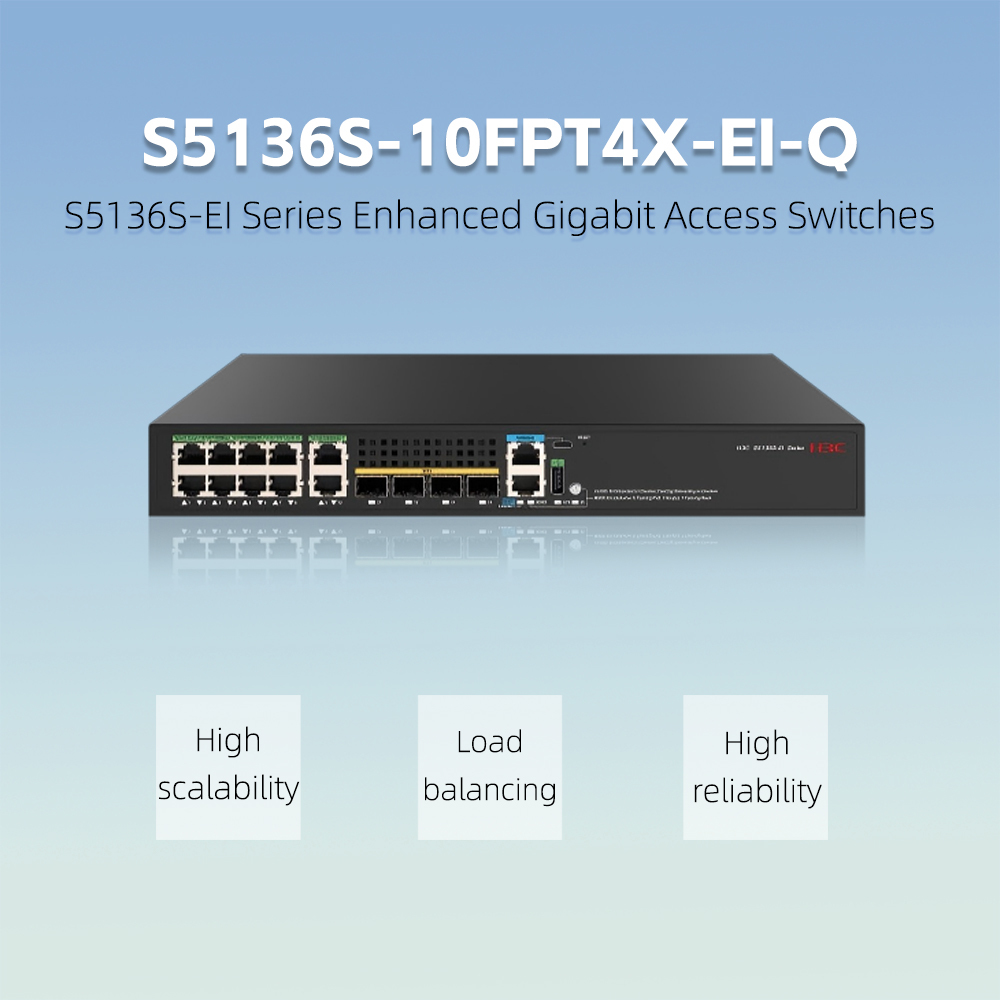

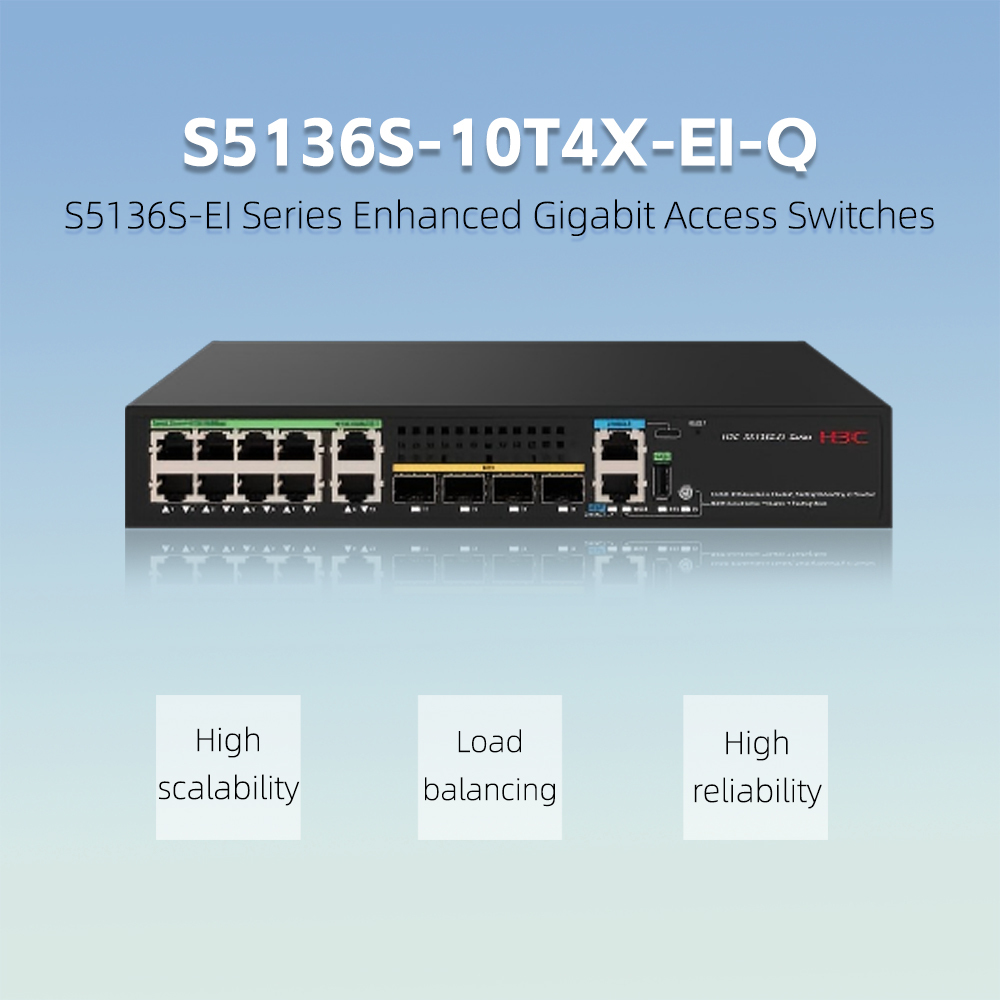

H3C S5136S‑10FPT4X‑EI‑Q / S5136S‑10T4X‑EI‑Q Fanless Gigabit Access Switch with 10G SFP+ Uplink & IRF2 Stacking
H3C S5136S‑10FPT4X‑EI‑Q / S5136S‑10T4X‑EI‑Q Fanless Gigabit Access Switch with 10G SFP+ Uplink & IRF2 Stacking
H3C S5136S‑10FPT4X‑EI‑Q / S5136S‑10T4X‑EI‑Q Fanless Gigabit Access Switch with 10G SFP+ Uplink & IRF2 Stacking
H3C S5136S‑10FPT4X‑EI‑Q / S5136S‑10T4X‑EI‑Q Fanless Gigabit Access Switch with 10G SFP+ Uplink & IRF2 Stacking
Specifications
Product Type :
Managed Gigabit Access Switch (Layer 2, with advanced L3 routing)
Dimension :
44 × 266 × 161 mm/ 44 × 330 × 230 mm
Supply Ability :
500
Console Port :
1
communication mode :
Full-Duplex & Half-Duplex
Model Number :
S5136S-8FP4XS-EI-Q/S5136S-8T4XS-EI-Q
Input Voltage :
Rated voltage range: 100 VAC to 240 VAC @ 50 Hz or 60 Hz
Price :
$258(According to the Model and configuration requirements)
Packaging Details :
Original packaging
Port Switching Capacity :
100Gbps
10/100/1000 Base-T port :
8
Payment Terms :
L/C,T/T,Western Union
Warranty :
3 years
Place of Origin :
China
Fan :
N/A
CPU :
Dual Core, 1.2GHz
Delivery Time :
Depending on the order
Forwarding Rate :
75Mpps
Brand Name :
H3C
System switching capacity :
336Gbps
Ports :
8*10/100/1000 Base-T port
MOQ :
1
Description
H3C S5136S 10 Ports Fanless Gigabit Access Switch With 10G SFP+ Uplink

H3C S5136S Series 8 ports Gigabit Access Switches with IRF2 stacking support.

Key Features
  • Fanless silent hardware design, fit for noise‑sensitive environments like hotels, classrooms and dormitories.
  • Dual‑core 1.2GHz CPU with 2GB RAM, supports static route, RIP, OSPF complete L3 routing protocols.
  • IRF2 stacking supports up to 9 units as one logical device, single‑IP management with link redundancy.
  • Type‑C console plus independent OOB port, ZTP zero‑touch provisioning and Cloudnet remote O&M.
  • Single‑port triple authentication and ARP defense, full enterprise‑grade security for LAN access protection.
  • Four SFP+ 10G uplink ports, gigabit access with 10G uplink to meet bandwidth expansion requirements.
  • License‑free for all software features without extra subscription fees, lower network cost for SMEs.
Technical Specifications
CPU Dual‑Core 1.2GHz Dual‑Core 1.2GHz
SDRAM / Flash 2GB / 1GB 2GB / 1GB
Dimension(H×W×D) 44 × 330 × 230 mm 44 × 266 × 161 mm
Full‑load Weight ≤2.3 kg ≤1.2 kg
Total PoE Budget 125W N/A
Cooling Mode Fanless quiet design Fanless quiet design
Latency(64‑byte) ≤2.1μs ≤2.1μs
Management Interface Console,Type‑C Console,1×GE OOB,USB Console,Type‑C Console,1×GE OOB,USB
Max Stacking Bandwidth 80Gbps 80Gbps
Input Voltage AC 90‑264V AC 90‑264V
Operating Temperature -5℃ ~ 50℃ -5℃ ~ 50℃
Virtualization IRF2 stacking, cross‑device link aggregation IRF2 stacking, cross‑device link aggregation
Routing Protocol Static route, RIP, OSPF IPv4/IPv6 Static route, RIP, OSPF IPv4/IPv6
Security Features 802.1X/Portal/MAC triple‑auth, ARP defense 802.1X/Portal/MAC triple‑auth, ARP defense
O&M Capability Cloudnet, SmartMC, ZTP zero‑touch provisioning Cloudnet, SmartMC, ZTP zero‑touch provisioning
