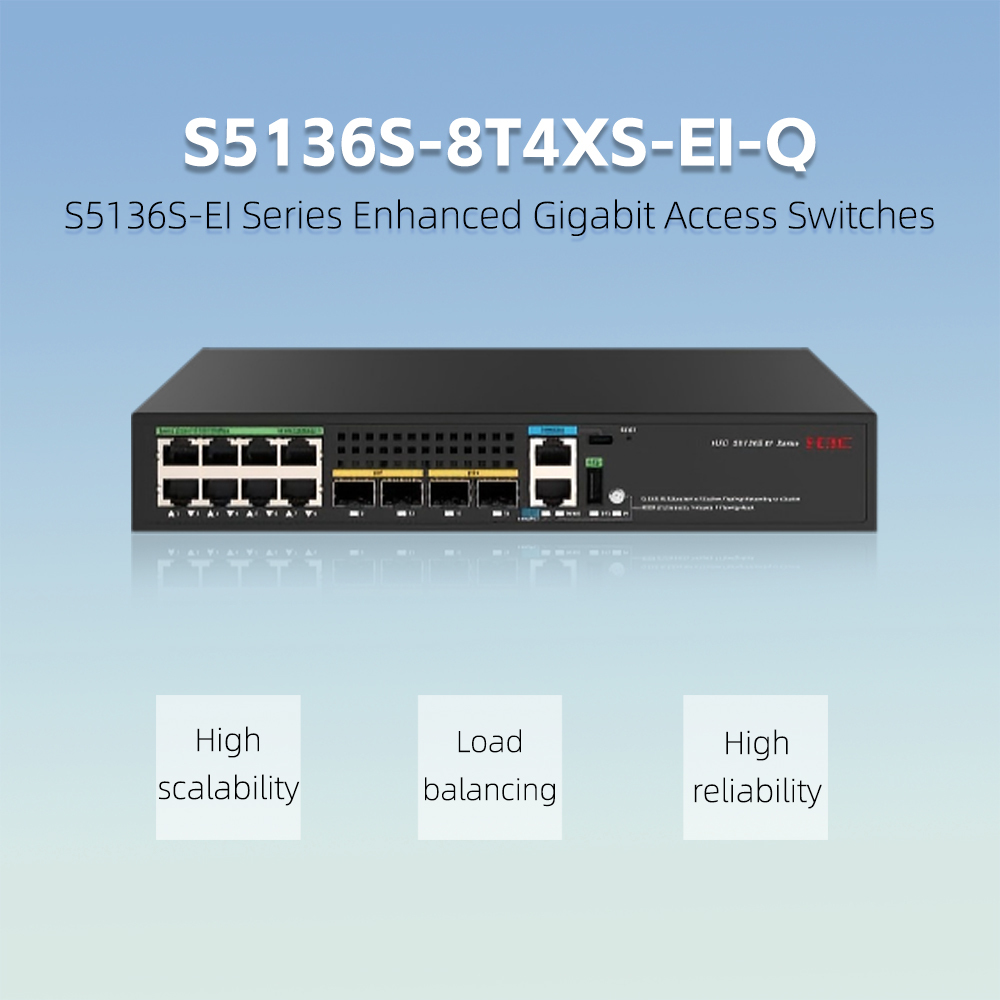

H3C S5136S 8 ports Fanless Gigabit Access Switch With 10G SFP+ Uplink, IRF2 Stacking Supported
H3C S5136S 8 ports Fanless Gigabit Access Switch With 10G SFP+ Uplink, IRF2 Stacking Supported
H3C S5136S 8 ports Fanless Gigabit Access Switch With 10G SFP+ Uplink, IRF2 Stacking Supported
H3C S5136S 8 ports Fanless Gigabit Access Switch With 10G SFP+ Uplink, IRF2 Stacking Supported
Specifications
Model Number :
S5136S-8FP4XS-EI-Q/S5136S-8T4XS-EI-Q
Port Switching Capacity :
60Gbps
Place of Origin :
China
System Switching Capacity :
336Gbps
Supply Ability :
500
Price :
$252(According to the Model and configuration requirements)
Packaging Details :
Original packaging
Dimension :
44 * 266 * 161 mm
Payment Terms :
L/C,T/T,Western Union
Operating Temp :
-5℃ ~ 50℃
MOQ :
1
CPU :
Dual-Core 1.2GHz
Delivery Time :
Depending on the order
Brand Name :
H3C
Forwarding Rate :
45Mpps
Description
H3C S5136S 8 Ports Fanless Gigabit Access Switch With 10G SFP+ Uplink
H3C S5136S Series 8 ports Gigabit Access Switches with IRF2 stacking support, designed for enterprise network access scenarios.
Key Features
  • Fanless silent design - Ideal for noise-sensitive environments like classrooms, hotels, and dormitories
  • Dual-core 1.2GHz CPU with 2GB RAM - Supports static route, RIP and OSPF L3 routing protocols
  • IRF2 virtual stacking - Supports up to 9 units as one logical device, simplifying management and enhancing link redundancy
  • Type-C Console plus independent OOB port - ZTP zero-touch provisioning and Cloudnet remote cloud O&M supported
  • Comprehensive security suite - Supports 802.1X/Portal/MAC triple-authentication and ARP attack defense
  • Built-in SFP+ 10G uplink ports - Gigabit access with 10G uplink for high-density enterprise access
  • All software features included - No extra license fees, reducing network investment for SME customers
Technical Specifications
Item S5136S-8FP4XS-EI-Q S5136S-8T4XS-EI-Q
Port Layout 8×10/100/1000BASE-T PoE+, 2×GE SFP, 2×1G/10G SFP+ 8×10/100/1000BASE-T, 2×GE SFP, 2×1G/10G SFP+
Port Switching Capacity 60Gbps 60Gbps
Forwarding Rate 45Mpps 45Mpps
System Switching Capacity 336Gbps 336Gbps
CPU Dual-Core 1.2GHz Dual-Core 1.2GHz
SDRAM / Flash 2GB / 1GB 2GB / 1GB
Dimension (H×W×D) 44 × 266 × 161 mm 44 × 266 × 161 mm
Full-load Weight ≤1.5 kg ≤1.1 kg
PoE Total Budget 125W N/A
Cooling Mode Fanless quiet design Fanless quiet design
Latency (64-byte) ≤2.1μs ≤2.1μs
Management Port Console, Type-C Console, 1×GE OOB, USB Console, Type-C Console, 1×GE OOB, USB
Max Stacking Bandwidth 40Gbps 40Gbps
Input Voltage AC 90-264V AC 90-264V
Operating Temperature -5℃ ~ 50℃ -5℃ ~ 50℃
Virtualization IRF2 stacking, cross-device aggregation IRF2 stacking, cross-device aggregation
Software Feature Static route, RIP, OSPF, OpenFlow1.3 Static route, RIP, OSPF, OpenFlow1.3
Security 802.1X, Portal, MAC auth, ARP defense 802.1X, Portal, MAC auth, ARP defense
O&M Cloudnet cloud management, SmartMC, ZTP Cloudnet cloud management, SmartMC, ZTP
