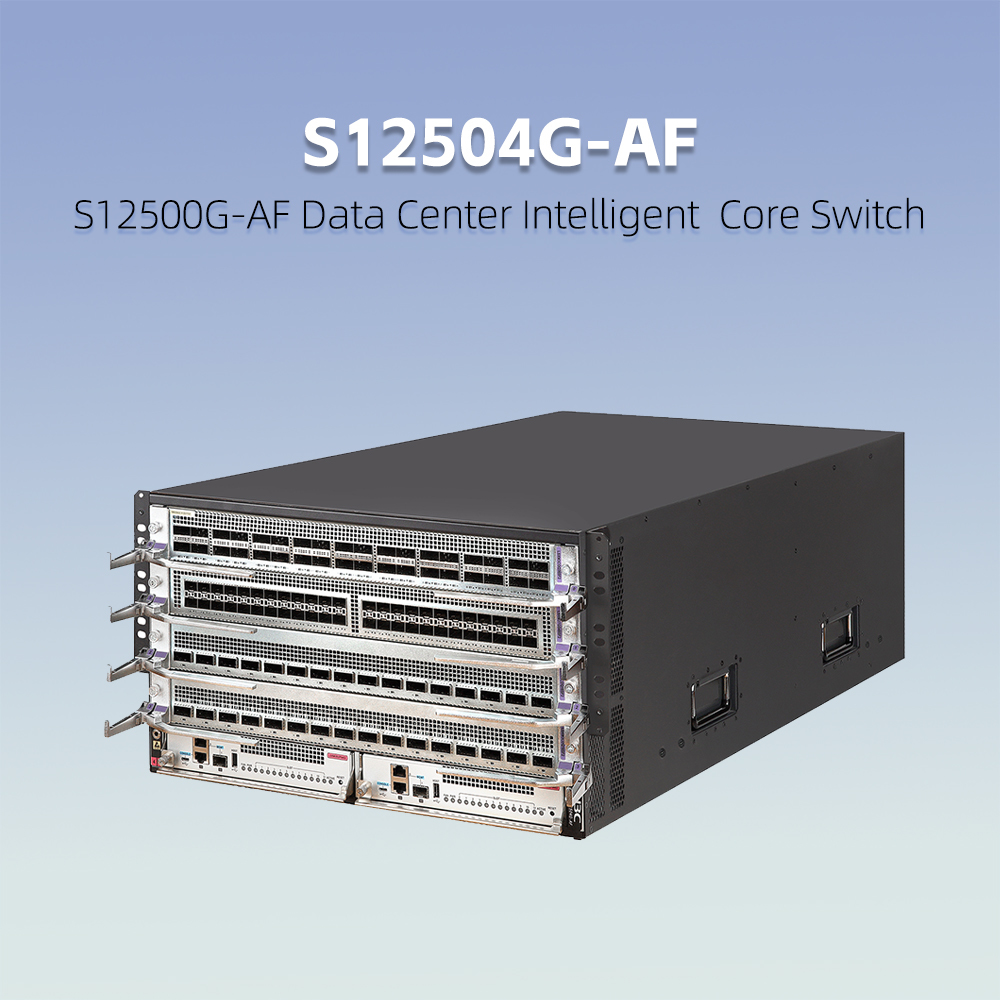

S12504G-AF Data Center Intelligent Core Switch
S12504G-AF Data Center Intelligent Core Switch
Specifications
Model Number :
S12504G-AF
communication mode :
Full-Duplex & Half-Duplex
Supply Ability :
500
Dimensions (W×D×H, mm) :
264 x 440 x 857 mm (6U) 10.4 x 17.3 x 33.7 in
LPU slots :
4
Delivery Time :
Depending on the order
Packet forwarding rate :
21600Mpps
Place of Origin :
China
MOQ :
1
Price :
$1999(According to the Model and configuration requirements)
Packaging Details :
Original packaging
Warranty :
3 years
Payment Terms :
L/C,T/T,Western Union
Weight :
≤ 110 kg ≤ 242.5 lb
MPU slots :
2
Name :
H3C S12504G-AF
Port Switching capacity :
57.6T/387Tbps
Brand Name :
H3C
Products Item :
Data Center Switches-Core Switch
Description
S12504G-AF Data Center Intelligent Core Switch
Key Features
  • Advanced CLOS+ Switching Architecture: Midplane-free, control-data plane separation with fabric, fan and power redundancy. Enables seamless bandwidth expansion for data center core networks.
  • Built-in AI Intelligence: Works with Seerblade AI module (T-series card required). Delivers 123 TFlops computing power and dedicated network-oriented AI algorithms for smart network operation.
  • Comprehensive Virtualization for Cloud DC: Supports IRF2, MDC, EVPN+VXLAN, M-LAG(DRNI) and ROCE lossless transport. Implements multi-tenant isolation and large-scale Layer-2 interconnection.
  • High-Availability & Energy-Saving Design: Distributed multi-engines offer millisecond fault detection and 50ms protection. Smart power and fan management cut power consumption and prolong device lifespan.
Technical Specifications
Item S12504G-AF
Buffer 32M (T series LPU); 36M (S series LPU)
Switching capacity 57.6T/387 Tbps
Throughput 21600 Mpps
MPU slots 2
LPU slots 4
Maximum power consumption 5800 W
Weight (full configuration) ≤ 110 kg (≤ 242.5 lb)
Dimensions (H * W * D) 264 * 440 * 857 mm (6U) / 10.4 * 17.3 * 33.7 in
MPU name LSXM1SUP04T2 / LSXM3SUP04S2
MPU processor Quad Core 2.2 GHz
MPU SDRAM 16 GB
MPU flash T-series:8 GB; S-series:2 GB
MPU console port 1
MPU MGMT ports 2
MPU USB port 1
Redundancy Redundant MPUs, switching fabric modules, power modules and fan trays
Operating temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)
Storage temperature -40 °C ~ 70 °C (-40 °F ~ 158 °F)
Humidity 5%-95% (non-condensing)
Green feature Support 802.3az Energy-Efficient Ethernet
