Central loose tube cable,MM OM4,water blocking glass yarn,6.0mm for outdoor/indoor use
Central loose tube cable,MM OM4,water blocking glass yarn,6.0mm for outdoor/indoor use
Central loose tube cable,MM OM4,water blocking glass yarn,6.0mm for outdoor/indoor use
Central loose tube cable,MM OM4,water blocking glass yarn,6.0mm for outdoor/indoor use

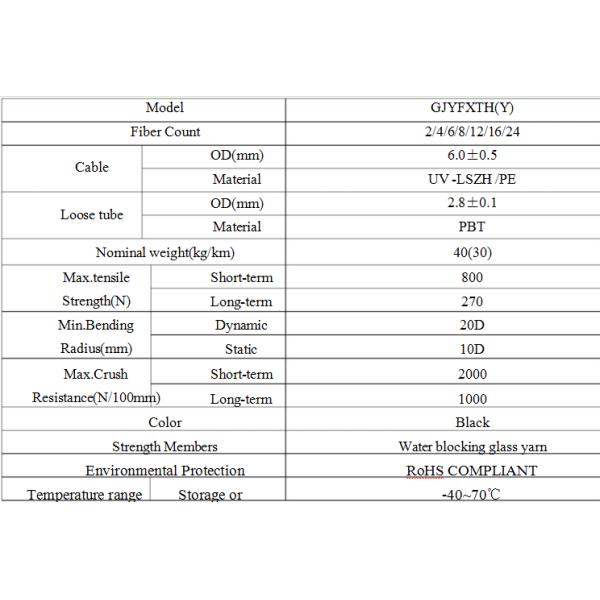

Specifications
Brand Name :
H-Lin
Model Number :
GJYFXTH(Y)
Certification :
CE,Rohs
Place of Origin :
China
MOQ :
1km
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50000 Meter/Meters per Day
Delivery Time :
10days after get payment
Packaging Details :
1km/wooden drum,2km or 3km/wooden drum ,as client's request
Type :
GJYFXTH(Y)
Cable diameter :
6.0±0.5
Fiber count :
2/4/6/8/12/16/24
Loose Tube Material :
PBT
Cable material :
UV -LSZH /PE
Color :
Black jacket
Strength Members :
Water blocking glass yarn
Description

Central loose tube cable,MM OM4,water blocking glass yarn,6.0mm for outdoor/indoor use

Product Description
Purchasing Risk
Many domestic small factories used inferior or waste optical fibers to imitate A-grade optical fibers, non-woven fabrics as water-blocking tapes, waste electric-wires and rubber slippers smashed as raw materials for the outer sheath of cable. Those inferior cables will cause many problems such as short transmission distance, low bandwidth, intermittent signal and easy-to-crack and water seepage of the cable jacket, etc. For the recent years, there are many cases that many overseas customers who bought such inferior cables from China were frustrated to find that the cables can not be used after constructing. It’s not workable to return them to China as the Chinese government will levy high import duty on optical fiber cables. The customers cannot claim for any compensation and suffered huge losses.

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

Optical Characteristics:

Central loose tube cable,MM OM4,water blocking glass yarn,6.0mm for outdoor/indoor use

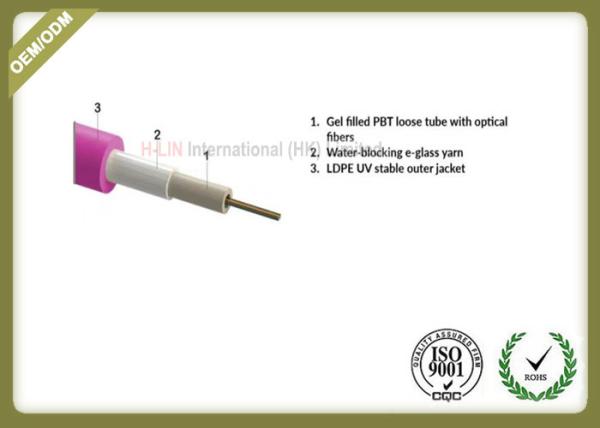

Cross Section:

Central loose tube cable,MM OM4,water blocking glass yarn,6.0mm for outdoor/indoor use

Application:

Outdoor/Indoor Use

Packing:

Label will be sticked at wooden drum,include style of optical cable and fiber account,length,Gross weight KGS,Total drums amount,manufacture date
