24 Cores Outdoor Fiber Optic Cable G652D /G657 GYFTS With FRP Strength Member
24 Cores Outdoor Fiber Optic Cable G652D /G657 GYFTS With FRP Strength Member
24 Cores Outdoor Fiber Optic Cable G652D /G657 GYFTS With FRP Strength Member
24 Cores Outdoor Fiber Optic Cable G652D /G657 GYFTS With FRP Strength Member
Specifications
Brand Name :
H-Lin
Model Number :
HLIN-GYFTS
Certification :
CE,Rohs
Place of Origin :
China
MOQ :
1km
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
500000 Meter/Meters per Day 1000km
Delivery Time :
10days after get payment
Packaging Details :
1km/wooden drum,2km or 3km/wooden drum ,as client's request
Type :
GYFTS
Central Strength Member :
FRP
Jacket :
PE
Outer diameter :
10.5~18.8+_0.5mm
Fiber count :
2~144core
Temperature range :
-40degree +70 degeree
Weight :
130~300kg
Description

GYFTS

Non-metal Central Strength Member and Steel Tape Optical Cable

Description:

24 fo outdoor armour optical fiber g652d /g657 cable GYFTS

GYFTS is used for duct or aerial applications. These steel tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance. It is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene; High strength loose tube that is hydrolysis resistant. H-LIN provides GYFTS from 4 fiber cores to 288 fiber cores. Both single mode type and multimode types are available. We also provide Customized Service such as fiber number, fiber color and cable length, etc.

Loose tube cable with non-metal strength member,and polyethylene coated steel armour.

All the interstices of cable core are filled with water blocking compound.

Characteristics.

A: Accurate fiber excess length ensures good performance under mechanical stress and good temperature performance.

B: The Central strength member is made of high modulus glass fiber reinforced plastic rod(FRP)

C:The non-metal central strength member and steel tape caused by lightning induction.

D:The loose tubes are filled with special filling compound for crucial protection of the optical fibers.

E:Complete water blocking construction ensures good water blocking and moisture-proof performance.

F:The longitudinal binding steel tape functions as protection as well as reinforcing the crush resistance and mechanical performance.

Packing:

Label will be sticked at wooden drum,include style of optical cable and fiber account,length,Gross weight KGS,Total drums amount,manufacture date

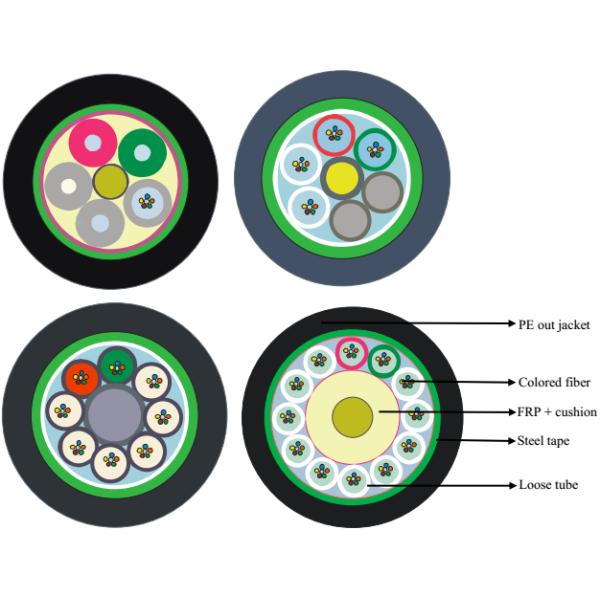

Fiber count
Structure
Fibers per tube
Loose tube diameter(mm)
CSM diameter/pad diameter(mm)
Thickness of outer jacket(mm)
Cable diameter(mm)
Cable Weight(kg/km)
4
1+6
4
1.8 ±0.1
2.2 /2.2
1.6±0.1
10.0±0.5
97
6
1+6
6
1.8 ±0.1
2.2 /2.2
1.6±0.1
10.0±0.5
97
8
1+6
4
1.8 ±0.1
2.2 /2.2
1.6±0.1
10.0±0.5
98
12
1+6
6
1.8 ±0.1
2.2 /2.2
1.6±0.1
10.0±0.5
98
18
1+6
6
1.8 ±0.1
2.2 /2.2
1.6±0.1
10.0±0.5
98
24
1+6
6
1.8 ±0.1
2.2 /2.2
1.6±0.1
10.0±0.5
99
30
1+6
6
1.8±0.1
2.2 /2.2
1.6±0.1
10.0±0.5
100
36
1+6
6
1.8 ±0.1
2.2 /2.2
1.6±0.1
10.0±0.5
101
48
1+6
12
2.0±0.1
2.3 /2.3
1.6±0.1
10.7±0.5
112
60
1+6
12
2.0±0.1
2.3 /2.3
1.6±0.1
10.7±0.5
113
72
1+6
12
2.0±0.1
2.3 /2.3
1.6±0.1
10.7±0.5
114
84
1+7
12
2.0±0.1
3.0 /3.0
1.6±0.1
11.4±0.5
130
96
1+8
12
2.0±0.1
2.6/3.5
1.6±0.1
12.0±0.5
140
108
1+9
12
2.0±0.1
2.6 /4.2
1.6±0.1
12.7±0.5
155
120
1+10
12
2.0±0.1
2.6/ 4.9
1.6±0.1
13.4±0.5
171
132
1+11
12
2.0±0.1
3.0 /5.5
1.6±0.1
14.0±0.5
187
144
1+12
12
2.0±0.1
3.0 /6.3
1.6±0.1
14.8±0.5
207
Item
Parameters
Loose tube
Material
PBT
Color
All colors display
Filler
Material
PE
Color
Black
CSM
Material
FRP
Armoured
Material
Plastic coated steel strip
Outer jacket
Material
MDPE
Color
Black
Min. bending radius
Static
10 times cable diameter
Dynamic
20 times cable diameter
Repeating bending
Load:150N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Tensile performance
Short term
1500N
Crush
Short term
1000N/100mm
Torsion
Load:150N; number of cycles:10; twist angle:±90° No obvious addition attenuation, no fiber break and no cable damage.
Impact
Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.
Short term
1000N/100mm
