Outdoor fiber optical cable GYFTA Loose tube non-metallic with aluminum tape with PE jacket
Outdoor fiber optical cable GYFTA Loose tube non-metallic with aluminum tape with PE jacket
Outdoor fiber optical cable GYFTA Loose tube non-metallic with aluminum tape with PE jacket
Outdoor fiber optical cable GYFTA Loose tube non-metallic with aluminum tape with PE jacket
Specifications
Brand Name :
H-LIN
Model Number :
GYFTA
Certification :
CE,Rosh
Place of Origin :
Shenzhen,China
MOQ :
1km
Price :
Negotiable
Supply Ability :
80km / day
Packaging Details :
Carton or wooden drum
Fiber count: :
2-288 core
Jacket: :
PE
fiber optic type :
G652D or G652B
Temperature range :
-40℃~+70℃
Non-Centeral strength member: :
FRP
certificate: :
ISO/CE/RoHS/SGS
Installation: :
Aerial
Description

Stranded loose tube non-metallic with aluminum tape fiber optic cable GYFTA

Description:

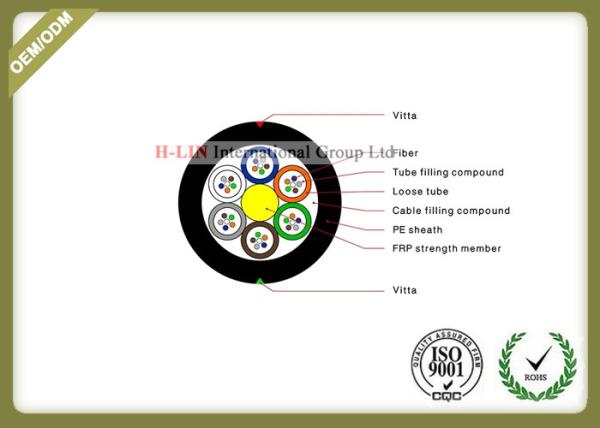

The fibres are positioned in a loose tube made of PBT. The tube is filled with a water-resistant filling compound. A fibre reinforce plastic locates in the center of core as a non-metallic strength member. The tubes (and the fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

Specifications

a)Low loss,low chromatic dispersion;

b)Excellent flexible capability and protection capability against bending;

c)Special excess-length control method and cabling mode ensures perfect machanical

d)and enviromental properties;

e)Filling water-blocking jelly brings entirly cross section double water blocking capability

Application

l Suitable for a minefield and electronagnetic interference, seritously aera of cable distribuion

I Suitable for Aerial, trunk power transmission system

I Access network and local network in high electromagnetic interfering places

Transmission Charactics:

Fiber style Unit SM G652D MM 50/125 MM 62.5/125 MM OM3-300
Condition nm 1310/1550 850/1300 850/1300 850/1300
Attenuation dB/km 0.4/0.3 3.5/1.5 3.5/1.5 3.5/1.5
Dispersion 1550nm Ps (nm ·km) ≤18 ----- ----- Dispersion
1625nm Ps (nm ·km) ≤22 ----- -----
Bandwidth 850nm MHZ ·.km ----- ≥400 ≥160 Bandwidth
1300nm MHZ. ·km ----- ≥800 ≥500
Zero dispersion wavelength nm ≥1302 ,≤1322 ------ ------ ≥1295 ,≤1320
Zero dispersion slope nm ≤0.091 ------ ------ ≤0.11
PMD Maximum Individual Fibre um ≤0.2 ------ ------ ------
PMD Design Link Value Ps/(nm2*km) ≤0.08 ------ ------ ------
Fibre cutoff wavelength λc nm ≥1180 ,≤1330 ------ ------ ------
Cable cutoff wavelengthλcc nm ≤1260 ------- ------- -------
Mode field diameter(MFD) 1310nm um 9.2±0.4 ------ ------- -------

Technical parameter:

Fiber count(core) 2-42 44-72 74-84 86-96 98-108 110-120 122-132 134-144
Outer diameter(mm) 10.4 11.2 12.2 14.0 14.8 15.8 16.6 17.4
Cable weigh(kg/km) 90 100 115 180 195 220 240 265
Minimum tensile strength(N) Short-term: 1500
Long-term: 600
Minimum crushing(N/100mm) Short-term: 1000
Long-term: 300
Bending radius Static:15 times of diameter Dynamic:30 times of diameter

Detailes Image:
