Middle Size Automatic Armature Wire Twisting Machine for 100 Sets/Year Production
Middle Size Automatic Armature Wire Twisting Machine for 100 Sets/Year Production
Specifications
Model NO. :
WIND-HT
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description

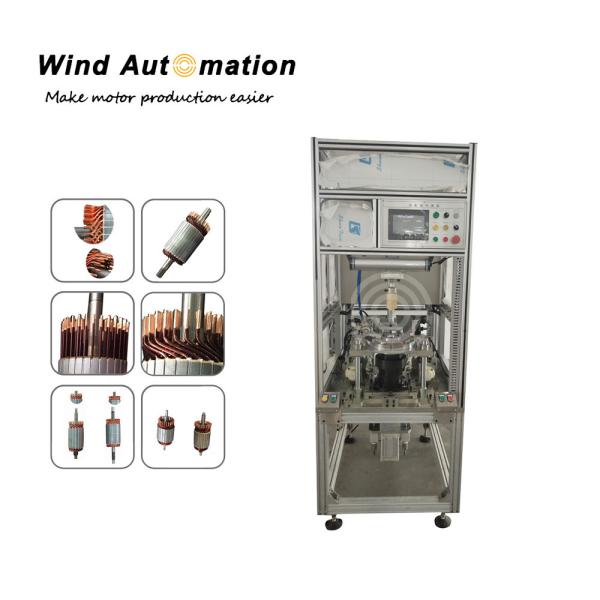

Automatic Starter Armature Wire Twisting Machine
Middle Size Automatic Armature Wire Twisting Machine for 100 Sets/Year Production

This wire twisting machine adopts a vertical type structure. It is controlled by servo motor. Coil twisting angle can be customized.

Working process
Manually put the rotor into the positioning sleeve → press the start button with both hands → tighten the cylinder to tighten the rotor → insert the cylinder action → servo motor twist→ Rebound → Eject → Servo Return → Complete

Application
Starters Armature wire twisting
Starter-generators for Automotive Car Vehicle Armature wire twisint
Starter of Aircraft Industries Areospace starter armature wire twisting
BSG for Hybrid car Electric car stator wire twisting (two layers, four layers)


Features
(1) The frame body is made of angle steel, sprayed, color: computer ash.
(2) The sheet metal is sprayed in the same color as the frame, and the countertop is finely ground.
(3) Schneider switching power supply, low voltage electrical, and main switch control.
(4) Taiwan AIRTAC cylinder, solenoid valve and pneumatic unit (triple piece).
(5) Mitsubishi PLC program control, WEINVIEW man-machine interface
(6) Delta servo motor, Taiwan precision planetary reducer
(7) Linear guide: Taiwan HIWIN
(8) With single-action / automatic function, the fault automatically stops.
(9) With output setting, production count, delay, etc.

Specification
(1) Working voltage: 380VAC 50HZ
(2) Working pressure: MPa 5 . 0 ≥
(3) Equipment efficiency: about 15 seconds / piece
(4) Equipment weight: about 900KG
(5) Basic equipment size: 900*1100*1950mm
