Specifications
Model NO. :
WIND-HT
Twisting Drive :
Servo Motor
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Starter Wire Twisting Machine Coil Twisting Machine
Starter Wire Twisting Machine Coil Twisting Machine

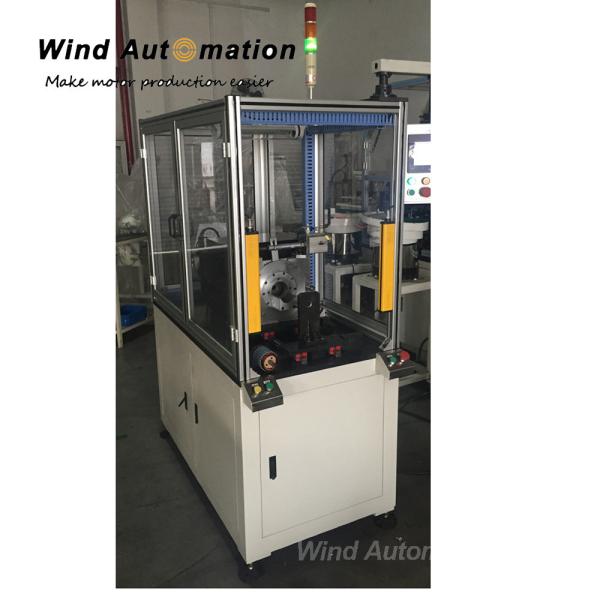

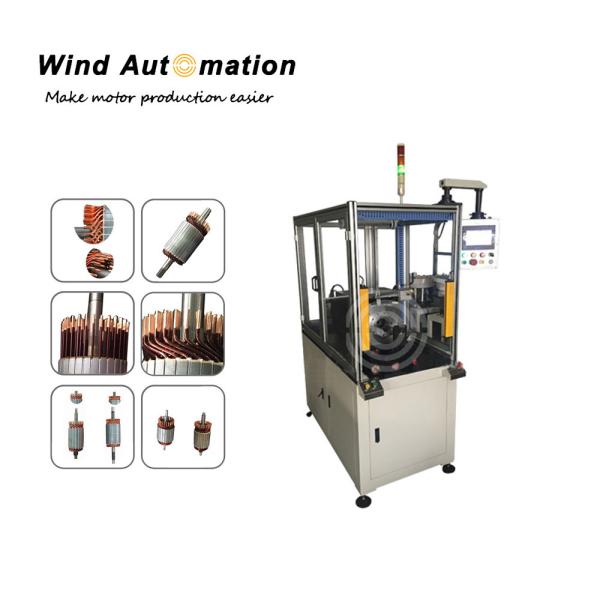

This servo controlled twisting machine is an ungrade model. The twisting method adopts double servo motor twisting method, The inserted protection device can effectively ensure that the root of the copper wire does not puncture with the copper chip, so as to guarantees the final quality. The equipment can automatically complete the clamping, automatically feed the servo twist head to a pre-set angle, rebound to a set angle, and eject. etc.

(1) Specification
Power Supply AC 380V
Air Pressure Supply Min 0.5 Mpa
Machine Power about 3.5 kW
Twisting Angle Adjustable on touch screen
Cycle time 6s/pc
Weight 750KG
Dimension 950x1600x1800mm


(2) Application

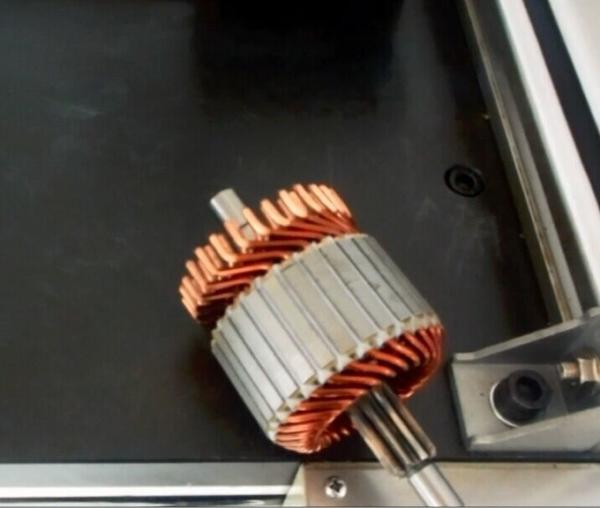

Suitable for armatures requiring high quality and reliability of starters and starter-generators for aircraft Industries.

(3) Features
Precise twisting angle,
Easy operation
Easy replacement of tooling fixtures
Good versatility
Fully automatic twisting cycle after loading of the armature
Coil twisting angle can be customized
Fast and easy readjustment

(3) Hairpin Twisting Machine working process:

Manually put the rotor into the positioning sleeve → press the start button with both hands → tighten the cylinder to tighten the rotor → insert the cylinder action → servo motor twist→ Rebound → Eject → Servo Return → Complete

Starter Wire Twisting Machine Coil Twisting Machine
Starter Wire Twisting Machine Coil Twisting Machine
Starter Wire Twisting Machine Coil Twisting Machine
