5000.00cm * 1000.00cm * 850.00cm WIND-JF Armature Epoxy Powder Coating Machinery
5000.00cm * 1000.00cm * 850.00cm WIND-JF Armature Epoxy Powder Coating Machinery
Specifications
Model NO. :
WIND-JF
Condition :
New
Customized Service :
Provided
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Package Size :
5000.00cm * 1000.00cm * 850.00cm
Package Gross Weight :
1000.000kg
Description

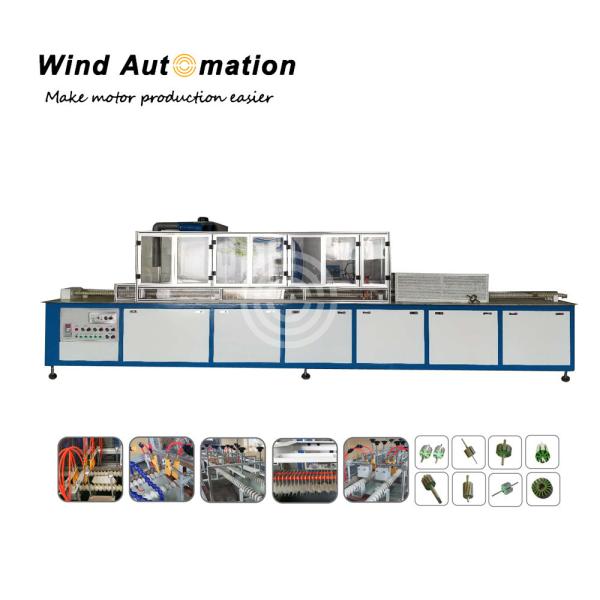

Armature Epoxy Powder Coating Machinery
5000.00cm * 1000.00cm * 850.00cm WIND-JF Armature Epoxy Powder Coating Machinery
This powder coating machine is widely used in mini rotor lamination coating. It is consisted of pre-heating zone, cooling zone, resin coating zone and curing zone.

(1) Features
Wide application
Suitable for mass production
High quality level of the powder process
With powder recylcing function
Fully automatic working cycle after loading of the armature
High efficiency, automation and productivity
Provide customized service
Automatic operation as a single unit or as a part of an automatic line

(2) Working Process
High frequency deoil---fan cooling---powder coating---powder clearning---curing---air cooling

(3) Application
It is widely used in automotive industries, such as ABS, HVAC, window lift, seat adjuster, sun roof and fuel pump armatures etc; as well as Industrial motor applications like tools, home appliances and so on.

(4)Specifications
Model 100 80GG 80GD 50H Lab model
note
Part size Max OD 160 120 120 100 200 Is able to be tailored produced
Max core length 50 50 50 50 80
Max shaft length 180 180 180 180 180
transfer speed m/min 0.1-1.5 0.1-1.5 0.1-1.5 0.1-1.5 Electronic driving Stepless adjustable
output(pc/h) 2500 1500 1500 800 10-60 фMax≤20mm
Curing method High frequency High frequency High frequency Curing oven Curing
oven		 Oven is prepared by customer
Coating thickness(mm) Adjustable within 0.15mm - 0.5mm

(5)Electrostatically Coating

Powder coating is a type of coating that is applied as a free-flowing, dry powder. The main difference between a conventional liquid paint and a powder coating is that the powder coating does not require a solvent to keep the binder and filler parts in a liquid suspension form. The coating is typically applied electrostatically and is then cured under heat to allow it to flow and form a "skin". The powder may be a thermoplastic or a thermoset polymer. It is usually used to create a hard finish that is tougher than conventional paint. Powder coating is mainly used for coating of metals, such as household appliances, aluminium extrusions, drum hardware, and automobile and bicycle parts,such as armature,rotor,stator powder coating, Newer technologies allow other materials, such as MDF (medium-density fibreboard), to be powder coated using different methods.

For example, for the drill motor and power tool motor,as it rotate and working speed is very high, epoxy coating is mainly for abrasion protection.

5000.00cm * 1000.00cm * 850.00cm WIND-JF Armature Epoxy Powder Coating Machinery
5000.00cm * 1000.00cm * 850.00cm WIND-JF Armature Epoxy Powder Coating Machinery
5000.00cm * 1000.00cm * 850.00cm WIND-JF Armature Epoxy Powder Coating Machinery
