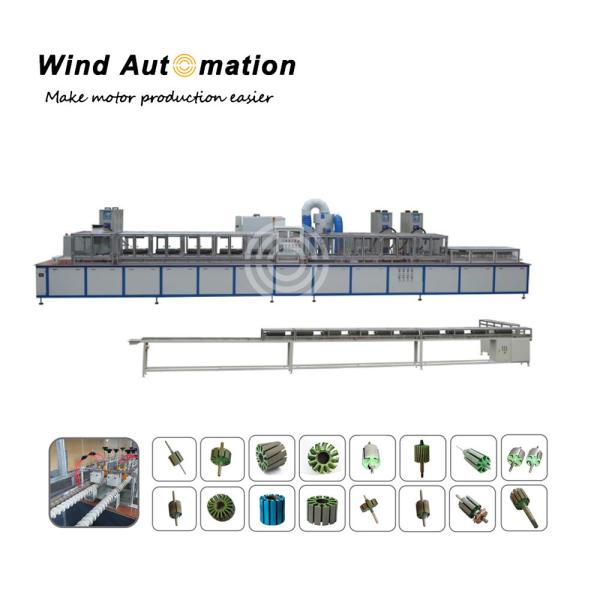

WIND-JF Electrostatic Resin Powder Coating Machine for Armature Rotor Stacks Encapsulation
WIND-JF Electrostatic Resin Powder Coating Machine for Armature Rotor Stacks Encapsulation
Specifications
Model NO. :
WIND-JF
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Electrostatic Epoxy Resin Coating Machine For Rotor Mass Production
WIND-JF Electrostatic Resin Powder Coating Machine for Armature Rotor Stacks Encapsulation
Powder coating process of this resign coating machine is conducted on the electrostatic fluid chamber, while powder curring process is achieved by high-frequency induction heater. It can also be used for mass production.

(1)Specifications
Model 100 80GG 80GD 50H Lab model
note
Part size Max OD 160 120 120 100 200 Is able to be tailored produced
Max core length 50 50 50 50 80
Max shaft length 180 180 180 180 180
transfer speed m/min 0.1-1.5 0.1-1.5 0.1-1.5 0.1-1.5 Electronic driving Stepless adjustable
output(pc/h) 2500 1500 1500 800 10-60 фMax≤20mm
Curing method High frequency High frequency High frequency Curing oven Curing
oven		 Oven is prepared by customer
Coating thickness(mm) Adjustable within 0.15mm - 0.5mm

(2) Working Process
High frequency deoil---fan cooling---powder coating---powder clearning---curing---air cooling

(3) Features
Wide application
Suitable for mass production
High quality level of the powder process
With powder recylcing function
Fully automatic working cycle after loading of the armature
High efficiency, automation and productivity
Provide customized service
Automatic operation as a single unit or as a part of an automatic line

(4) Application
It is widely used in automotive industries, such as ABS, HVAC, window lift, seat adjuster, sun roof and fuel pump armatures etc; as well as Industrial motor applications like tools, home appliances and so on.


WIND-JF Electrostatic Resin Powder Coating Machine for Armature Rotor Stacks Encapsulation
WIND-JF Electrostatic Resin Powder Coating Machine for Armature Rotor Stacks Encapsulation
WIND-JF Electrostatic Resin Powder Coating Machine for Armature Rotor Stacks Encapsulation
