Specifications
Model NO. :
WIND-IW-1
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Power Tool Armature Slot Insulation Wedge Folder and Inserter
Middle Size Power Tool Armature Slot Insulation Wedge Folder and Inserter with Design
This wedge inserter is equipped with safety door. During machine running or before machine completely stops, do not open the safety door or put your hand or other body part into the machine.

(1) Application
This is suitable for home appliance, mixer, meat grinder, air conditioner, refrigerator, vacuum cleaner, washing machine, juicer, mixer, various pump, power tool.

(2)Specification
Outside Dimension 910(L)X900(W)X1450(H)mm
Machine Weight ~250Kg
Motor Power 0.75Kw
Voltage 220V AC
Pressure 0.4-0.6Mp

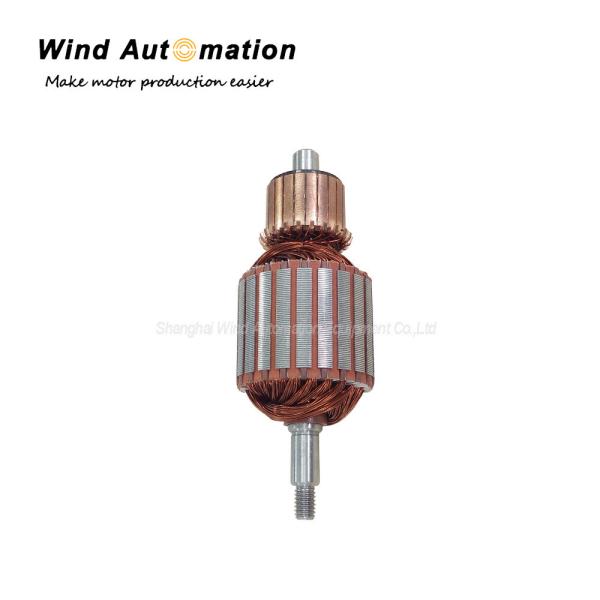

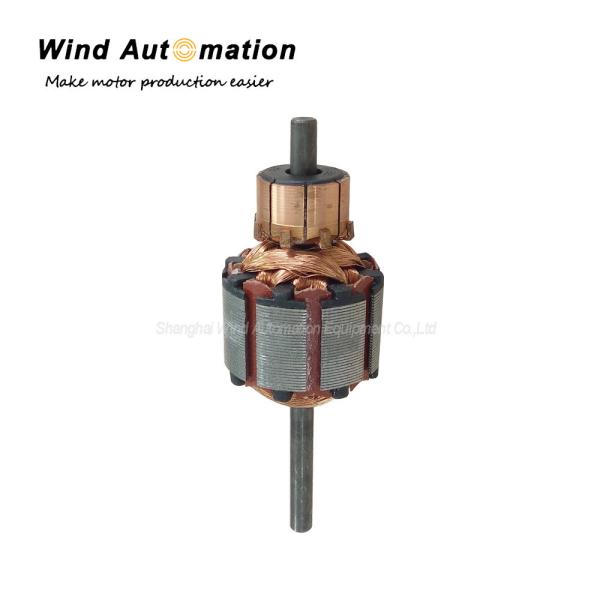

Manufacturing product Motor armature wedge
Armature O.D range φ20-φ55

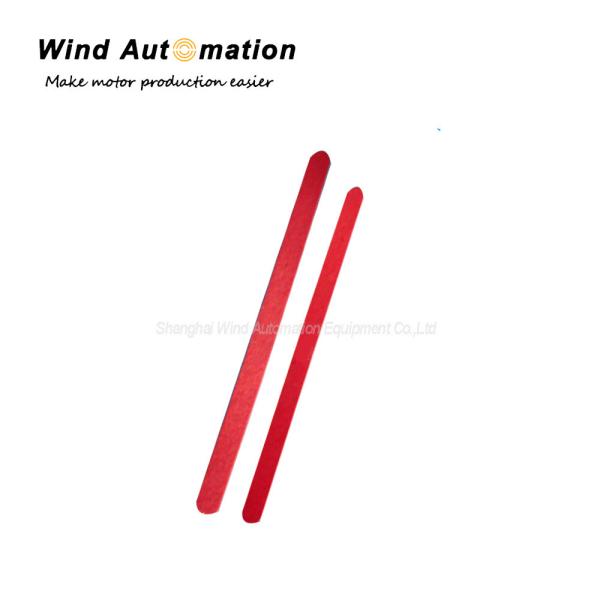

Length of wedge 15-60mm
Adjustable
(MAX) Width of wedge 8mm
Armature slot number 8-24 slots
Work procedure Feed-install fixture-plug in-discharge
Fixture Pneumatic mechanical fixture
Feeding form Automatic
Lubricant form Grease lubrication

(3)Feature
PLC control
Adjustable for different armature lengths
Quick and easy readjustment to other armature types
Precise wedge length control
Suitable for three shifts continuous production
Friendly designed operator's interface
Precise wedge formation and placement
