Specifications
Model NO. :
WIND-IW-1
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description

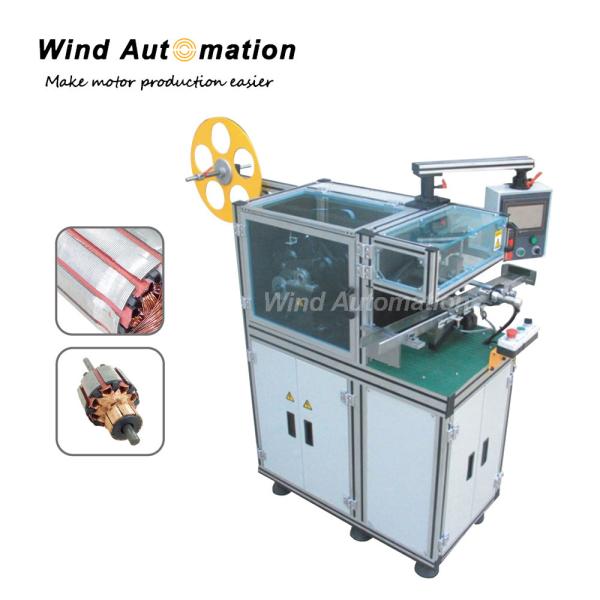

Wedge Insertion Machine for Rotor Slot after Winding
100 Sets/Year WIND-IW-1 Wedge Insertion Machine for Rotor Slot After Winding
There are two working status of this machine, auto and single action. While check machine condition or do maintenance, the switch should be set on single action status and the power supply should be turned off.


(1) Application
This is suitable for home appliance, mixer, meat grinder, air conditioner, refrigerator, vacuum cleaner, washing machine, juicer, mixer, various pump, power tool.

(2)Specification
Outside Dimension 910(L)X900(W)X1450(H)mm
Machine Weight ~250Kg
Motor Power 0.75Kw
Voltage 220V AC
Pressure 0.4-0.6Mp

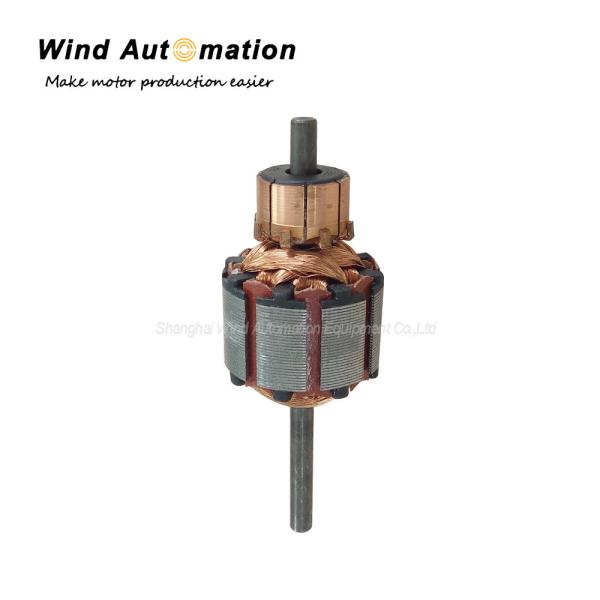

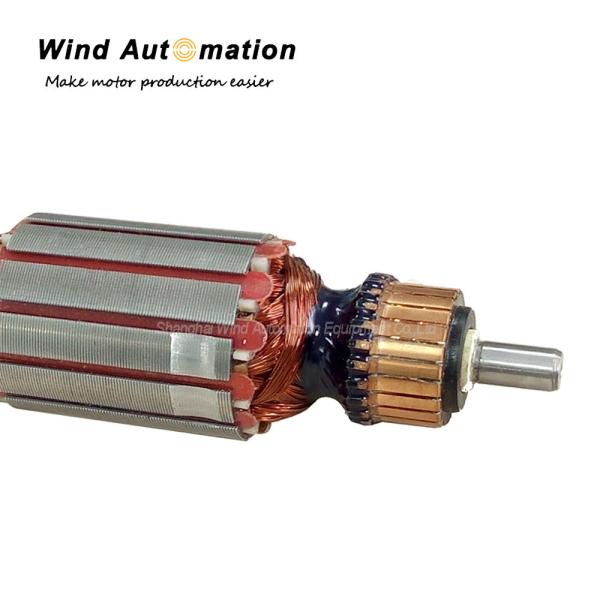

Manufacturing product Motor armature wedge
Armature O.D range φ20-φ55
Length of wedge 15-60mm
Adjustable
(MAX) Width of wedge 8mm
Armature slot number 8-24 slots
Work procedure Feed-install fixture-plug in-discharge
Fixture Pneumatic mechanical fixture
Feeding form Automatic
Lubricant form Grease lubrication

(3)Feature
PLC control
Adjustable for different armature lengths
Quick and easy readjustment to other armature types
Precise wedge length control
Suitable for three shifts continuous production
Friendly designed operator's interface
Precise wedge formation and placement
