NJ Type Cylindrical Roller Bearings With Brass Cage
NJ Type Cylindrical Roller Bearings With Brass Cage
Specifications
MOQ :
50-2000
Packaging Details :
Industrial Packing / Reference For Product Size
Delivery Time :
5-30 Working Days
Payment Terms :
T/T
Model Number :
NJ
WhatsApp :
8615851979614
Email :
Info@czhbearings.com
Description

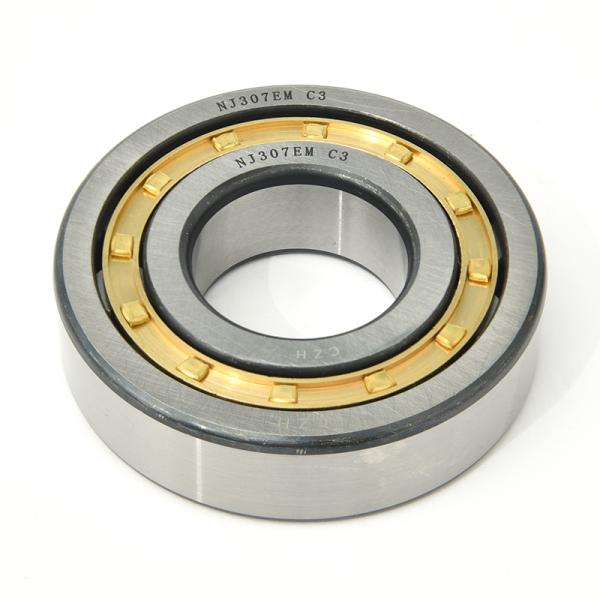

NJ Type Cylindrical Roller Bearings With Brass Cage

Heavy-duty radial cylindrical roller bearings are designed to provide the highest possible radial capacity for a given cross section, and to perform under heavy radial loads. These bearings incorporate improved internal proportions developed through computer-assisted optimization studies to make maximum use of the total available cross-sectional area. Controlled contour rollers redistribute end-stress concentration and provide more uniform distribution of the applied load.

RIF, RF type cylindrical roller bearings with bore sizes from 100 mm (3.937 in.) up to 700 mm (27.5 in.) are shown, and even larger sizes can be provided on special order.

The RIF, RF type cylindrical roller bearings consist of an outer ring, a complement of controlled contour rollers, a cage and an inner ring. Bearing rings and rollers are manufactured from bearing quality steel.

This RIF, RF type cylindrical roller bearings have the same characteristics as RIJ and RJ, except it incorporates a double-ribbed inner ring and a single-ribbed outer ring.

Dimension (mm) Load Rating
(KN)		 Limiting
Speed		 Weight Part Number 　 Dimension (mm) Load Rating
(KN)		 Limiting
Speed		 Weight Part Number
　
　
d D B Dynamlc Static RPM Kg 　 d D B Dynamlc Static RPM Kg
35 80 31 106 98 11000 0.73 NJ 2307 ECP 　 45 100 36 160 153 8500 1.35 NUP 2309 ECP
80 31 106 98 11000 0.75 NUP 2307 ECP 　 120 29 106 102 7500 1.78 NU 409
100 25 76.5 69.5 9500 1 NU 407 　 120 29 106 102 7500 1.7 NJ 409
100 25 76.5 69.5 9500 1.05 NJ407 　 50 80 16 46.8 56 9500 0.27 NU 1010 ECP
40 68 15 25.1 26 18000 0.22 NU1008 M 　 90 20 73.5 69.5 9000 0.49 NU 210 ECP
80 18 62 53 11000 0.42 NU 208 ECP 　 90 20 73.5 69.5 9000 0.5 NJ 210 ECP
80 18 62 53 11000 0.43 NJ 208 ECP 　 90 20 73.5 69.5 9000 0.51 NUP210 ECP
80 18 62 53 11000 0.4 NUP 208 ECP 　 90 20 73.5 69.5 9000 0.48 N 210 ECP
80 18 62 53 11000 37 N 208 ECP 　 90 23 90 88 9000 0.56 NU 2210 ECP
80 23 81.5 75 11000 0.54 NU 2208 ECP 　 90 23 90 88 9000 0.59 NJ 2210 ECP
80 23 81.5 75 11000 0.55 NJ 2208 ECP 　 90 23 90 88 9000 0.59 NUP 2210 ECP
80 23 81.5 75 11000 0.56 NUP 2208 ECP 　 110 27 127 112 8000 1.15 NU 310 ECP
90 23 93 78 9500 73 NU 308 ECP 　 110 27 127 112 8000 1.15 NJ 310 ECP
90 23 93 78 9500 75 NJ 308 ECP 　 110 27 127 112 8000 1.2 NUP 310 ECP
90 23 93 78 9500 0.68 NUP 308 ECP 　 110 27 127 112 8000 1.15 N 310 ECP
90 23 93 78 9500 0.64 N 308 ECP 　 110 40 186 186 8000 2 NU 2310 ECP
90 33 129 120 9500 0.94 NU 2308 ECP 　 110 40 186 186 8000 1.75 NJ 2310 ECP
90 33 129 120 9500 0.96 NJ 2308 ECP 　 110 40 186 186 8000 1.8 NUP 2310 ECP
90 33 129 120 9500 0.98 NUP 2308 ECP 　 130 31 130 127 7000 2 NU 410
110 27 96.8 90 8500 1.4 NU 408 　 130 31 130 127 7000 2.05 NJ 410
45 110 27 96.8 90 8500 1.35 NJ408 　 55 90 18 57.2 69.5 8500 0.4 NU 1011 ECP
75 16 44.6 52 11000 26 NU1009 ECP 　 100 21 96.5 95 8000 0.67 NU 211 ECP
85 19 69.5 64 9500 0.48 NU 209 ECP 　 100 21 96.5 95 8000 0.67 NJ 211 ECP
85 19 69.5 64 9500 0.49 NJ 209 ECP 　 100 21 96.5 95 8000 0.69 NUP 211ECP
85 19 69.5 64 9500 0.45 NUP 209 ECP 　 100 21 96.5 95 8000 0.66 N 211 ECP
85 19 69.5 64 9500 0.43 N 209 ECP 　 100 25 114 118 8000 0.79 NU 2211 ECP
85 23 85 81.5 9500 52 NU 2209 ECP 　 100 25 114 118 8000 0.81 NJ 2211 ECP
85 23 85 81.5 9500 54 NJ 2209 ECP 　 100 25 114 118 8000 0.82 NUP 2211 ECP
85 23 85 81.5 9500 55 NUP 2209 ECP 　 120 29 156 143 7000 1.45 NU 311 ECP
100 25 112 100 8500 1 NU 309 ECP 　 120 29 156 143 7000 1.5 NJ 311 ECP
100 25 112 100 8500 1.05 NJ 309 ECP 　 120 29 156 143 7000 1.55 NUP 311ECP
100 25 112 100 8500 0.95 NUP 309 ECP 　 120 29 156 143 7000 1.45 N 311 ECP
100 25 112 100 8500 0.88 N 309 ECP 　 120 43 232 232 7000 2.25 NU 2311 ECP
100 36 160 153 8500 1.3 NU 2309 ECP 　 120 43 232 232 7000 2.3 NJ 2311 ECP
100 36 160 153 8500 1.35 NJ 2309 ECP 　 120 43 232 232 7000 2.35 NUP 2311 ECP

FAQ:

1. What is your the payment condition?

For regular products,No advance payment is needed, you can make 100% payment before shipment accordingly.

For customized products,our payment term normally is 30% of advance, the balance 70% against copy of BOL.

For our long term customers,you can pay 1 month after receiving the good.

2. What is your sales turnover?

Our whole year sales turnover in 2023 to 2024 is 11 million dollars

3. Do you have any certifications?

Yes, We are an IATF16949 certified needle bearings manufacturer since 2011.

4.What about the lead time?

Our production period is 30-45 days

5.What is your production capacity?

We are able to produce over 100 million pieces of bearings per year with different sizes and types
