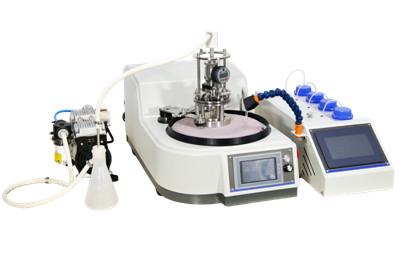

Precision Grinding And Polishing Machine HAP-100U
Precision Grinding And Polishing Machine HAP-100U
Specifications
Brand Name :
HUATEC
Model Number :
HAP-100U
Certification :
ISO，CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
7~15 days after payment
Packaging Details :
in wooden box
Number of grinding and polishing heads :
1
Polishing resolution :
1 micron
Sample tilt angle :
0-10 degrees adjustable
Sample swing speed :
Adjustable
Description

Precision Grinding And Polishing Machine HAP-100U

I, Features
1. This product is used for precision grinding and polishing with high removal accuracy;
2. The sample is vacuum adsorbed, and the sample plate can be used for grinding and polishing 4-inch (HAP-200U: 6-inch) wafers;
3. The sample tilt angle can be adjusted;
4. The sample is gravity-pressurized, and the loading force is continuously adjustable;
5. The sample swings left and right to achieve semi-automatic grinding and polishing;
6. The swing speed of the swing arm is even and adjustable;
7. The swing range of the swing arm is adjustable from 0 to 15 degrees;
8. Adopt independent 1KW high -power motor with large torque. No matter the speed is fast or slow, the torque is large and constant.
9. The grinding and polishing disc has a wide range of speeds, from 5 rpm to 100 rpm ;
10. Full touch screen interface, easy to set grinding and polishing parameters;
11. All grinding and polishing parameters such as rotation speed, grinding and polishing time, rotation direction, etc. are automatically saved and easily called up;
12. Connect and control the droppers of four stations with different abrasives;
II. Technical Parameters
namesay regulation grid
model HAP-100U HAP-200U
Number of grinding and polishing heads 1 2
Sample diameter 3 (option: 4 inch), can be used for grinding and polishing 3 (option: 4 inch) wafers 5 (option: 6 inch), can be used for grinding and polishing 5 (option: 6 inch) wafers
Polishing resolution 1 micron
Sample tilt angle 0-10 degrees adjustable
Sample loading force Continuously adjustable from 0-4 kg
Sample swing speed Adjustable
Swing range of arm 0-15 degrees adjustable
Grinding and polishing disc diameter ( mm) φ300 φ400
Grinding and polishing disc motor power 1Kw
Speed (r/min) 5 -1 00
Rotation direction Counterclockwise/clockwise optional, automatic switching between forward and reverse
Four-speed manual (r/min) V1=5, V2=15, V3=25, V4=50 (user-customizable speed)
Automatic grinding and polishing parameters 64 types ( parameters include: speed, time and grinding disc rotation direction )
Grinding and polishing parameters Users can set and call
Number of dripper units Unit 4
Dripping speed 1-100 ml/min
power supply Voltage: AC220V, Frequency: 50HZ
Overall dimensions ( mm ) 760 x 4 30 x 3 60 (length*width*height)
weight 30 kg

Serial number Part name quantity Part name quantity
1 HAP- 100U Precision Grinding and Polishing Compound 1 unit Vacuum Pump 1 unit
2 Precision grinding jig 1 set Dropper (option) 1 unit
3 Gas washing bottle (including connecting pipe) 1 set Adhesive flocked polishing cloth 300mm 10 pcs
4 Adhesive sandpaper 300mm 180# 10 pcs Adhesive canvas polishing cloth 300mm 10 pcs
5 Adhesive sandpaper 300mm 320# 10 pcs Diamond suspension polishing liquid 1, 3,6 micron, 200 ml 1 bottle each
6 Sandpaper with adhesive backing 300mm 600# 10 pcs Anti-stick disc 300mm 1​
7 Sandpaper with adhesive backing 300mm 1000# 10 pcs Magnetic plate 300mm 1​
8 Adhesive sandpaper 300mm 2000# 10 pcs
9 Anti-stick disc pry bar (used for placing and prying the anti-stick disc) 1​
Technical documents: 1 copy each of product instruction manual, product certificate and warranty card
