Specifications
Brand Name :
Huatec
Model Number :
SYS-B
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs per month
Delivery Time :
3-7 days after payment
Packaging Details :
in carton box
Product name :
Sand Mould Surface Hardness Tester
Model :
SYS-B
Compression stroke :
2.50mm
Maximum load: :
980g
Pressure load :
50g
Head shape and size :
Ball R12.70
Description

Sand Mould Surface Hardness Tester

Product Description

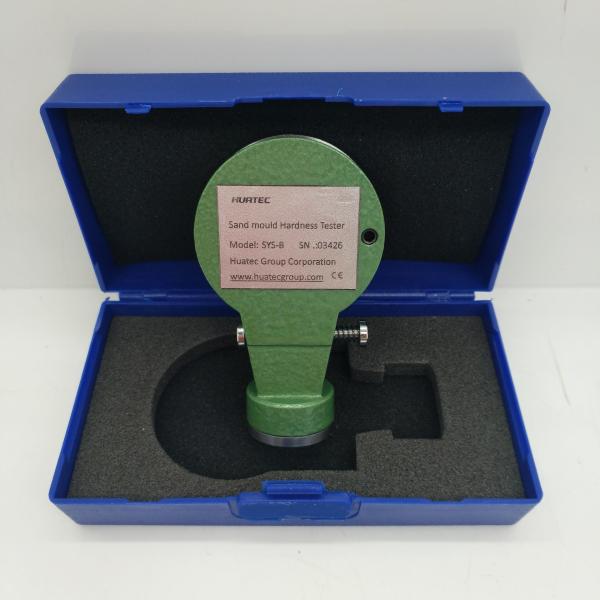

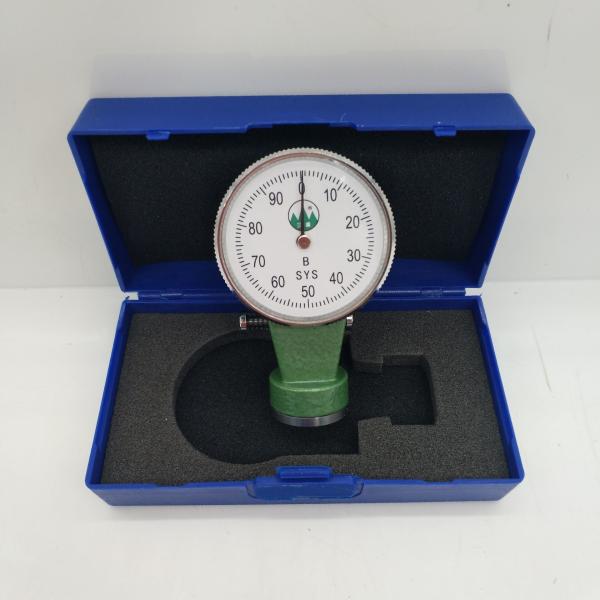

SYS-B Sand Mould Surface Hardness Tester

Features:
It is used to determine the wet sand mould (core) surface hardness, for playing molding process to provide technical parameters. According to the size of the spring force and the stroke is the principle of linear relationship, the size of its stroke through a set of gear, the transmission of the rack by the surface pointer. The hardness of the surface of the sand B Type of unit is (g/mm2), but not in the habit of units but with the hardness to say. Because their values are related and consistent, both large (g/mm2), the corresponding hardness value is also large.

Specifications:
1. Compression stroke: 2.50mm
2. Maximum load: 980g
3. Pressure load: 50g
4. Head shape and size: Ball R12.70
5. Accuracy: When the pointer is at any value, the pressure of the pressure head is allowed to be 5%. When the pointer is returned to the 0 position, the tolerance is 1 degrees.
6. Outline dimension: 90 * 55 * 28mm

Operation:
Adjust the 0 position, when the pointer is not in the 0 position, turn the adjusting ring, so that the pointer to the 0 bit. - use the hardness is pressed on the tested sand plane (hardness of the axis perpendicular to the surface of the sand), the hardness meter gauge plane and the measured sand plane close contact, the pointer stopped at a certain value, press the locking pin locking be locking, read out the determined value, then loosen the lock locking the pointer back to zero. In each test, 5 to 3 times, and then to calculate the average number, both the hardness value of the site.
