Digital Vibration Calibrator HG5026
Digital Vibration Calibrator HG5026
Digital Vibration Calibrator HG5026
Digital Vibration Calibrator HG5026
Digital Vibration Calibrator HG5026
Digital Vibration Calibrator HG5026
Digital Vibration Calibrator HG5026
Digital Vibration Calibrator HG5026
Digital Vibration Calibrator HG5026
Digital Vibration Calibrator HG5026
Specifications
Brand Name :
HUATEC
Model Number :
HG5026
Place of Origin :
China
MOQ :
1
Payment Terms :
Western Union,T/T,Paypal
Packaging Details :
In carton
Frequency :
from 1 to 1280 Hz
Velocity :
40Hz to 320Hz +0.5dB +1digit
40Hz to 320Hz +0.5dB +1digit :
5mm and 8mm probes Range: 0~2.0mm
Warranty :
12 months
Description

Digital Vibration Calibrator HG5026


HUATEC HG5026 is a portable vibration calibrator designed specifically for on-site and laboratory environments, mainly used for verifying and calibrating various vibration testing equipment.


Main purpose
·Calibration object: capable of calibrating vibration accelerometers, velocity sensors, eddy current displacement sensors, and complete vibration measurement instruments.
·Typical scenarios: Widely used in condition monitoring, predictive maintenance, and quality inspection departments.


working principle
This device is essentially a high-precision reference vibration source. It integrates a signal generator, power amplifier, standard sensor, and vibration table into one.


·Generate standard vibration: The internal system generates a standard sine wave signal, driving the vibration table to produce precise mechanical vibration in the frequency range of 1 to 1280 Hz.
·Dual shaft output: the body structure allows the vibration table to generate horizontal or vertical vibration to adapt to the measurement axis direction of different sensors.

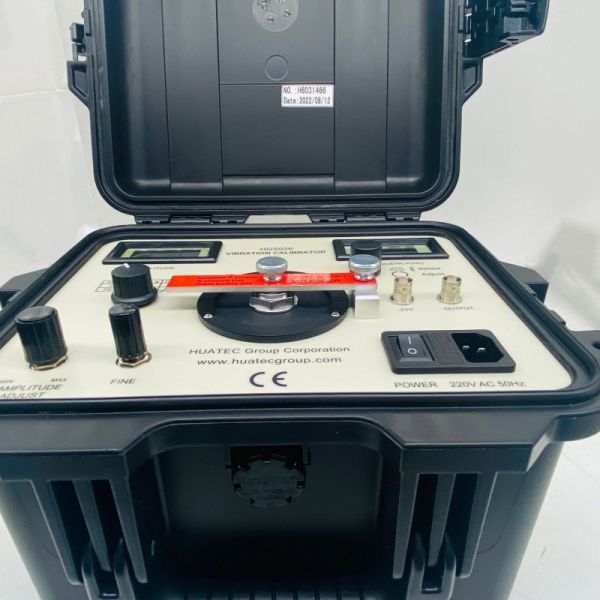

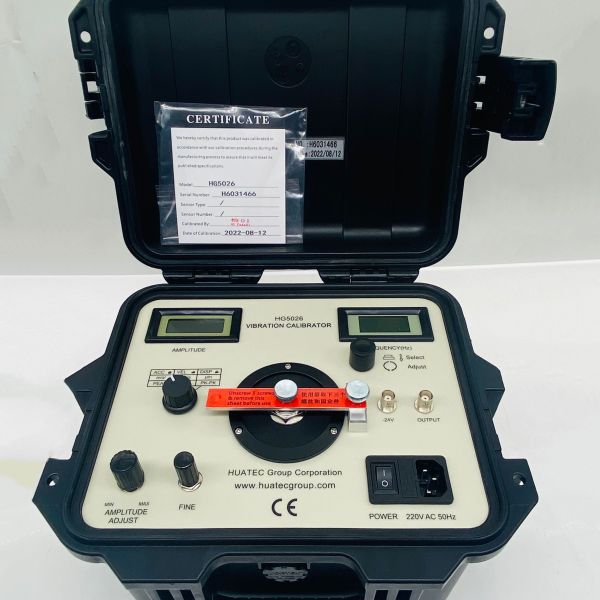

·Value reference: Users can adjust the vibration amplitude through a potentiometer, and the real-time values of acceleration, velocity, and displacement will be directly displayed on the 3 and a half digit digital display screen of the panel as a reference standard for calibration.
·Special feature: It is also equipped with 5mm and 8mm probe kits, specifically designed for calibrating the linearity of eddy current displacement sensors with a range of 0-2.0mm.

Wt


Freq

 <100g <250g <500g
a(m/S2) v(mm/S) d(μm) a(m/S2) v(mm/S) d(μm) a(m/S2) v(mm/S) d(μm)
10Hz 2.5 28 1300 3.5 40 1800 4 45 2000
20Hz 15 85 1900 10 60 1300 5 28 640
40Hz 60 170 2000 35 100 1100 12 35 380
80Hz 100 141 800 40 60 320 14 20 110
160Hz 75 53 150 35 25 70 12 8.5 24
320Hz 50 18 25 30 10 15 10 3.5 5
640Hz 30 5 3 20 3.5 2 6 1 *
1280Hz 23 2 * 10 0.9 * 5 0.4 *

Frequency range & accuracy: 1 to 1280 Hz +0.01%
