Conventional Vibration Rotating and Reciprocating Portable Vibration Data Collector
Conventional Vibration Rotating and Reciprocating Portable Vibration Data Collector
Specifications
Brand Name :
HUATEC
Model Number :
HG-6390
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50sets per month
Delivery Time :
3~7 working days
Packaging Details :
in carton box
Prodcut name :
Portable Vibration Data Collector
Testing range :
Acce: 0.1 ~ 400.0m/s2(peak)
Display :
TFT:2.8”,320×240 pixels with RGB
Data interface :
USB(RS232/RS485),Bluetooth
Description

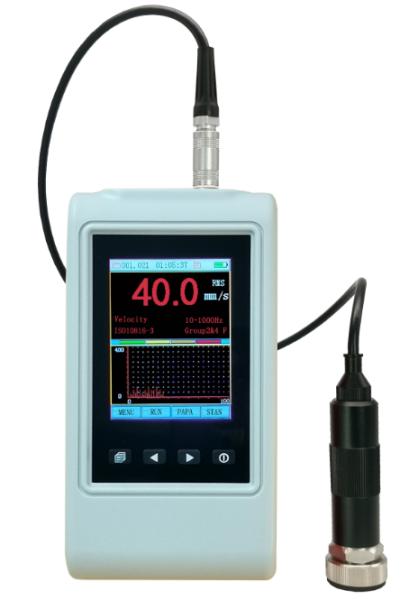

Conventional Vibration Rotating and Reciprocating Portable Vibration Data Collector


HG-6390 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Then by analyzing input signal, results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also records real time vibration curve.


The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can be used not only to test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), but also perform simple failure diagnosis.


Built in iso10816 fault diagnosis standard, which can automatically diagnose the fault of the tested equipment.


The technical specifications of HG-6390 comply with the requirements of GB 13823.3. HG-6390 is widely used in machinery, power, metallurgy, automobile and other industrial fields.

Configuration:

Standard configuration

NO.

Item

Quantity

1

Main unit

1

2

Power Adapters:output:5V/1000mA

1

3

Piezoelectric sensors

1

4

Magnetic seat

1

5

Manual

1

6

Package case

1

Optional configuration

3

Probe

1

4

Communication cable

1

Specifications:

Testing range

(Metric)

Acce: 0.1 ~ 400.0m/s2(peak)

Velo: 0.1 ~ 400.0mm/s(RMS)

Disp: 0.001 ~ 4.000mm(peak-peak)

Freq range

Acceleration: 10Hz ~ 1KHz, 1K Hz ~ 10KHz

Velocity: 10Hz ~ 1KHz

Displacement: 10Hz ~ 500Hz

Data memory

150 ×100 pieces of patrol data

30 ~ 480 pieces of record data

Temp

0℃ ~ 40℃

Tolerance

±5%

Humidity

≤80％RH

Display

TFT:2.8”,320×240 pixels with RGB

Data interface

USB(RS232/RS485),Bluetooth

Overall dimensions

140×76×28

Printer

Wireless Bluetooth printer(Optional)

Weight

180g

Battery

Rechargeable Li battery,2000mAh

Continuous working time

Continuous operation for about 20 hours, Standby for 80 hours
