Connected to Mobile Phone APP Cloud Pen-Type Leeb Hardness Tester
Connected to Mobile Phone APP Cloud Pen-Type Leeb Hardness Tester
Specifications
Brand Name :
HUATEC
Model Number :
RHL-C150
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
5~8 days after payment
Packaging Details :
in carton
Product name :
pen-type Leeb hardness tester
Detection range :
(170-960)HLD，(17.9-69.5)HRC，(19-683)HB，(80-1042)HV， (30.6-102.6)HS，(13.5-101.6)HRB，(25-105)HSD
External dimensions :
148mm×30mm×30mm
Power source :
Rechargeable lithium battery
Description

Connected to Mobile Phone APP Cloud Pen-Type Leeb Hardness Tester

Product Introduction

This instrument is a portable measuring device that can be connected to a mobile phone APP for use. It can quickly, non-destructively and with high accuracy measure the hardness of common metal materials. It can be used both in laboratories and on engineering sites. Through the setting of instrument measurement conditions, the needs of various measurements can be met. It is widely applied in industries such as molds, heat treatment, mechanical processing, pressure vessels, auto parts, aerospace, etc., and is also suitable for universities, research institutes, technical supervision departments, special inspection institutes, etc. It is an essential instrument for non-destructive hardness testing of materials.

Product features

1.The instrument is compact, portable, and features an integrated design without connection cables, which enhances its reliability.

2. It can be clearly displayed even under direct sunlight and is suitable for various lighting conditions, so there is no need to worry about excessive outdoor light.

3. The high-precision measurement circuit ensures the repeatability of the indicated value is ± 0.8% (HLD=800).

4. Supports multiple hardness systems: HL, HV, HRC, HRB, HB, HS.

5. Supports USB direct charging for battery life, which is fast and convenient.

Technical parameters

Measurement direction Supports 360º (vertical downward, oblique downward, horizontal, oblique upward, vertical upward)
Detection range

(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,

(30.6-102.6)HS,(13.5-101.6)HRB,(25-105)HSD
Hardness system Richter (HL), Brinell (HB), Rockwell B(HRB), Rockwell C(HRC), Vickers (HV), Shore (HS), Rolling rail Shore (HSD)
Indication error ±0 . 5%(HLD =800) Indication repeatability 0.8%(HLD =800)
External dimensions 148mm×30mm×30mm Power source Rechargeable lithium battery
Display Industrial-grade 128x64 graphic dot matrix organic light-emitting diode liquid crystal Continuous working hours About 20 hours
Working conditions Operating temperature :10-50℃ Storage temperature: -30 ℃ to 60℃ Relative humidity ≤ 90%

SN. Type of impact device The hardness value of the standard Leeb hardness block Indication error Indication repeatability
1 D 760±30HLD 530±40HLD ±6 HLD±10HLD 6HLD 10 HLD
2 DC 760±30HLDC 530±40HLDC ±6HLDC±10 HLDC 6HLD 10 HLD
3 DL 878±30HLDL 736±40HLDL ±12HLDL 12HLDL
4 D+15 766±30HLD+15 544±40HLD+15 ±12 HLD+ 15 12 HLD+ 15
5 G 590±40HLG 500±40HLG ±12 HLG 12 HLG
6 E 725±30HLE 508±40HLE ±12 HLE 12 HLE
7 C 822±30HLC 590±40HLC ±12 HLC 12 HLC

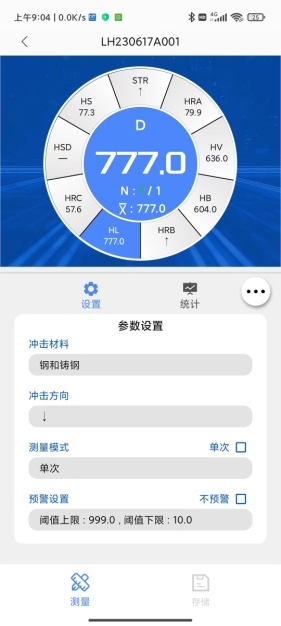

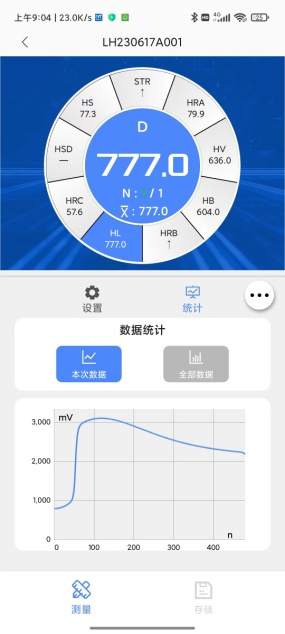

Software interface

Connected to Mobile Phone APP Cloud Pen-Type Leeb Hardness TesterConnected to Mobile Phone APP Cloud Pen-Type Leeb Hardness Tester

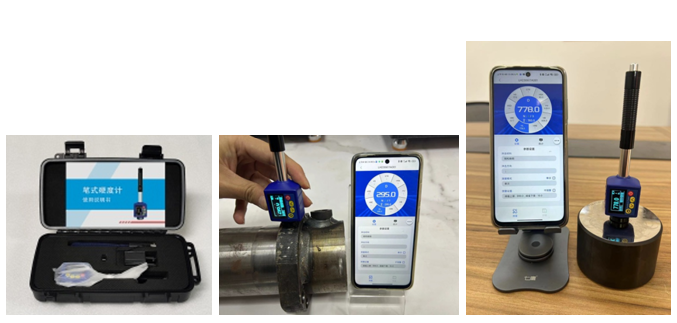

Product real photos

Connected to Mobile Phone APP Cloud Pen-Type Leeb Hardness Tester
