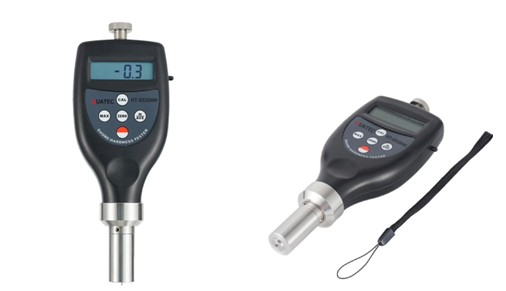

AM Shore Thin Rubber Hardness Tester
AM Shore Thin Rubber Hardness Tester
AM Shore Thin Rubber Hardness Tester
AM Shore Thin Rubber Hardness Tester
Specifications
Brand Name :
HUATEC
Model Number :
HT-6520AM
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500sets per month
Delivery Time :
3~7 days after payment
Packaging Details :
in carton
Product name :
AM Shore Thin Rubber Hardness Tester
Display :
4 bits 10mm
Display Range :
0~100HAM
Measurement Range :
20~90HAM
Description

AM Shore Thin Rubber Hardness Tester

Application

Used to determine the indentation hardness of materials ranging from cellular products to rigid plastics

Features

* AM Shore Hardness tester/Thin rubber hardness tester, suitable for determining the hardness of ordinary vulcanized rubber and its analogues sample (thickness above 1.5mm) of the product, measured hardness values in Shore AM hardness of 20HAM (degree) to 90HAM (degree).

* The rubber. Implementation standard: GB/T 531.1-2008 "vulcanized rubber or thermoplastic rubber pressed into the hardness tester Method Part I:Shore hardness tester method (Shore hardness),the national standard is equivalent to the international standard ISO 7619-1-2004.

* It meets standards: DIN 53505, ISO 868, ISO7619, ASTM D 2240, JIS K7215.

* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement.

* Digital display gives exact reading without guessing or errors.

* Can communicate with PC for recording, printing and analyzing by the optional software and cable for RS232C and or USB interface.

* Automatic power off to conserve power.

* Use operation stand of optional parts can get good accuracy and repetitiveness due to constant measurement force to eliminate the errors caused by artificially applied different force

Specification

Parameters Tested Result/Average Value/Max.Value
Display 4 bits 10mm
Display Range 0~100HAM
Measurement Range 20~90HAM
Suitable for type O ring diameter 5-80mm
Resolution 0.1H
Accuracy ≤±1H
Spring Force 33.04-77.91gf
Press needle stroke 1.25mm
Battery Indicator Low Battery Indicator
Auto Switch Off √
Operating Conditions Temp:0~40ºC Humidity:10~90%RH
Power Supply 4x1.5V AAA Size(UM-4)Battery
Dimensions 176x65x27mm
Weight 490g
Standard Main Unit
Accessories Carrying Case
Operation Manual
Optional Accessories USB Data Cable with Software
Bluetooth Data Adapter with Software
AM Shore Thin Rubber Hardness Tester
