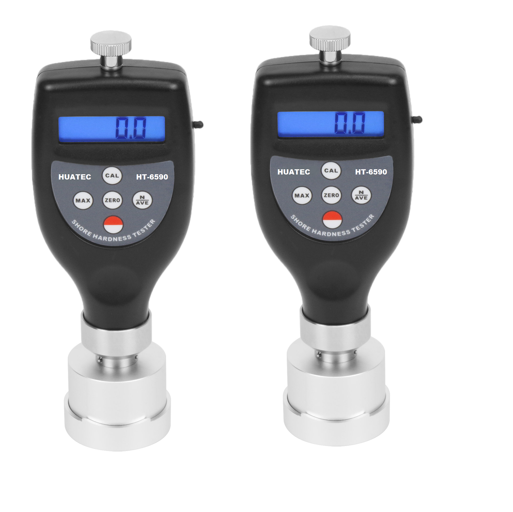

Textile Winding Density Weaving Warp Durometer
Textile Winding Density Weaving Warp Durometer
Specifications
Brand Name :
HUATEC
Model Number :
HT-6590
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500sets per month
Delivery Time :
3~7 days after payment
Packaging Details :
in carton
Product name :
Textile Winding Density Weaving Warp Durometer
Display Range :
0-100H (hardness graduation marks)
Testing Range :
10-90H (hardness graduation marks)
Resolution :
0.1H
Description

Textile Winding Density Weaving Warp Durometer

Features

* Convertible probe, the curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the flat end of the probe is suitable for the bobbin with a diameter greater than 400mm.

* With average calculate, peak value deposit function.

* Apply USB data output to connect with PC.

* Bluetooth data output option.

Principle

The principle used to measure textile hardness is based on measuring the resistance force of the penetration of a ball against the spool under a known spring load. The measuring principle is the same as the Shore A hardness testing.

Application

To measure the winding density (hardness) of textile bobbins, beams, spools, cones, dye packages etc.

Indenter ball 2.5mm is for closely wound bobbins of synthetic, finished fibers and filaments

Indenter ball 5mm is for loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads

Indenter ball 10mm is for very loosely wound bobbins of thick yarns, such as carpet yarns

Specifications

Model HT-6590-2.5 HT-6590-5 HT-6590-10
Parameters Tested value/Mean value/Max.value
Indenter Ball Φ2.5mm Ball Φ5mm Ball Φ10mm
Convertible Probe The curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the plane end of the probe is suitable for the bobbin with a diameter greater than 400mm
Area Of Application For closely wound bobbins of synthetic, finished fibers and filaments For loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads For very loosely wound bobbins of thick yarns, such as carpet yarns
Display Range 0-100H (hardness graduation marks)
Testing Range 10-90H (hardness graduation marks)
Resolution 0.1H
Accuracy ≤±1H
Battery Indicator Low Battery Indicator
Auto Switch Off √
Depth Of Indentation 0-2.5mm
Test Pressure Approx. 12.5N
Measuring Spring Force 0.55-8.065N
Scale Diameter 51mm
Working Face Radius 55mm (when using the curved end of the probe)
Working Face Flat 45mmΦ (when using the plane end of the probe)
Operating Temperature:0~40ºC Humidity:<80%RH
Power Supply 2x1.5V AAA(UM-4)Battery
Dimensions 177x65x45mm
Weight Approx. 285g (Not including batteries)
Standard Accessories Main Unit
Carrying Case
Operation Manual, calibration certificate
Optional Accessories USB Data Cable with Software
Bluetooth Data Adapter with Software
