Specifications
Brand Name :
HUATEC
Model Number :
HG5000
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
3~7 days after payment
Packaging Details :
in carton
Product name :
Vibration Analyzer
Operating Frequency :
159.2 Hz ± 0.5 %
Maximum Load :
150 g
Internal Battery :
1x9V 6F22
Description

Handheld Vibration Calibrator of Vibration Meter Vibration Tester Vibration Analyzer

Detailed Product Description

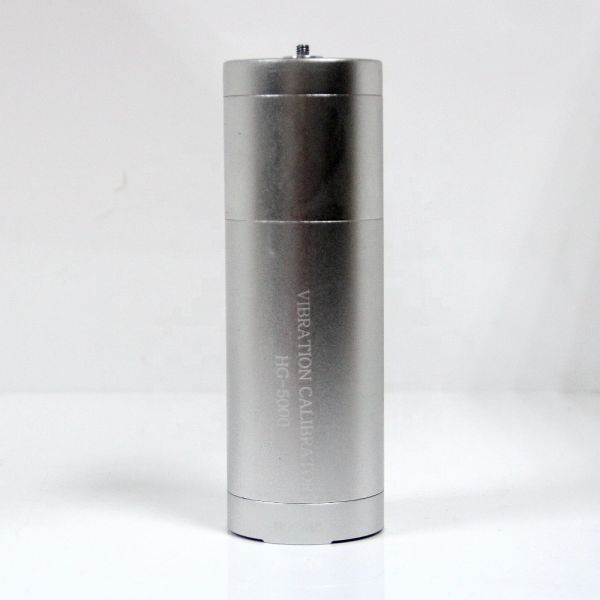

The Vibration Calibrator is a small, self-contained handheld shaker designed for quick and
easy check-ing of accelerometers, vibration monitoring systems and recording systems.
Providing a known and controlled RMS vibration for verification of accelerometers weighing up
to 150g.
*Operates at 159.2 Hz.
*10 mm/s RMS velocity output.
*Drives vibration sensors up to 150g.
*CE compliant.

Operating Frequency 159.2 Hz ± 0.5 %
Acceleration Output 10 m/s² (RMS) ± 3%
Velocity Output 10 mm/s (RMS) ± 3%
Displacement Output 10 um (RMS) ± 3%
Transverse Output < 5%
Distortion < 3%
Maximum Load 152g
Ramp-Up Time < 3 Seconds
Operating Conditions Temperature: -10~40°C
Humidity : < 85 %RH
Internal Battery 1x9V 6F22
Size (Diameter x Height) 56 mm x 200 mm
Weight (with batteries)

900g

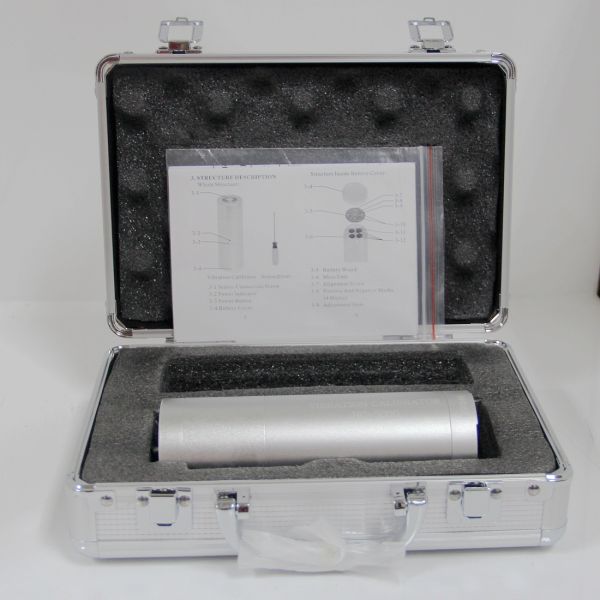

Standard Accessories:
1. Vibration Calibrator Main Unit
2. Carrying Case
3. Manual Book
