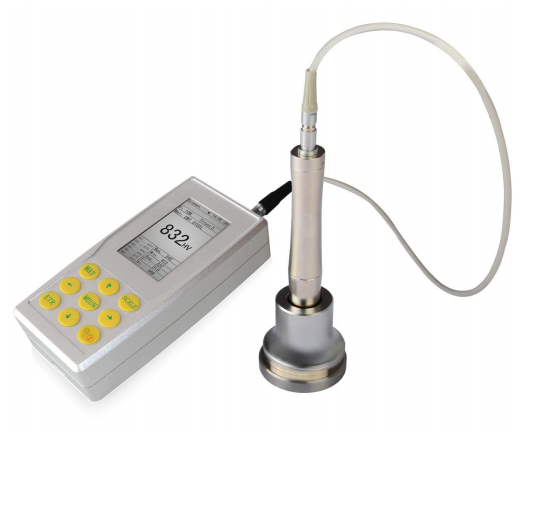

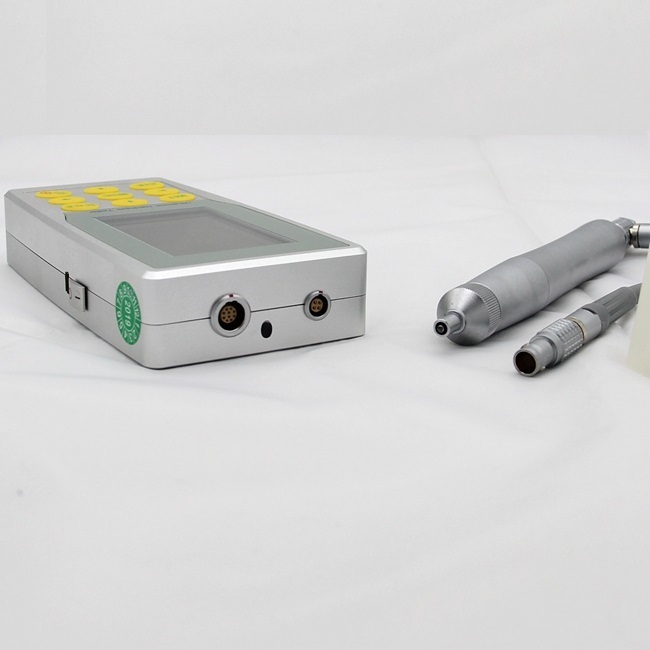

HUH-5E Motorized Probe Ultrasonic Hardness Tester Portable Hardness Testing Machine
HUH-5E Motorized Probe Ultrasonic Hardness Tester Portable Hardness Testing Machine
HUH-5E Motorized Probe Ultrasonic Hardness Tester Portable Hardness Testing Machine
HUH-5E Motorized Probe Ultrasonic Hardness Tester Portable Hardness Testing Machine
Specifications
Brand Name :
HUATEC
Model Number :
HUH-5E
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
10 Sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Black hard plastic box+Outer carton packaging
Hardness Indication :
LCD display
Hardness Scale :
HV、HB、HRC, HLD
Indenter :
136°Vickers Diamond Indenter
Measuring Direction :
Support 360°
Data Storage :
To save 1000-groups of measuring data and 20-groups of calibration data
Operating Environment :
Temperature:-10℃~50℃; Humidity: 30%~80%R.H
Description

HUH-5E Motorized Probe Ultrasonic Hardness Tester Portable Hardness Testing Machine


Features:

●Disadvantages are obvious for the hardness measurement commonly used like Brinell, Rockwell, Vickers, Leeb, etc.

● Rockwell and Brinell with heavy loading force and big indentation, lead to serious destruction on sample surface.

● Vickers apply optical measurement, but only professional technicians can operate smoothly, impossible to measure hardness of heavy work piece, installed machinery and permanently assembled parts.

● Leeb hardness tester apply rebound and indirect method to measure hardness, easily lead to big deviation when convert to Brinell, Rockwell and Vickers scales.

● Ultrasonic hardness tester HUH-5E applies ultrasonic contact impedance method to do comparative hardness measurement for testing pieces, with advantages of high accuracy, efficiency, portable and easy operation.

● Ultrasonic hardness tester HUH-5E is widely used to measure hardness of small forgings, cast material, weld inspection, heat affected zone, Ion-nitride stamping dies and molds, forms, presses, thin walled parts, bearings, tooth flanks, etc.


Specifications:

Loading Force 10N Motorized Probe
Indenter 136°Vickers Diamond Indenter
Measuring Range HB: 85-650;HV 80-1599; HRC 20-70;HRB: 41-100; HRA: 61-85.6
HS: 34.2-97.3;Mpa: 255-2180N/mm
Measuring Accuracy HV:±3%HV; HRC:±1.5HRC; HB:±3%HB; HLD:±5HLD
Measuring Direction Support 360°
Data Storage To save 1000-groups of measuring data and 20-groups of calibration data
Hardness Scale HV,HB,HRC, HLD
Data Display Loading force, Testing-times, Testing result, Average, Maximum,Minimum,Deviation and Conversion scale
Hardness Indication LCD display
Operating Environment Temperature:-10℃~50℃; Humidity: 30%~80%R.H


Features:

● Introduced latest ultrasonic sensor technology

● Obtain accurate hardness value without auxiliary devices

● Support 360° quick measuring

● Excellent human engineering design easy to hold

● Suitable dimension and weight of probe is convenient to control

● Quick and accurate measuring for edge and fixed position of specimen

● Micro indentation, Non- Destructive for specimen

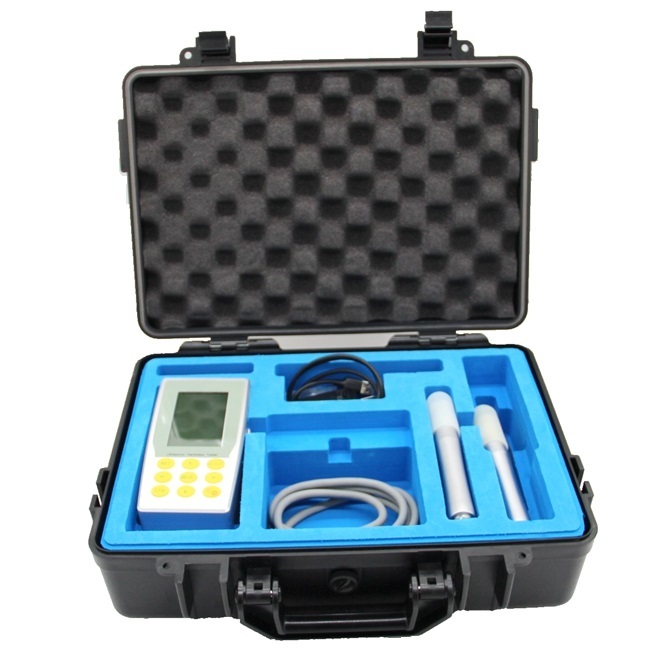

Standard Delivery:

Standard Delivery quantity
quantity
HUH-5E main unit 1 Probe Cable 1
UCI-1000 Motorized Probe 1 Com Cable 1
Standard Rockwell Block 1 USB Cable 1
Anti Vibration Case 1 English Operation Manual 1
Screw 1 Warranty Card 1
Qualification Certificate 1 Packing List 1


Motorized Probe Specifications:

Probe Type UCI-300 UCI-500 UCI-800 UCI-1000
Testing force 3N 5N 8N 10N
Diamter 46mm 46mm 46mm 46mm
Length 197.5mm 197.5mm 197.5mm 197.5mm
Oscillating Rod Diameter 3.7mm 3.7mm 3.7mm 3.7mm
Min weight of test material 0.3kg 0.3kg 0.3kg 0.3kg
Minimum thickness 2mm 2mm 2mm 2mm
