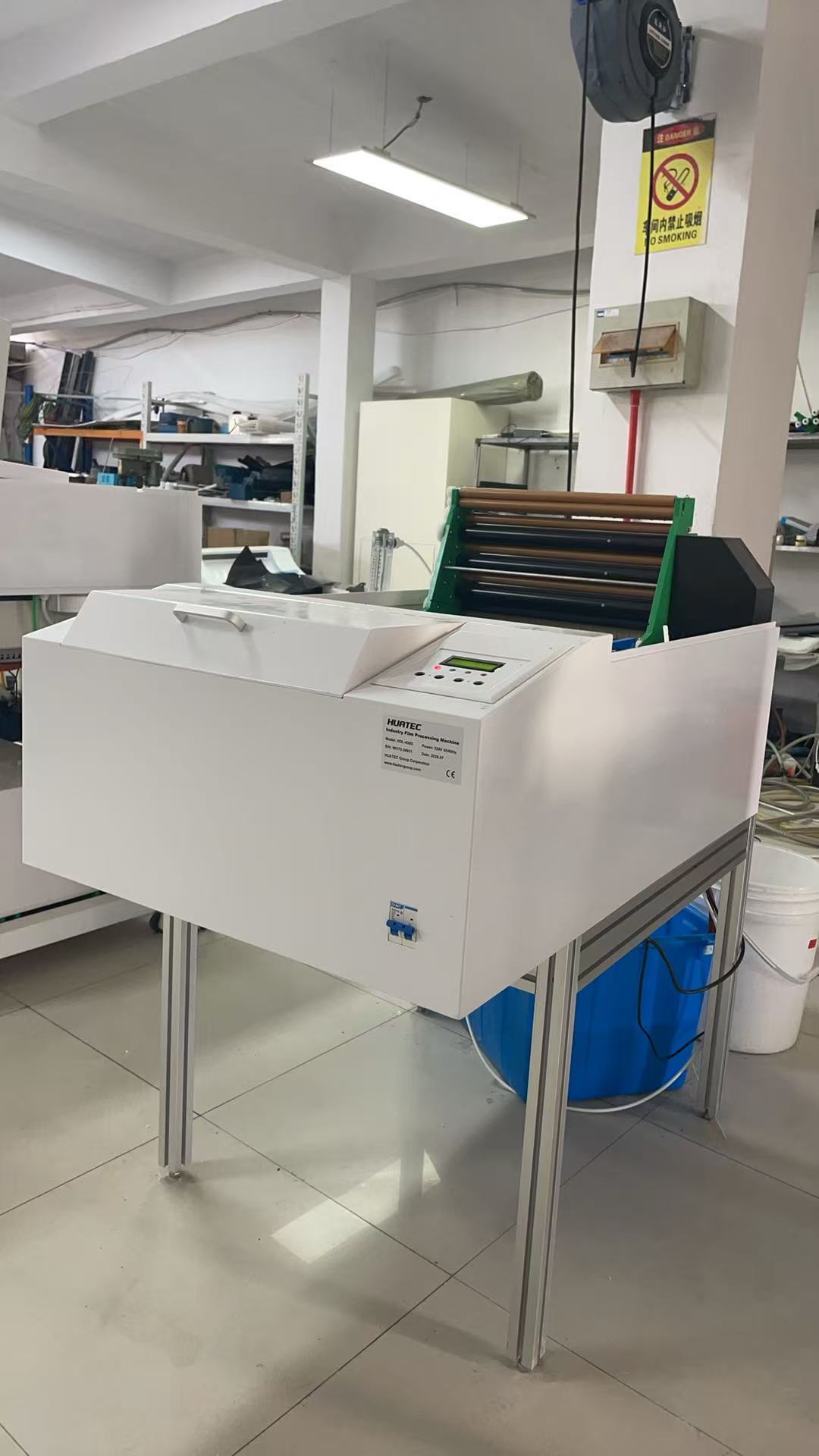

HDL-430D NDT Film Processor with 450mm Max Width, Adjustable Processing Time, and Automatically Replenish Water
HDL-430D NDT Film Processor with 450mm Max Width, Adjustable Processing Time, and Automatically Replenish Water
HDL-430D NDT Film Processor with 450mm Max Width, Adjustable Processing Time, and Automatically Replenish Water
HDL-430D NDT Film Processor with 450mm Max Width, Adjustable Processing Time, and Automatically Replenish Water
Specifications
Film Type :
roll orflat film
Model Number :
HDL-430D
Tank Volume :
Dev. Fix. Wash.13L for each
MOQ :
1set
Packaging Details :
in wooden box
Supply Ability :
50 pcs per month
Power Consumption :
110～240V 10A, 50 or 60Hz
Payment Terms :
L/C,T/T,Western Union
Processing Time :
3.2～16min. (0.1min. adjustable)
Certification :
ISO,CE
Delivery Time :
8~10 days after payment
Film Size :
Minimum: 50×100mm, Max. Width: 450mm
Brand Name :
HUATEC
Feed-in Speed :
155～765 mm/min.
Place of Origin :
China
Description
HDL-430D NDT Film Processor
The HDL-430D NDT Film Processor is designed for film sizes ranging from 50×100mm minimum to 450mm maximum width. This machine is widely used in quality inspection applications across various industries including boilers, shipbuilding, pressure vessels, oil and gas pipeline construction, and aerospace equipment. It has earned widespread praise from customers in the testing industry for its reliability and performance.
Key Features
  • Handles both roll and flat film types
  • Four sets of micro inductive film probes
  • Automatic water replenishment based on film size
  • Adjustable processing time and temperatures
  • Automatic water intake control with standby shutdown
Technical Specifications
Model HDL-430D
Film Size Minimum: 50×100mm, Maximum Width: 450mm
Film Type Roll or flat film
Film Probes 4 sets of micro inductive probes
Processing Time 3.2～16 minutes (0.1 minute adjustable)
Feed-in Speed 155～765 mm/min
Processing Capacity 350×430mm: 22-109 sheets/hour
80×300mm: 110-545 sheets/hour (at 5.4 min processing time)
Tank Volume Developer, Fixer, Wash: 13L each
Water Replenishment Automatic replenishment according to film size: 50～700ml/㎡
Developer Temperature 20～40℃ (0.1℃ adjustable)
Fixer Temperature Automatically adjustable
Dryer Temperature 20～70℃ (5℃ adjustable)
Water Temperature 5～30℃
Washing Control Working: automatic water intake less than 2L/min
Standby: automatic shutdown
Power Consumption 110～240V 10A, 50 or 60Hz
Weight Gross: 128kg, Net: 88kg
Dimensions Approximately: 108×71.5×113cm
