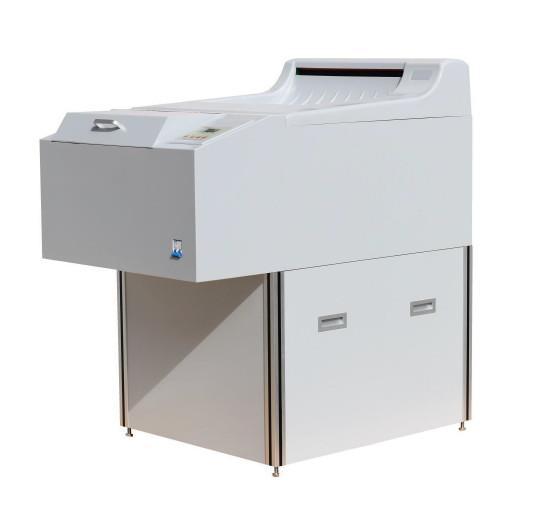

Fast Accurate HDL-430D NDT Film Processor With Processing Time 3.2～16min. 0.1min. Adjustable
Fast Accurate HDL-430D NDT Film Processor With Processing Time 3.2～16min. 0.1min. Adjustable
Fast Accurate HDL-430D NDT Film Processor With Processing Time 3.2～16min. 0.1min. Adjustable
Fast Accurate HDL-430D NDT Film Processor With Processing Time 3.2～16min. 0.1min. Adjustable
Fast Accurate HDL-430D NDT Film Processor With Processing Time 3.2～16min. 0.1min. Adjustable
Fast Accurate HDL-430D NDT Film Processor With Processing Time 3.2～16min. 0.1min. Adjustable
Specifications
Brand Name :
NDT Film Processor
Model Number :
HDL-430D
Place of Origin :
China
Certification :
ISO,ASTM
MOQ :
1
Packaging Details :
Wooden box
Delivery Time :
10-15 days after payment
Payment Terms :
T/T in advance, or paypal, or Western Union
Supply Ability :
500
Film Type :
Roll Orflat Film
Max. Width :
450mm
Product name :
NDT Film Processor
Feed-in Speed :
155～765 Mm/min.
Model :
HDL-430D
Power Consumption :
110～240V 10A, 50 Or 60Hz
Tank Volume :
Dev. Fix. Wash.13L For Each
Weight :
G.W: 128kg, N.W: 88kg
Description

Product Description:

The machine is widely used in the quality inspection of boilers, shipbuilding, pressure vessels, oil and gas pipeline construction, aerospace and other equipment, and is widely praised by customers in the testing industry!

Features:

  • Product Name: NDT Film Processor
  • Power Consumption: 110～240V 10A, 50 Or 60Hz
  • Model: HDL-430D
  • Film probes: 4 Sets Of Micro Inductive Probes
  • Feed-in Speed: 155～765 Mm/min.
  • Dev. Temp: 20～40℃ (0.1℃ Adjustable)

Technical Parameters:

Product Name NDT Film Processor
Processing Time 3.2～16min. (0.1min. Adjustable)
Film Type Roll Orflat Film
Dev. Temp 20～40℃ (0.1℃ Adjustable)
Max. Width 450mm
Tank Volume Dev. Fix. Wash.13L For Each
Power Consumption 110～240V 10A, 50 Or 60Hz
Weight G.W: 128kg, N.W: 88kg
Film Probes 4 Sets Of Micro Inductive Probes
Model HDL-430D

Specification:

Specification
Model: HDL-430D
Film Size: Minimum: 50×100mm, Max. Width: 450mm
Film Type: roll orflat film
Film probes: 4 sets of micro inductive probes
Processing Time: 3.2～16min. (0.1min. adjustable)
Feed-in Speed:155～765 mm/min.
Processing Capacity: 350×430mm 22-109 sheets/hr,80×300mm 110-545 sheets/hr (when 5.4 min processing time)
Tank Volume: Dev. Fix. Wash.13L for each
Supplementary: automatically replenish water according to film size,waterreplenishment 50～700ml/㎡
Dev. Temp.: 20～40℃ (0.1℃ adjustable)
Fix. Temp.:automatically adjustable
Dry Temp.: 20～70℃ (5℃ adjustable)
Water Temp.: 5～30℃
Washing Controlling: when working: automatic water intake less than2L/min, standby: automatic shutdown
Power Consumption:110～240V 10A, 50 or 60Hz
Weight: G.W: 128kg, N.W: 88kg
Dimension: appr.: 108×71.5×113cm3
