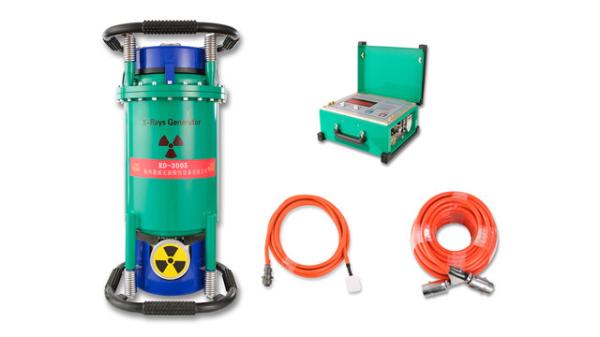

300kv Portable Ceramic X Ray NDT Inspection Equipment Pipeline Welding Checking
300kv Portable Ceramic X Ray NDT Inspection Equipment Pipeline Welding Checking
Specifications
Brand Name :
HUIWEI
Model Number :
RD-3005
Certification :
ISO 9001, CE
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 set
Price :
17000usd/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500sets within one month
Delivery Time :
15working days
Packaging Details :
Standard export plywood package
Product name :
Industrial x ray testing xxg3005,x-ray welding machine ndt,X-ray Inspection Systems,NDT industrial film processing machine,industrial NDT equipment NDT x ray testing machine
Warranty :
12 Months
Usage :
spaceflight industry, welding engineering industry, shipbuilding industry inspection
Power supply :
AC220V±10%
Application :
Industrial field
Function :
steel defect,NDT inspection welding
Color :
Stainless Steel,Silver gray,blue and white
Max.penetration :
50mm(A3 STEEL)
Film type :
Any kinds of industrial film
Voltage :
170-300kv
Exposure time :
5 minutes
Name :
NDT industrial x-ray machine
Tube current :
5mA
Controller Weight :
9kg
Focus Spot :
0.9*0.9
Generator Weight :
28kg
Description

300kv Portable Ceramic X Ray NDT Flaw Detector Radiography Pipeline Welding Checking Machine

300kv Portable Ceramic X Ray NDT Flaw Detector Radiography Pipeline Welding Checking Machine

Introduction

The industrial ndt x-ray equipment use to evaluate the quality of materials and products since the industrial ndt x-ray equipment can be used to show the internal defects of materials,products or welding from a radiographic image on a film. According to the principle of the different absorption of the x-ray for different material depending on the different thickness of the materials.

Application

This industrial ndt x-ray equipment can be widely used in shipbuilding, machinery, manufacturing, aviation, rail, pressure vessels, boilers, oil, chemical, defense industry and other departments for non-destructive testing. Particularly applicable to construction site operation and high-altitude operations.

RD-3005the technical parameters

Project

RD-3005

input

Input power

Single-phase AC150-250V 50/60Hz

Power supply capacity

No less than 3.0 KVA

output

X - ray tube voltage

150~ 300 KVp

X ray tube current

5mA

mA Stability degree

± 1%

Ray tube

Focal size

2.5× 2.5

X-ray irradiation range

40±5°

Ray generator

working pressure

Cooling mode

Insulation way

0.35MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

φ320×640

34

Maximum penetration

Thickness steel A3(mm)

50 mmFe(5 min)

condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5

sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~ +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 4:1 Work and rest,Longest continuous exposure time 15mins

Character:

1.Light weight, portable, easy to take and operate.

2.Time delay function protect operator away from radiation

3.X-ray generator have over-temperature protection

4.Radiating time to cooling time 1:1

5. Checking the software and hardware itself after start the machine

6.Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports

7.Can adjust exposure parameters with keys ( easy operation.)

8.Convenient for repairing and maintenance

9.Can adjust high voltage slowly for protecting X-ray generator

10.Including complete protecting system: over KV, low mA, over mA, over temperature and optical-sound alarming
