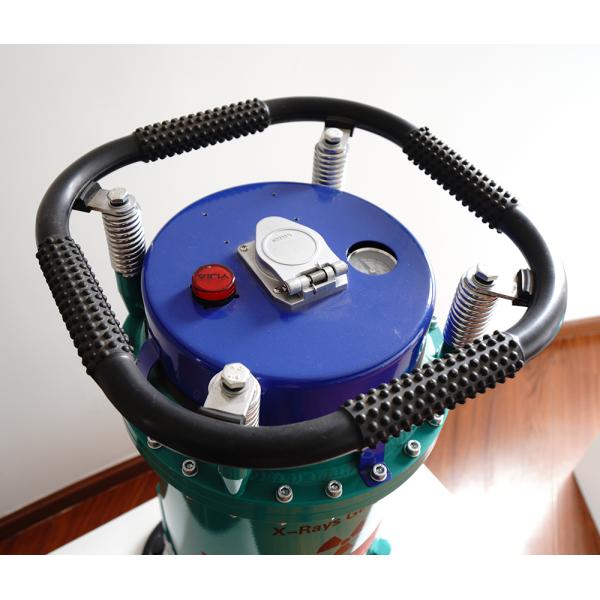

Compact and Lightweight NDT X-ray Machine with 55mm Maximum Penetration and 170-350kV Voltage for Industrial Radiography
Compact and Lightweight NDT X-ray Machine with 55mm Maximum Penetration and 170-350kV Voltage for Industrial Radiography
Compact and Lightweight NDT X-ray Machine with 55mm Maximum Penetration and 170-350kV Voltage for Industrial Radiography
Compact and Lightweight NDT X-ray Machine with 55mm Maximum Penetration and 170-350kV Voltage for Industrial Radiography
Compact and Lightweight NDT X-ray Machine with 55mm Maximum Penetration and 170-350kV Voltage for Industrial Radiography
Compact and Lightweight NDT X-ray Machine with 55mm Maximum Penetration and 170-350kV Voltage for Industrial Radiography
Specifications
Usage :
spaceflight industry, welding engineering industry, shipbuilding industry inspection
Color :
Stainless Steel,Silver gray,blue and white
Exposure time :
15 minutes
Film type :
Any kinds of industrial film
Weight :
34kg
Brand Name :
HUIWEI
Model Number :
RD-1803T
Certification :
ISO 9001, CE
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 set
Price :
17000usd/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500sets within one month
Delivery Time :
15working days
Packaging Details :
Standard export plywood package
Generator Weight :
34kg
Max.penetration :
55mm(A3 STEEL)
Focus Spot :
2.5*2.5
Voltage :
170-350kv
Tube current :
5mA
Application :
Industrial field
Name :
NDT industrial x-ray machine
Power supply :
AC220V±10%
Warranty :
12 Months
Description

PRODUCT DESCRIPTION

Compact and Easy to Carry NDT Inspection Equipment RD-3505 for Chemical Spherical Tanks and Pipelines

Main introduction:

The RD-3505 is a compact, lightweight, and portable industrial X-ray flaw detector featuring strong penetration, time-saving, labor-saving, and highly stable performance, along with a low failure rate. It can operate continuously for 15 minutes without a 1:1 rest period. It is suitable for single-image radiography of double-walled chemical spherical tanks and large-diameter pipelines, improving work efficiency by 50%. The device is lightweight, with a generator weight of only 34 kg and a sophisticated design. This series of devices is available in directional and circumferential formats, with a maximum penetration of 55 mm thick Q235 steel.

RD-3505 the technical parameters

Project

RD-3505

input

Input power

Single-phase AC150-250V 50/60Hz

Power supply capacity

No less than 3.0 KVA

output

X - ray tube voltage

170~ 350 KVp

X ray tube current

5mA

mA Stability degree

± 1%

Ray tube

Focal size

2.5× 2.5

X-ray irradiation range

40±5°

Ray generator

working pressure

Cooling mode

Insulation way

0.35MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

φ320×640

34

Maximum penetration

Thickness steel A3(mm)

55 mmFe(5 min)

condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5

sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~ +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 4:1 Work and rest,Longest continuous exposure time 15mins

FAQ

Q 1:Is your Company the Manufacturer or a Trading Company?

A 1 : We are a manufacturer of NDT x ray equipment in China with experience engineer working over 20 years.

Q 2 : What are the payment options?

A 2 : We accept the following payment methods: T/T, L/C, Western Union, Paypal .

Q 3 : Do you have any products that approved by ISO or CE?

A 3 : Yes, all of our products were strictly approved by ISO and CE, and our products can be imported to the overseas market.
