Digital Radiography Inspection Ndt X Ray Equipment Ceramic X Ray Generator RD-3505
Digital Radiography Inspection Ndt X Ray Equipment Ceramic X Ray Generator RD-3505
Specifications
Brand Name :
HUIWEI
Model Number :
RD-1803T
Certification :
ISO 9001, CE
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 set
Price :
17000usd/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500sets within one month
Delivery Time :
15working days
Packaging Details :
Standard export plywood package
Product name :
Industrial x ray testing RD-3505,x-ray welding machine ndt,X-ray Inspection Systems,NDT industrial film processing machine,industrial NDT equipment NDT x ray testing machine
Warranty :
12 Months
Usage :
spaceflight industry, welding engineering industry, shipbuilding industry inspection
Power supply :
AC220V±10%
Application :
Industrial field
Function :
steel defect,NDT inspection welding
Color :
Stainless Steel,Silver gray,blue and white
Max.penetration :
55mm(A3 STEEL)
Film type :
Any kinds of industrial film
Voltage :
170-350kv
Exposure time :
15 minutes
Name :
NDT industrial x-ray machine
Tube current :
5mA
Weight :
34kg
Focus Spot :
2.5*2.5
Generator Weight :
34kg
Description

PRODUCT DESCRIPTION

DR Digital Radiography System NDT Inspection Ceramic X Ray Generator Industry Equipment RD-3505

Main introduction:

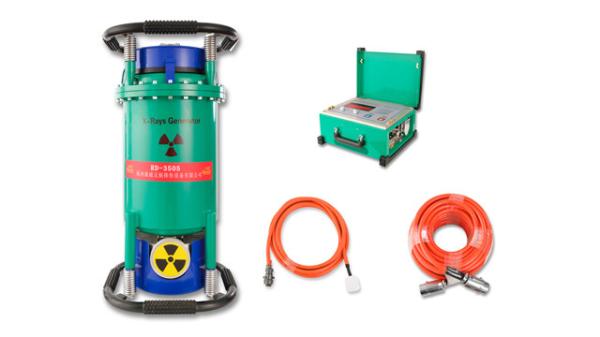

RD-3505 is an industrial X-ray flaw detector with small size, light weight, compact size, easy to carry, strong penetration, time-saving and labor-saving, strong stability, low failure rate, continuous exposure for 15 minutes, no need for 1:1 rest, suitable for chemical spherical tanks, large diameter pipeline double wall single shadow filming, improve work efficiency by 50%. The equipment is easy to carry, the generator weighs only 34kg, and the design is exquisite. This series of equipment is divided into directional and circumferential, and the maximum penetration of Q235 steel thickness is 55mm.

RD-3505 the technical parameters

Project

RD-3505

input

Input power

Single-phase AC150-250V 50/60Hz

Power supply capacity

No less than 3.0 KVA

output

X - ray tube voltage

170~ 350 KVp

X ray tube current

5mA

mA Stability degree

± 1%

Ray tube

Focal size

2.5× 2.5

X-ray irradiation range

40±5°

Ray generator

working pressure

Cooling mode

Insulation way

0.35MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

φ320×640

34

Maximum penetration

Thickness steel A3(mm)

55 mmFe(5 min)

condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5

sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~ +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 4:1 Work and rest,Longest continuous exposure time 15mins

FAQ

Q1. Are you a factory or a trading company?
We are a factory with 50 years of experience.

Q2. What's the MOQ ?
(1). Normally, MOQ is 1 piece. The quantity is depending on the clients’ needs.
(2)According to customer order, the quantity still can be negotiated and we will product immeditaly if we dont have stock.

Q3. What is your principle for the samples ?
No free samples. But we provide 1piece as a sample order for all items.

Q4.Which payment can be acceptable ?
We could accept the payment by T/T, Paypal, Western Union,L/C, etc.

Q5. How about the lead time?
If no stocks, it takes 7 to 15 working days to manufacture after receiving the advance payment.
If in stock, 2-4 working days are possible. But it depends on the exact products and quantity.
