5mA Industrial Field Portable X Ray Flaw Detector With Ceramic X Ray Tube
5mA Industrial Field Portable X Ray Flaw Detector With Ceramic X Ray Tube
5mA Industrial Field Portable X Ray Flaw Detector With Ceramic X Ray Tube
5mA Industrial Field Portable X Ray Flaw Detector With Ceramic X Ray Tube
5mA Industrial Field Portable X Ray Flaw Detector With Ceramic X Ray Tube
5mA Industrial Field Portable X Ray Flaw Detector With Ceramic X Ray Tube
5mA Industrial Field Portable X Ray Flaw Detector With Ceramic X Ray Tube
5mA Industrial Field Portable X Ray Flaw Detector With Ceramic X Ray Tube
Specifications
Brand Name :
HUIWEI
Model Number :
RD-3005
Certification :
ISO 9001, CE
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 set
Price :
19000usd/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500sets within one month
Delivery Time :
15working days
Packaging Details :
Standard export plywood package
Power supply :
AC220V±10%
Generator Weight :
28kg
Function :
steel defect,NDT inspection welding
Color :
Stainless Steel,Silver gray,blue and white
Max.penetration :
50mm(A3 STEEL)
Film type :
Any kinds of industrial film
Exposure time :
5 minutes
Warranty :
12 Months
Application :
Industrial field
Name :
NDT industrial x-ray machine
Tube current :
5mA
Controller Weight :
9kg
Voltage :
170-300kv
Focus Spot :
0.9*0.9
Description

X-ray Ndt Manufacturer Ndt Testing Portable X-ray Flaw Detector with Ceramic X Ray Tube

X Ray NDT Equipment/ NDT Radiographic Testing/NDT Flaw Inspection

NDT radiographic testing is a nondestructive testing (NDT)that uses x ray to examine the internal structure of some materials. The term NDT stands for non-destructive testing. This type of testing is often used in the manufacturing and aerospace industries. NDT X-ray testing can be used to detect a variety of different flaws, including cracks, porosity, and inclusions.

Main uses:

The company's products have been widely used in oil and gas pipelines, long-distance pipelines, boiler pressure vessels, chemical industry, aerospace, military and other fields. It has established long-term strategic cooperative relations with large enterprises such as PetroChina, Sinopec, chemical equipment manufacturing, and aerospace special equipment.

Huiwei adheres to the business philosophy of people-oriented, pragmatic innovation, honest management, and pursuit of excellence, and takes "promoting the cause of non-destructive testing" as the development orientation, and strives to realize "being the most influential industrial X-ray machine in China". We believe that with excellent technology, high-quality products, comprehensive services and unlimited innovation capabilities, we will surely assist customers to realize their dreams.

5mA Industrial Field Portable X Ray Flaw Detector With Ceramic X Ray Tube

RD-3005the technical parameters

Project

RD-3005

input

Input power

Single-phase AC150-250V 50/60Hz

Power supply capacity

No less than 3.0 KVA

output

X - ray tube voltage

150~ 300 KVp

X ray tube current

5mA

mA Stability degree

± 1%

Ray tube

Focal size

2.5× 2.5

X-ray irradiation range

40±5°

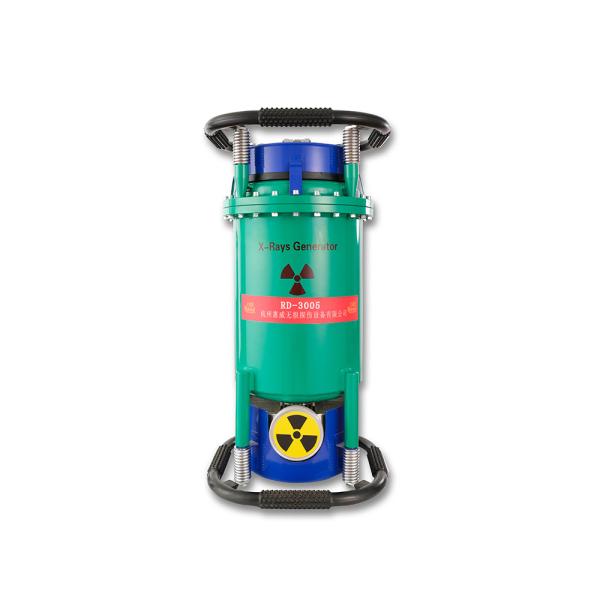

Ray generator

working pressure

Cooling mode

Insulation way

0.35MPa ~ 0.5Mpa

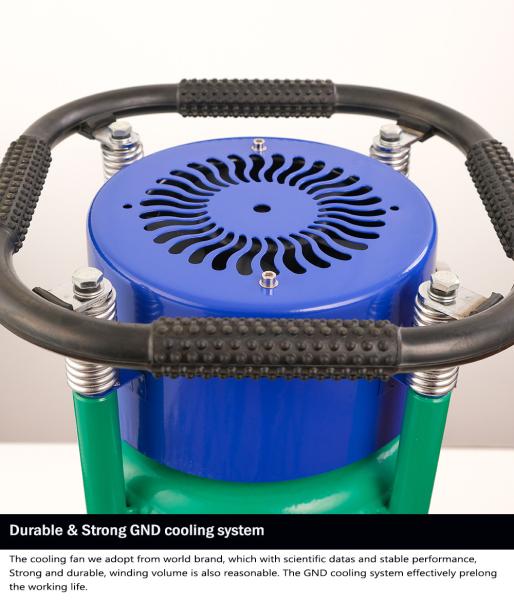

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

φ320×640

34

Maximum penetration

Thickness steel A3(mm)

50 mmFe(5 min)

condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5

sensitivity

superior 2%

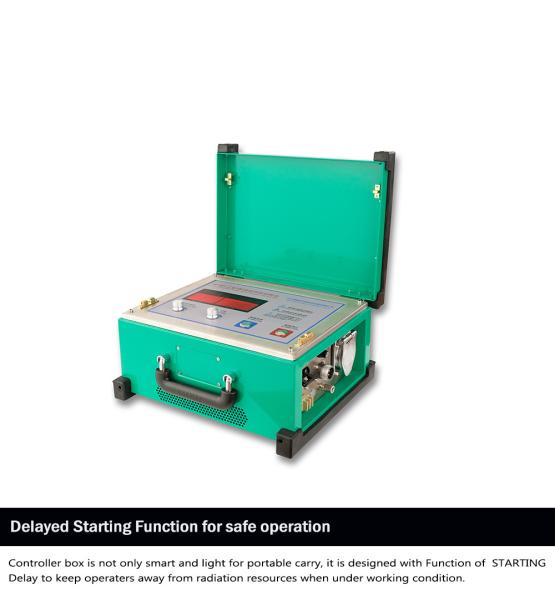

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~ +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 4:1 Work and rest,Longest continuous exposure time 15mins

5mA Industrial Field Portable X Ray Flaw Detector With Ceramic X Ray Tube
