Non-Destructive Testing with industrial x ray inspection for Welding Rt Equipment in Petrochemical Industry

Product Introduction

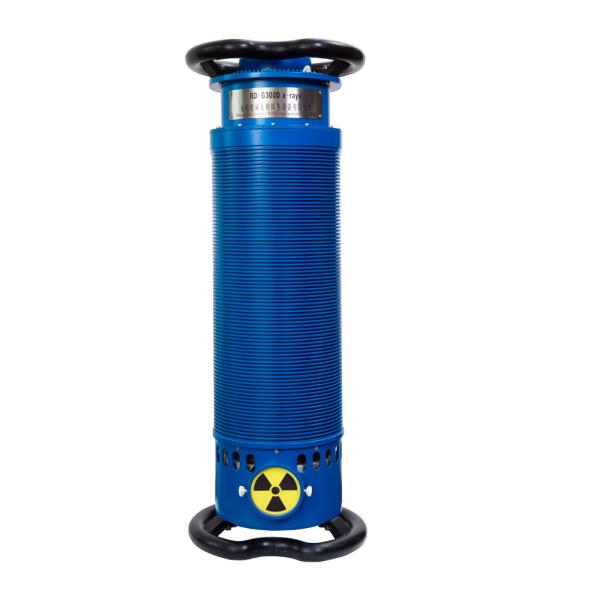

The RD-300LG is a cutting-edge 300kV Industrial Radiography System featuring advanced technological innovation.

Core Technical Parameters

• Dual-Exposure Modes: Adjustable between directional and panoramic exposure configurations.

• Upgraded Tube Technology: Equipped with a 300kV ceramic emitter offering superior thermal stability.

• Flexible Duty Cycles:

◦ Domestic (China): 4:1 operational ratio (40-minute work cycles) for intensive industrial applications.

◦ International: 3:1 ratio adapted to diverse global field conditions.

• Sustained Operation: Enables continuous 30-minute exposures without interruption.

Performance Highlights

• Material Penetration: Capable of inspecting 66mm-thick A3 steel structures, with a peak penetration capacity of 80mm in equivalent materials.

• Safety Integration: Automated door interlock system ensures operator protection during active radiography.

Innovative Engineering Features

• Hybrid Cooling System: Combines SF₆ gas insulation with advanced anode air cooling for efficient thermal management.

• Environmentally Friendly Design:

◦ Zero ozone emission during operation.

◦ Minimized electromagnetic interference for safer work environments.

Industry Applications
Primarily utilized for integrity inspection in critical energy infrastructure, including:

• Cross-country petroleum pipelines

• High-pressure gas transmission networks

Compliance and Adaptability

• Meets GB/T standards for non-destructive testing equipment in the PRC.

• Modular design supports quick reconfiguration for both fixed and mobile applications.

RD-300LG Technical Parameter

Item	Technical Data
	AC Power	AC 220V+/-10%, 50Hz
Output	Tube current	5mA
	High voltage transfer input voltage fluctuation	+/- 1%
X Ray Generator	Cooling method	Force air cooling
	Insulated method	SF6 gas insulation
	Soft working pressure (20ºC)	0.35~0.45Mpa
Working Condition	Temperature	-30-40ºC
	Relative Humidity	<85%
	Altitude	1000m
Max Penetration Condition	Steel	A3(mm)
	Focal length	600m
	Exposure	≤30mAmin
	Film	Double-sided lead foil sensitization
	Darkroom treatment	20+/-2ºC, 5min
	Optic density	D≥2.0
The controller	Size
	Weight
	Timing error	5min +/- 10%
Working Rate	Working & rest 2:1 working rate, the max exposure time 9.5min

Company profile

HUIWEI NDT EQUIPMENT Co.,Ltd, A factory which is a professional NDT Equipment factory established in 1993 certified ISO9001,ISO45001,ISO 14001 and verified by SGS.
We are a factory & enterprise high tech expertise and China TOP 1 quality manufacturing company, our service including reasearch&development, manufacturing, sales and rent, etc..
