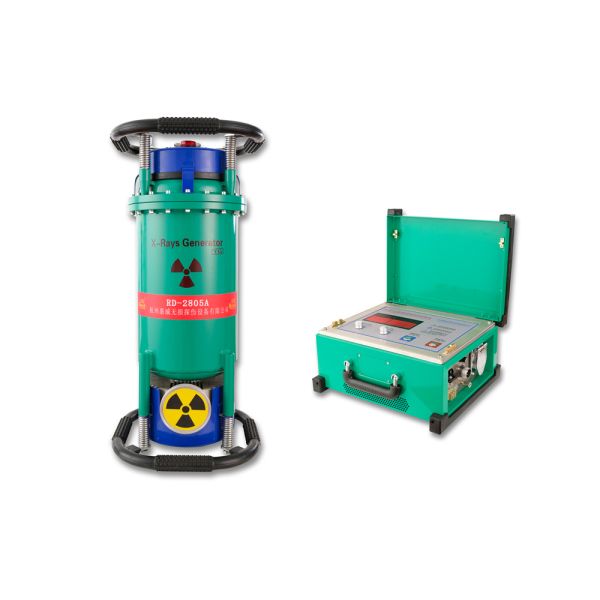

Portable NDT X-ray Machine with 150-280kV Voltage and 40mm Maximum Penetration for Industrial Flaw Detection
Portable NDT X-ray Machine with 150-280kV Voltage and 40mm Maximum Penetration for Industrial Flaw Detection
Specifications
Brand Name :
HUIWEI
Model Number :
RD-2805TH
Certification :
ISO 9001, CE
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 set
Price :
12000usd/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500sets within one month
Delivery Time :
15working days
Packaging Details :
Standard export plywood package
Usage :
spaceflight industry, welding engineering industry, shipbuilding industry inspection
Power supply :
AC220V±10%
Application :
Industrial field
Warranty :
12 Months
Color :
Stainless Steel,Silver gray,blue and white
Function :
steel defect,NDT inspection welding
Film type :
Any kinds of industrial film
Max.penetration :
40mm(A3 STEEL)
Exposure time :
5 minutes
Voltage :
150-280kv
Generator Weight :
27kg
Tube current :
5mA
Name :
NDT industrial x-ray machine
Focus Spot :
1.0*2.4
ControllerWeight :
12kg
Description

RD-2805 Portable Industrial X-ray Flaw Detector | High-Power NDT Equipment for Power Plant & Shipyard Weld Inspection

Product Overview

The RD-2805 is a high-performance portable industrial X-ray flaw detector independently developed by Hangzhou Huiwei NDT Equipment Co., Ltd. As the designated non-destructive testing (NDT) product for China Jian'an's first 1,000 MW power generation unit, it stands as a definitive testament to exceptional reliability and industry-leading technical breakthrough.
This intelligent X-ray system delivers stable high-voltage output with short-duration exposure capabilities, rigorously proven to capture 10,000 radiographic images within a 30-day continuous testing period. Equipped with robust anti-interference technology, fully automated control, and comprehensive safety protection functions, it features a modular design and air-duct cooling system for uninterrupted, reliable operation.
Compact, lightweight, and highly resistant to vibration and impact, the RD-2805 is purpose-built for challenging on-site environments—including large-scale power plant installation, shipyard operations, elevated work, and confined space inspections. Its 2.5:1 work-rest cycle eliminates the need for a 1:1 rest period, boosting radiographic inspection efficiency by 50% while ensuring long-term stability and low failure rates.

RD-2805TH technical parameters

Project

RD-2805TH

input

Input power

Single-phase 50Hz AC 220± 10% V

Power supply capacity

No less than 2.0 KVA

output

X - ray tube voltage

150-280 KVp

X ray tube current

5mA

mA Stability degree

± 1%

Ray tube

Focal size

1.0× 2.4

X-ray irradiation range

360°*25°

Ray generator

working pressure

Cooling mode

Insulation way

0.45MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

Φ280mm´280mm´620mm

27

Maximum penetration

Thickness steel A3(mm)

40 mm Fe(5 min)

condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5

sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~ +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 2.5:1 Work and rest,Longest continuous exposure time 15mins

Key Product Advantages

  1. Proven Extreme Reliability
    Certified as the official NDT solution for 1,000 MW power generation units, with verified performance of 10,000+ radiographic images in 30 days of continuous operation.
  2. Industry-Leading Efficiency
    2.5:1 work-rest cycle with a maximum 15-minute single exposure, eliminating mandatory 1:1 downtime to improve inspection efficiency by 50%.
  3. Intelligent & Safe Operation
    Robust anti-interference capabilities, fully automated control, and complete safety protection systems for worry-free on-site use.
  4. Durable Modular Design
    Modular structure with air-duct cooling system supports continuous operation, with superior resistance to vibration and impact for harsh field conditions.
  5. Portable & Space-Saving
    Ultra-compact, lightweight design enables easy deployment in elevated work, confined spaces, and mobile shipyard/power plant inspections, saving time and labor.
  6. Dual Radiation Modes
    Available in directional (RD-2805A) and circumferential (RD-2805TH) versions to meet diverse inspection needs for welds, pipelines, and pressure vessels.
  7. Powerful Penetration
    150-280kV high-voltage output delivers strong penetration, suitable for medium-thickness steel workpieces up to 45mm.

  9. Our Service & Support

  10. Free professional technical training and on-site operation guidance for global buyers
  11. 24-hour online after-sales consultation and rapid troubleshooting
  12. Customized product configuration for special working conditions and project requirements
  13. Fast delivery with complete export documents (CO, FORM E, etc.)
  14. Long-term after-sales warranty and lifelong maintenance support
  15. OEM/ODM service available for bulk orders
  16. One-stop NDT solution support for global projects
