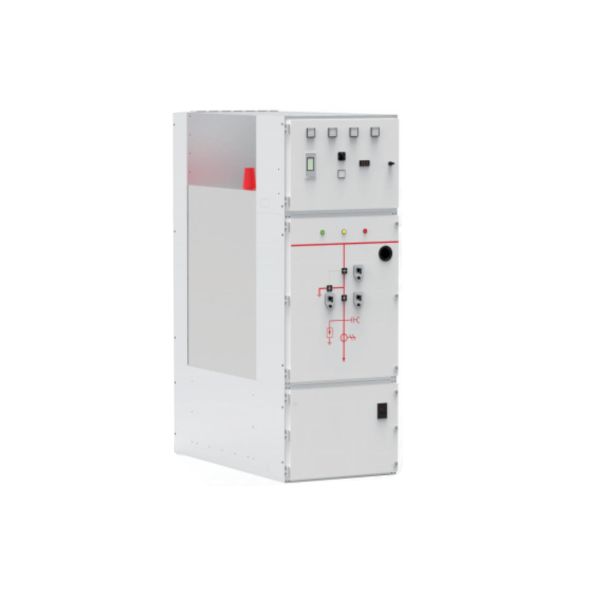

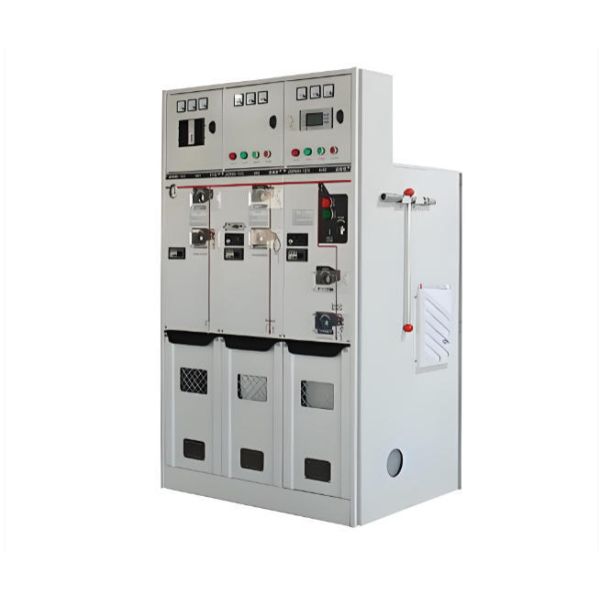

MCXF-40.5 series SF6 gas insulated metal enclosed switchgear (C-GIS)

Product Overview

MCXE-12/24 Eco-friendly Gas lnsulated Metal Enclosed Switchgear (C-GlS) are independently developed by our company. This series of products meets market demand and can use eco-friendly gas insulation or SF6 as the insulation medium for metal enclosed switchgear (C-GlS) to meet the needs of different customers.


The MCXE-12/24 series switchgear has very high safety and reliability, which can ensure the continuous and stable operation of the power system and the personal safety of operators. At the same time, it also has a user-friendly operating interface, making it easy for on-site operators to operate. Rated voltage 12/24kV, rated current 630~3150A, rated breaking current 25~40kA.


MCXE-12, 24 series switchgear adopts modern and innovative switchgear design concept, with a variety of functional modules to choose from. Commonly used functional modules are L, F, D, R, P, M, etc. Other modules can be customized according to the requirements of the primary system diagram when necessary. These functional modules can be installed on-site. Routine tests are carried out on all modules prior to shipment. No special tools are required to install these devices.

Product Features

Flexible Combination
This product is designed with eco-friendly as/SF6 universal solution, safe and reliable, meeting market demand.
Maintenance Free
The high-voltage conductor is completely sealed, with incoming and outgoing lines through insulating bushings, maintenance-free for the life cycle
Miniaturization
Compact structure, reducing the footprint by about half compared to traditional switchgear.
Wide Application
lt can be used in high-altitude and humid coastal areas.

Parameters

Rated voltage kv 12 24
Rated current A 630, 1250, 2500, 3150
3 Rated frequency HZ 50
4

Rated power

frequency withstand

voltage(1min)

Phase-to-phase and

Phase-to-ground

 kv 42 65
lsolation fracture kv 48 79
5

Rated lightning

impulse voltage

(1.2/50ms)

Phase-to-phase and

Phase-to-ground

 kv 75 125
Fracture kv 85 145
Main circuit temperature rise A 1.1*Ir
Rated short-time breaking current KA 25, 31.5, 40
Rated short-circuit closing current KA 63, 80, 100
Rated short-time withstand current KA 25, 31.5, 40
Rated peak withstand current KA 63, 80, 100
Rated pressure Minimum functional pressure MPa 0.03/ 0
Gas tank protection rating / IP67
Shell protection rating / IP4X
Rated operating voltage v DC48, DC110, DC220
Rated auxiliary voltage V AC220

Overall dimensions (W★D★H)

mm

 600*1250*2250 (1250A)
800*1600*2250 (2500A)
900*1600*2250 (3150A)
