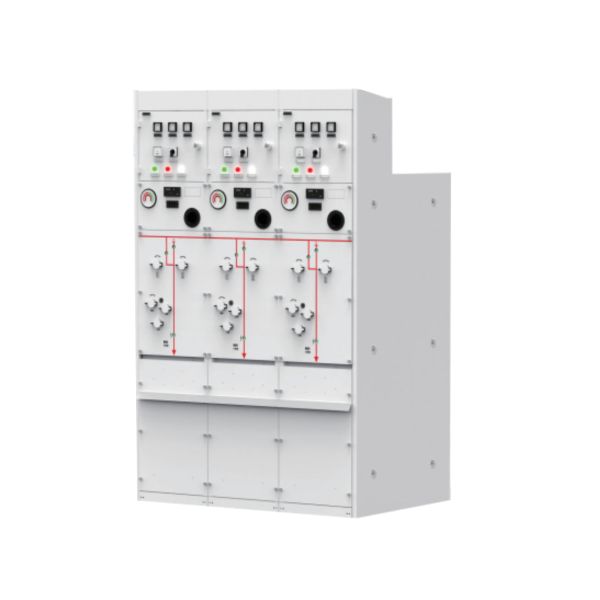

MEFG-12 ECO-FRIENDLY GAS INSULATED RING MAIN UNIT
MEFG-12 ECO-FRIENDLY GAS INSULATED RING MAIN UNIT
Specifications
Brand Name :
MacweyTek
Model Number :
MEFG-12
Certification :
IEC
MOQ :
1 PC
Price :
$800
Payment Terms :
Western Union, T/T, L/C
Delivery Time :
12 working days
Packaging Details :
Wooden case
Description

MEFG-12 ECO-FRIENDLY GAS INSULATED RING MAIN UNIT

The MEFG series eco-friendly gas ring main unit is a gas switchgear independently developed by Macwey Technology. It uses a safe and eco-friendly mixed gas instead of SF6 as the insulation medium in the gas box to solve the problem of SF6 gas leakage pollution. It has a high level of operational safety and is used as the core unit in the distribution network.

Product Features


* Eco-friendly


* Maintenance Free

* Higher Reliability and Security


* No Partition/Solid Seal Design

Technical Data

Model NO.
MEFG-12
Voltage Level
High Voltage
Installation
Removable
Structure
Floorstanding
Current
AC
Rated Frequency
50Hz / 60Hz
Rated Current
630A / 1250A
Rated Short-Circuit Breaking Current
20ka / 25ka
Rated Short-Time Withstand Current
20ka / 25ka (4s)
Rated Peak Withstand Current
50ka / 63ka
Insulation Medium
clear air
Protection Class
Gas Tank IP67, Cabinet Body IP4X
Ambient Temperature
-40℃ ~ +40℃
Altitude
≤ 2000m
Control Voltage
AC/DC 220V
Mechanical Life
≥ 10, 000
Transport Package
Standard Export Wooden Box with Pallet
Specification
customized
Trademark
MacweyTEK
Origin
Ningbo, China
HS Code
8537209000
Production Capacity
1000
