100GHz Low Loss High Isolation AWG DWDM Module for Telecommunications and Optical Networking
100GHz Low Loss High Isolation AWG DWDM Module for Telecommunications and Optical Networking
100GHz Low Loss High Isolation AWG DWDM Module for Telecommunications and Optical Networking
100GHz Low Loss High Isolation AWG DWDM Module for Telecommunications and Optical Networking
100GHz Low Loss High Isolation AWG DWDM Module for Telecommunications and Optical Networking
100GHz Low Loss High Isolation AWG DWDM Module for Telecommunications and Optical Networking
Specifications
Brand Name :
HJY
Model Number :
AWG-40/48
Certification :
CE, ROHS, FCC ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
1~999
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
100,000 pcs
Delivery Time :
5~8 working days
Packaging Details :
Roll, Neutrial Packing or with OEM LOGO
Output Amplitude Range :
-6 dBm to +10 dBm
Frequency Range :
1 MHz to 20 GHz
Output Flatness :
±0.5 dB
Output Accuracy :
±0.2 dB
Sampling Rate :
65 GSa/s
Output Impedance :
50 Ohm
Resolution :
14 bits
Description
100GHz Low Loss AWG DWDM Module High Isolation for Telecommunications Networking and Optical Communication
HJY’s AWG-driven DWDM WDM Unit: Efficiently multiplexes/demultiplexes multiple wavelengths (100GHz spacing) with high isolation & low insertion loss, tailored for passive telecommunications networking and metro access systems.
Engineered for metro access applications, HJY’s passive DWDM WDM Module adopts advanced AWG technology, multiplexing/demultiplexing 100GHz-spaced wavelengths reliably for point-to-point/ring telecommunications and networking infrastructure.
No electrical power, software or temperature control needed! HJY’s athermal AWG DWDM Mux/Demux offers exceptional reliability, ultra-low loss & high isolation—ideal for 100GHz optical communication and telecommunications networking systems.
Key Features
  • Low insertion loss for optimal signal transmission
  • High isolation between channels
  • Low Polarization Dependent Loss (PDL)
  • Compact, space-saving design
  • Excellent channel-to-channel uniformity
  • Wide operating wavelength range
  • Broad operating temperature: -20°C to 70°C
Applications
  • DWDM systems and networks
  • PON (Passive Optical Network) infrastructure
  • CATV transmission links
  • Fiber optical amplifiers
  • Wavelength routing systems
Technical Specifications
Parameter Unit Specifications
ITU Band GHz ITU, C-band
Channel Spacing GHz 100
Number of channels
40CH | 48CH
Wavelength accuracy nm 0.05 Max
Insertion Loss dB 3.5 | 4.0 Max
-1dB passband nm 0.3 Min
-3dB passband nm 0.5 Min
Isolation - Adjacent Channel dB 25 Min
Isolation - Non-adjacent Channel dB 30 Min
Total Crosstalk dB 23 Min
Ripple in Passband dB 0.75 Max
Polarization Dependent Loss dB 0.5 Max
Uniformity dB 1.5 Max
Directivity dB 50 Min
Return Loss dB 45 Min
Polarization Mode Dispersion ps 0.5 Max
Power Handling mW 300 Max
Fiber Type
Corning SMF-28 / SMF-28e or customize
Operating Temperature °C 5~70
Storage Temperature °C -40~85
Package Weight
0.5kg
Dimensions mm (L)120*(W)70*(H)12.7
Note: Specifications include connectors.

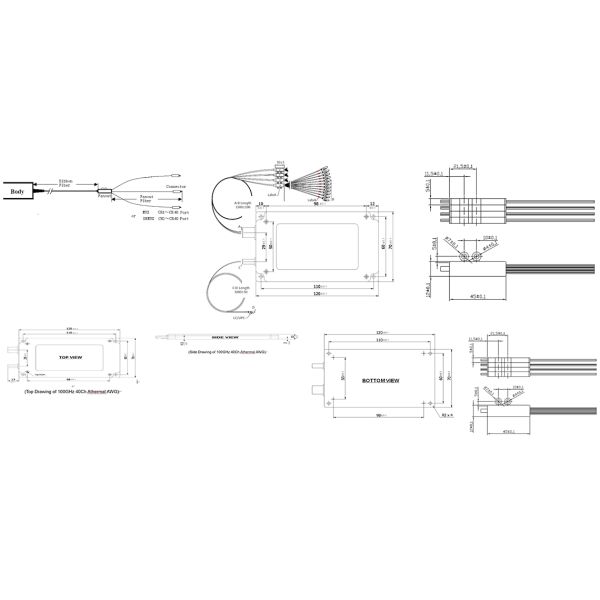

Mechanical Drawings
The packaged dimensions are 120mm × 70mm × 10mm for Mux/Demux modules.

100GHz Low Loss High Isolation AWG DWDM Module for Telecommunications and Optical Networking

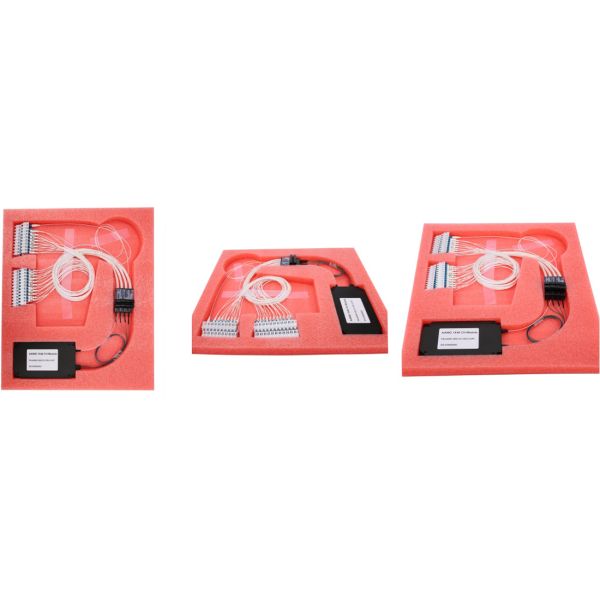

Packing:

100GHz Low Loss High Isolation AWG DWDM Module for Telecommunications and Optical Networking

Order information

AAWGM xx x x x xx xxx x x

Package Module Type Channel Space Pass band Profile Channel Number Start Channel Com Pass
A=Athermal
A=Array
W=Wavelength
G=Grating
M=Module		 1U=1U
2U=2U
ST=Box		 M=Mux
D=Demux
1=Mux and Demux		 1=100GHz
2=50GHz		 F=Flat-top
G=Gauss		 32=32
40=40
48=48		 C17=C17
C21=C21		 0=None
1=FC/UPC
2=FC/APC
3=SC/UPC
4=SC/APC
5=LC/UPC
6=LC/APC		 0=None
1=FC/UPC
2=FC/APC
3=SC/UPC
4=SC/APC
5=LC/UPC
6=LC/APC
