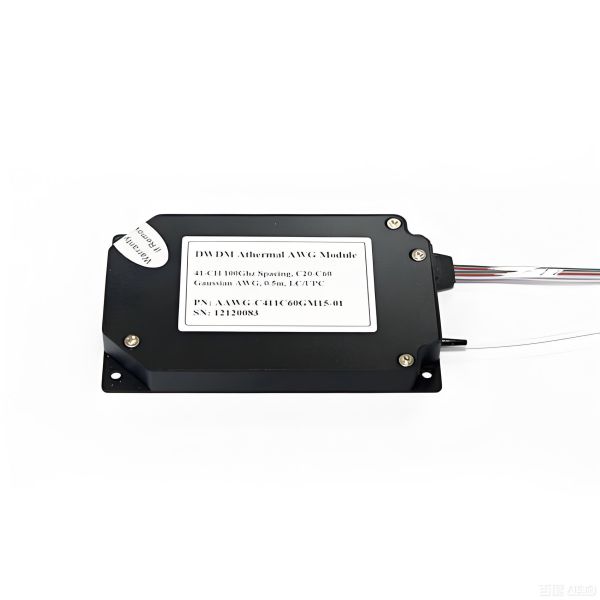

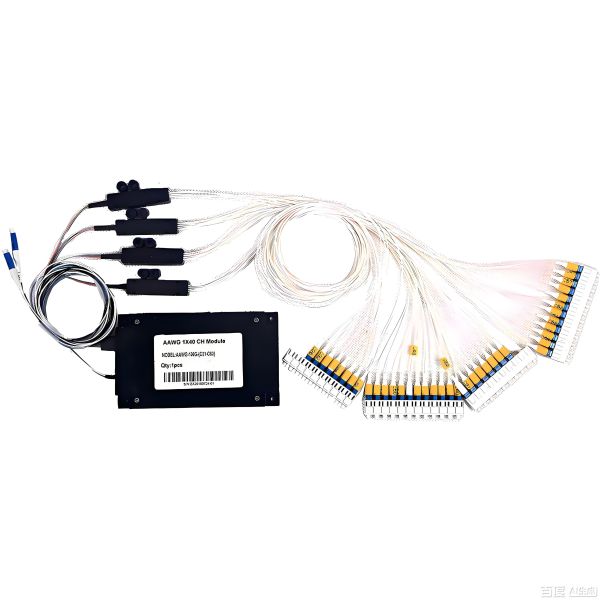

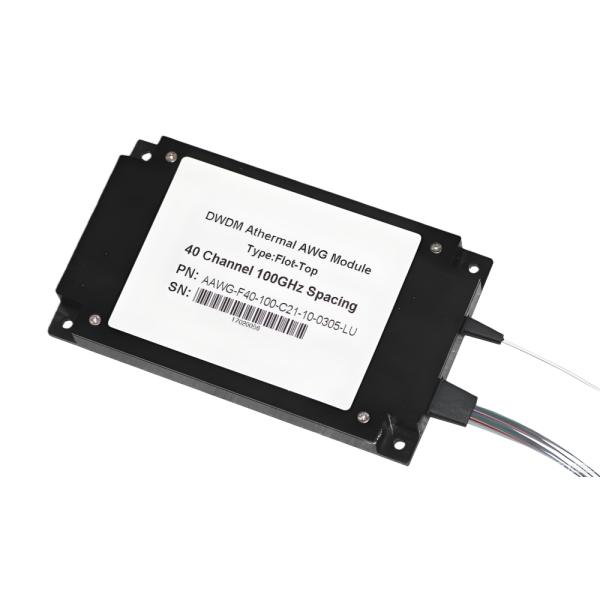

AWG Module DWDM Series Multiplexer Demultiplexer Supporting Multiple Wavelengths with 100GHz Channel Spacing for Optical Communication

HJY’s Wavelength Division Multiplexer (WDM) is based on AWG technology. This proven technology offers wide channel bandwidth, flexible channel configuration, low insertion loss, and high isolation. This DWDM series modules are passive optical multiplexer/demultiplexer designed for metro access applications that represent the state of the art in fiber optics design. This Mux/Demux module multiplexes and demultiplexes multiple DWDM wavelengths of 100GHz channel spacing into a ring or point-to-point network, ideal for telecommunications and networking.

HJY’s Dense Wavelength Division Mux/Demultiplexer Athermal Arrayed Waveguide Grating(AAWG) Modules are part of a series of high performance products based on silica-on-silicon planar technology and a unique athermal packaging design requiring no electrical power, software or temperature control for a completely passive DWDM solution. This product range offers a combination of very low loss and high channel isolation along with long term reliability .Each module can perform Mux and Demux functions. Both C- and L-band devices are available with flat top spectral response. Custom frequency grids, fiber types and connector options are also available

Features
  • Low insertion loss
  • High isolation
  • Low PDL
  • Compact design
  • Good channel-to-channel uniformity
  • Wide operating wavelength
  • Wide operating temperature: -20 to70℃
Applications
  • DWDM system
  • PON networks
  • CATV links
  • Fiber optical amplifier
  • Wavelength routing
Product Parameters
Parameter Unit Specifications
ITU Band GHz ITU, C-band
Channel Spacing GHz 100
Number of channels
40CH 48CH
Wavelength accuracy Max nm 0.05
Insertion Loss Waves Max dB 3.5 4.0
-1dB passband Min nm 0.3
-3dB passband Min nm 0.5
Isolation Adjacent Channel Min dB 25
Non-adjacent Channel Min dB 30
Total Crosstalk Min dB 23
Ripple in Passband Max dB 0.75
Polarization Dependent Loss Max dB 0.5
Uniformity Max dB 1.5
Directivity Min dB 50
Return Loss Min dB 45
Polarization Mode Dispersion Max ps 0.5
Power Handling Max mW 300
Fiber Type
Corning SMF-28 / SMF-28e or customize
Operating Temperature °C 5~70
Storage Temperature °C -40~85
Package Weight
0.5kg
Dimensions mm (L)120*(W)70*(H)12.7

Note: 2>Specified with connectors.

Mechanical Drawings

The packaged size is 120mm X 70mm X 10mm for Mux/Demux.
