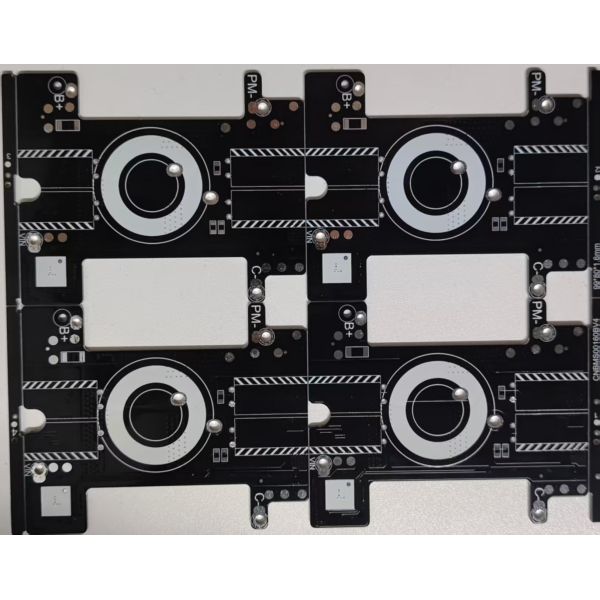

Custom Double Sided PCB with UL 94V-0 Certification for Quick Prototyping Using High Tg FR-4 Material
Custom Double Sided PCB with UL 94V-0 Certification for Quick Prototyping Using High Tg FR-4 Material
Specifications
Brand Name :
Xingqiang
Model Number :
As Per Customer's Model
Place Of Origin :
China
Certification :
ISO 9001 / ROHS /UL / IATF 16949 (automotive)
MOQ :
Sample,1 Pc(5 Square Meters)
Price :
Based On Gerber
Packaging Details :
As Per Customer's Request
Delivery Time :
NA
Payment Terms :
T/T,Western Union
Supply Ability :
100000㎡/Month
PCB Type :
Double Sided PCB
Routing :
0.1Mm
DK :
4.2-4.6
Mini Line Width :
0.076mm
Board Thicknes :
0.2-5.0mm
Max Board Size :
528*600Mm
Material :
High Tg FR-4
Solder Mask :
Black or Customized
PCB Standard :
IPC-A-600F, IPC-6012F
Surface Finished :
Hasl,OSP,Lead Free,ENIG
Hole Size Tolerance :
PTH ±0.075, NTPH ±0.05
Layer :
2-Layer,4-Layer,6-Layer,8-Layer or 8L+
Description
Custom Double Sided PCB UL 94V-0 Certified Quick Prototyping for Power Projects
High Precision Custom Printed Circuit Board
Xingqiang Circuit Board Technology Co., Ltd. specializes in custom PCB manufacturing, offering 1-30 layer rigid boards, HDI, heavy-copper, and aluminum PCBs with FR-4, metal core, or high-frequency materials. Options include Black Solder Mask (Black Oil), ENIG, HASL, and OSP finishes, compliant with RoHS, UL, and IPC standards. With decades of expertise, in-house production, and strict quality control, we deliver reliable, high-precision boards for consumer electronics, industrial controls, automotive, and communications. We support prototyping to mass production with fast turnaround and competitive pricing, your trusted partner for custom PCB solutions.
Technical Specifications
Parameter Specification
Product Name Double Sided PCB
Layer 2 Layers (1-30)
Soldermask Green / White / Black / Blue / Yellow / Red
Shipping Method By Air, DHL / FedEx / UPS / TNT
Min Line Width 0.076mm
Minimum Trace Spacing 3 Mil
Min Hole Size 0.1mm
Copper Overall 0.5-5oz
Quote Basis Gerber Files
Regular Thickness 1.6mm, 1.2mm, 1.0mm, 0.8mm, 0.6mm, 0.4mm, 0.2mm
Frequently Asked Questions
Q1: What brand manufactures the Double Sided PCB?
A1: The Double Sided PCB is manufactured by the brand Xingqiang.
Q2: Can I order a custom model for the Double Sided PCB?
A2: Yes, the model number is as per the customer's model specifications.
Q3: What certifications does the Double Sided PCB have?
A3: This product is certified with ISO 9001, ROHS, UL, and IATF 16949 (automotive) standards.
Q4: What is the minimum order quantity for the Double Sided PCB?
A4: The minimum order quantity is 1 piece or a sample, with a minimum size of 5 square meters.
Q5: How is the pricing determined for the Double Sided PCB?
A5: The price is based on the Gerber file provided by the customer.
Q6: What payment methods are accepted for purchasing the Double Sided PCB?
A6: Payment can be made via T/T (Telegraphic Transfer) or Western Union.
Q7: How are the Double Sided PCBs packaged?
A7: Standard packaging usually involves vacuum sealing combined with individual bubble wrap or anti-static bags, further protected by reinforced cardboard boxes to ensure transportation safety.
Q8: What is the monthly supply capacity for the Double Sided PCB?
A8: The supply ability is up to 100,000 square meters per month.
Custom Double Sided PCB with UL 94V-0 Certification for Quick Prototyping Using High Tg FR-4 Material
Factory Showcase
Custom Double Sided PCB with UL 94V-0 Certification for Quick Prototyping Using High Tg FR-4 Material
PCB Quality Testing
Custom Double Sided PCB with UL 94V-0 Certification for Quick Prototyping Using High Tg FR-4 Material Custom Double Sided PCB with UL 94V-0 Certification for Quick Prototyping Using High Tg FR-4 Material
Certificates and Honors
